Cistern-less direct flush for WCs

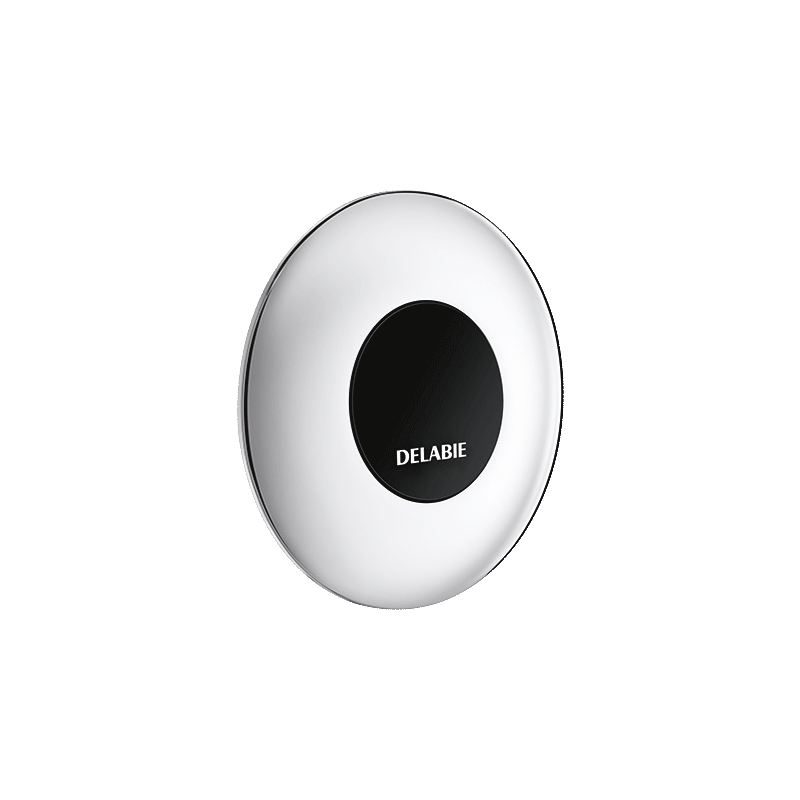

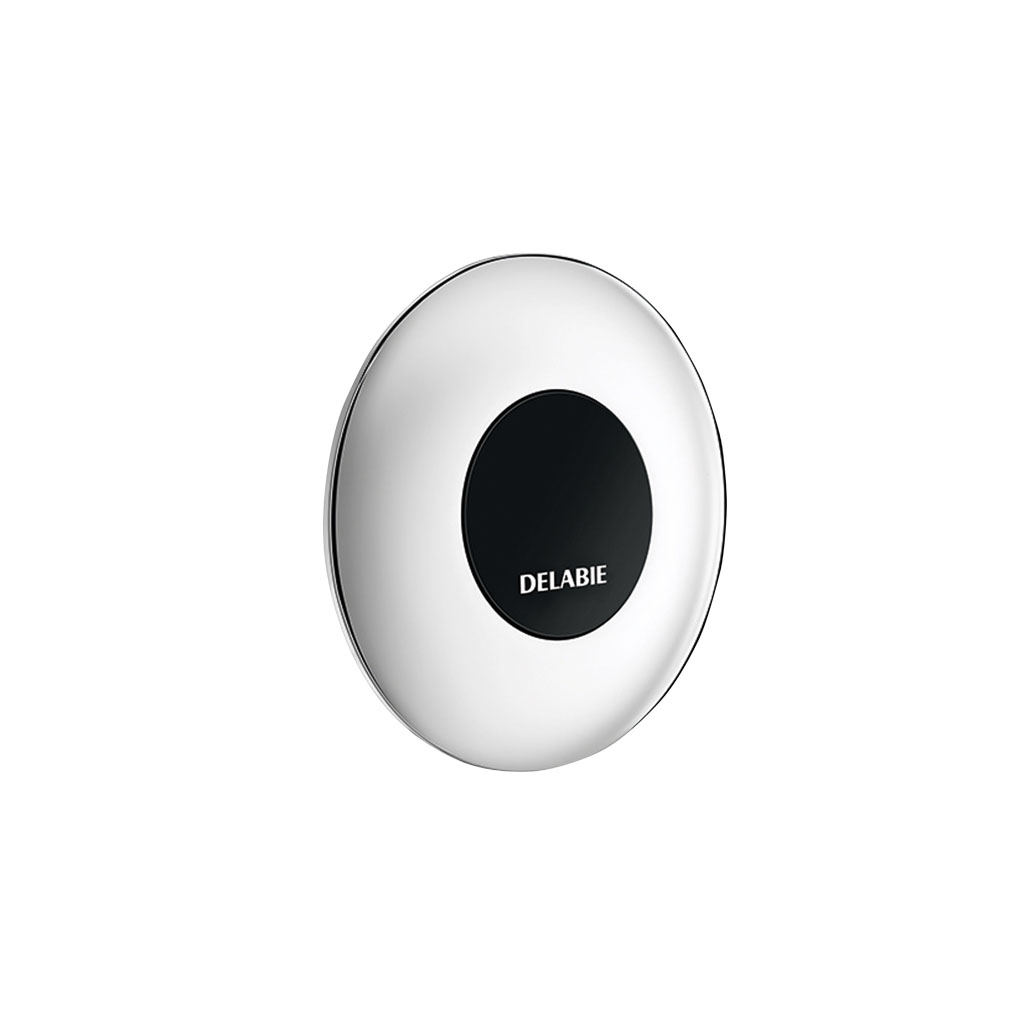

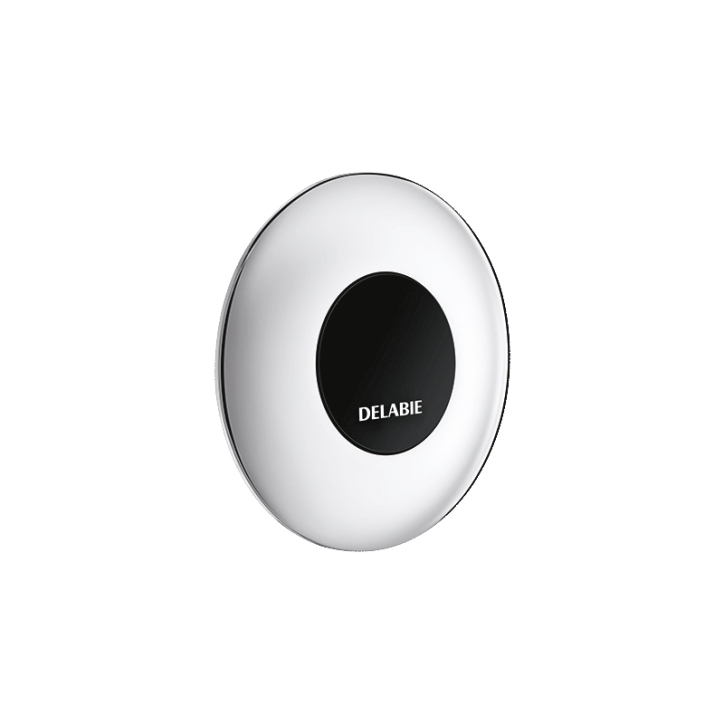

TEMPOMATIC WC direct flush valve

Ref. 463030HK

Electronic mains supply - sea water compatible

2 variants

463030 - Mains supply transformer 230/12V, for walls ≤ 30mm, F1"
463150 - Mains supply transformer 230/12V, for walls ≤ 160mm, F1"
TEMPOMATIC WC direct flush valve

Ref. 463030HK

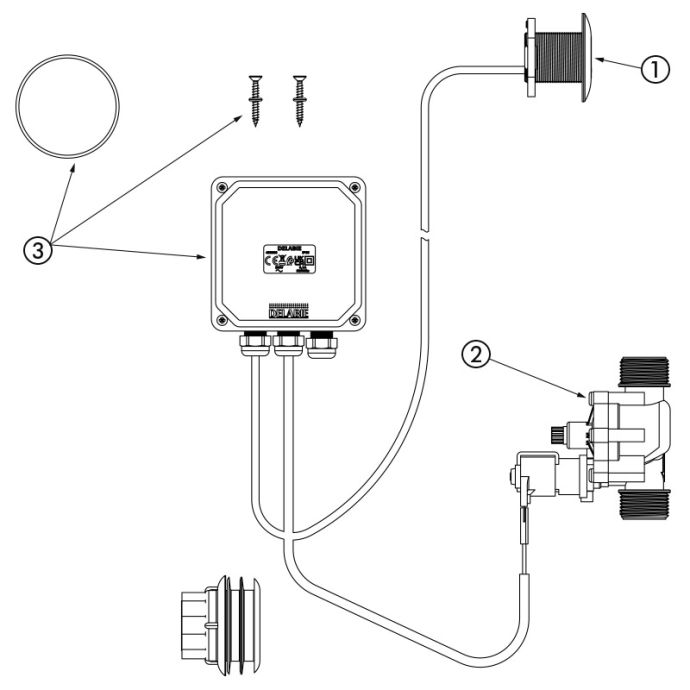

Flush system without cistern: directly connected to pipework.
Mains supply with 1" solenoid valve.
230/12V transformer.
IP65 electronic housing unit.

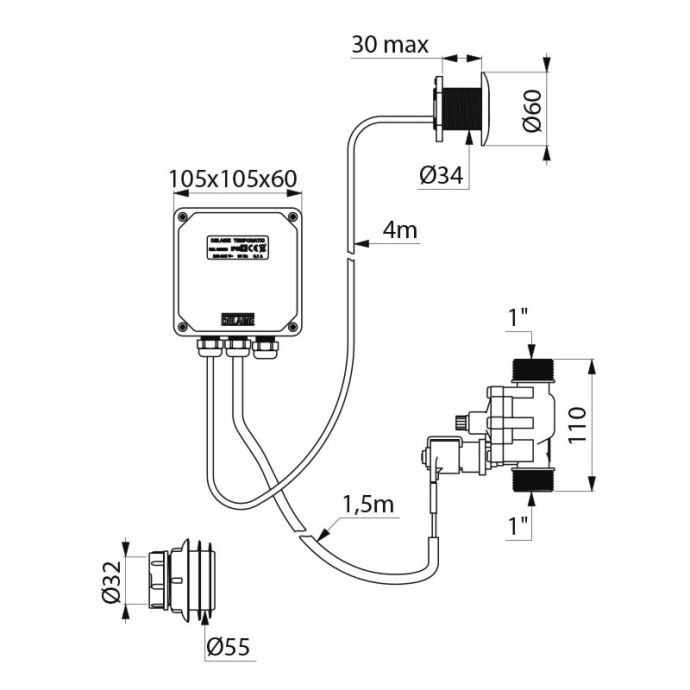

For cross wall installation on walls ≤ 30mm.
Shock-resistant infrared presence detection sensor.
Voluntary activation (when hand is detected ~10cm in front of the sensor) or automatic flush when the user leaves.
Time flow ~7 seconds can be adjusted from 3 - 12 seconds.
Detection distance, flow rate and flush volume can be adjusted.
Connection washer Ø 32/55mm.
Wall plate flush to the wall.
Threaded rod can be cut to size.
Base flow rate: 1 L/sec.
Suitable for rimless WC pans.
Sea water compatible.
30-year warranty.

Advantages

Sans contact manuel
Total hygiene: no manual contact
Hygiène - Anti-bactérien - BIOSAFE
No cistern: no water stagnation
Confort - Ergonomie - Déclenchement souple
Voluntary or automatic flush
Anti-vandalisme
Cross wall installation

Associated products

Wall-hung BCN S WC pan

Polished satin 304 stainless steel

Ref. 110110

Jumbo toilet paper dispenser - 400m

Large model for 400m rolls

Ref. 2911

Wall-mounted toilet brush set with lid

Model with anti-theft lock for fixing

Ref. 4051P
