Recessed waterproof housing, kit 1/2:
Flush system without cistern: directly connected to pipework.
Compatible with electronic WC valve.
CR123 6V Lithium battery-operated.
Collar with waterproof seal.
Hydraulic connection to the outside and maintenance from the front.
Adjusts to all types of installation (rails, solid walls, panels).
Compatible with wall finishes from 10 - 120mm (while maintaining the minimum recessing depth of 93mm).
Suitable for standard or "pipe-in-pipe" supply.
Stopcock and flow rate adjustment, activation and electronic unit are all integrated and accessible from the front.
Backflow prevention device inside the housing.
Secure system flush without sensitive elements.
Outlet connection for PVC tube Ø26/32mm.
30-year warranty.

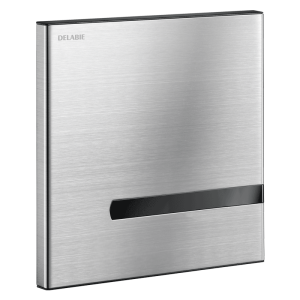

Order with control-plate references 464006, 464056, 465006 or 465056.
Advantages
Recessed installation is easy
100% waterproof housing
Adapt to wall thickness
Compatible with 6V Lithium batteries

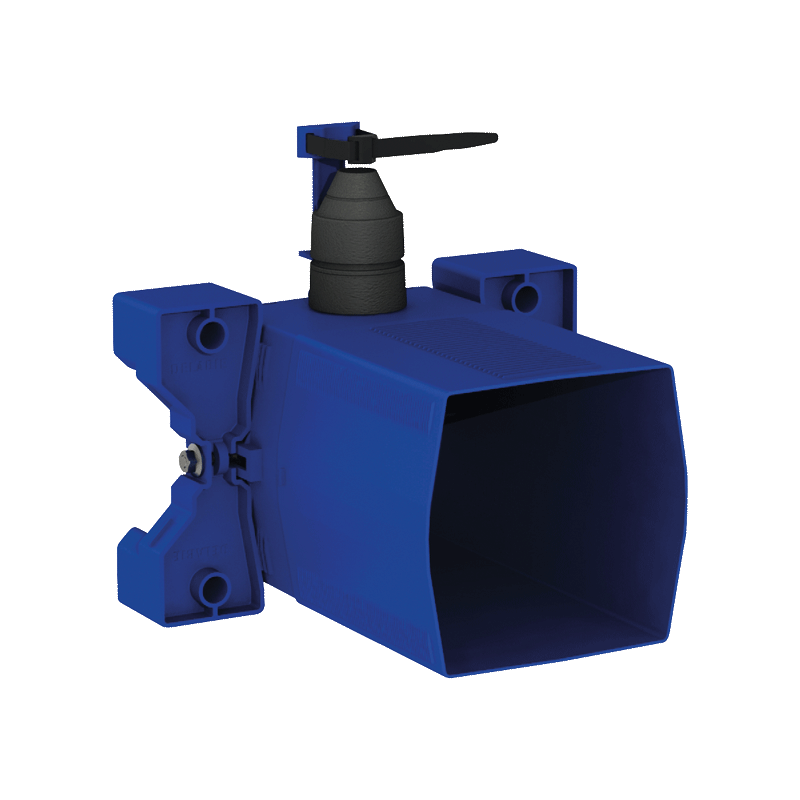

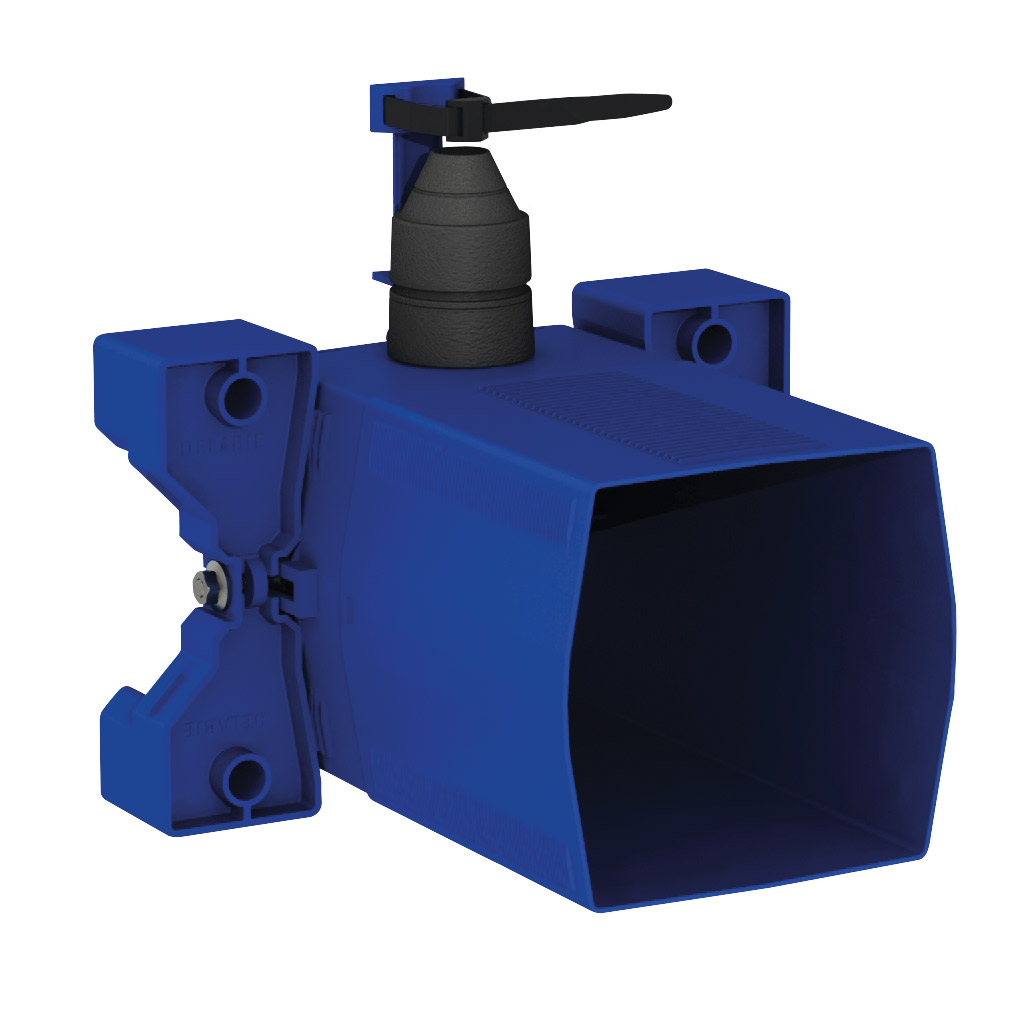

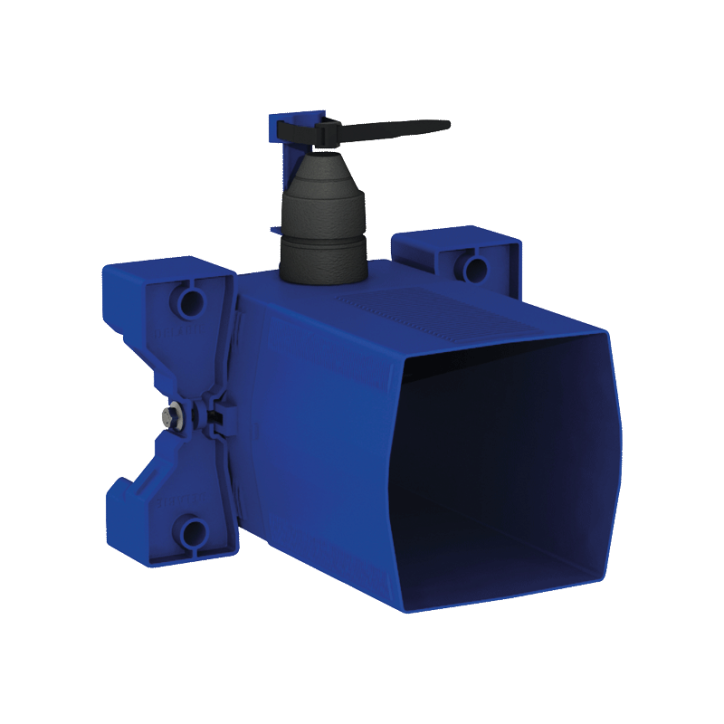

Recessed waterproof housing for TEMPOMATIC WCs
Ref. 464PBOX
Connector
F¾"
Technology
Electronic and time flow

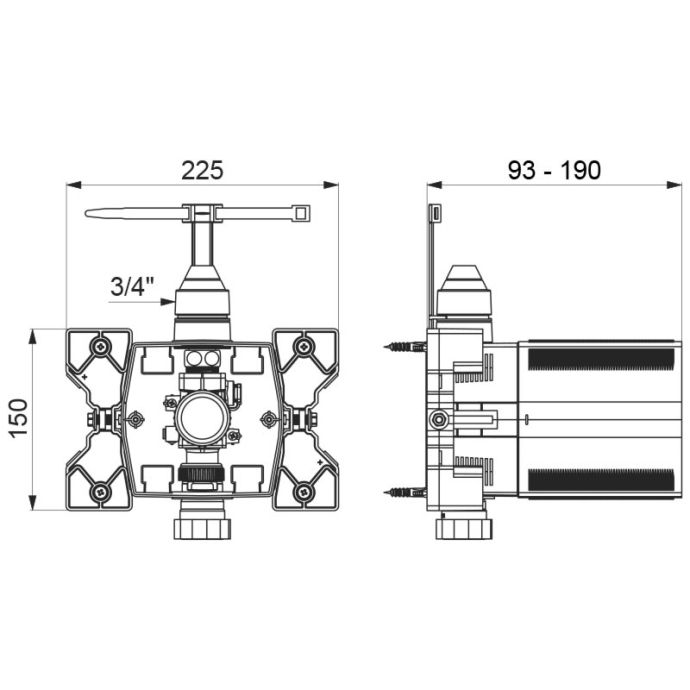

Height
150mm
Depth
93 to 190mm
Width
225mm
Certificates
Warranty
Recessed waterproof housing for TEMPOMATIC WCs
Ref.
464PBOX
To download one or several documents linked to this product, please select the type of file you require
This intelligent, electronic direct flush valve functions without a cistern. Discover its advantages in this video
