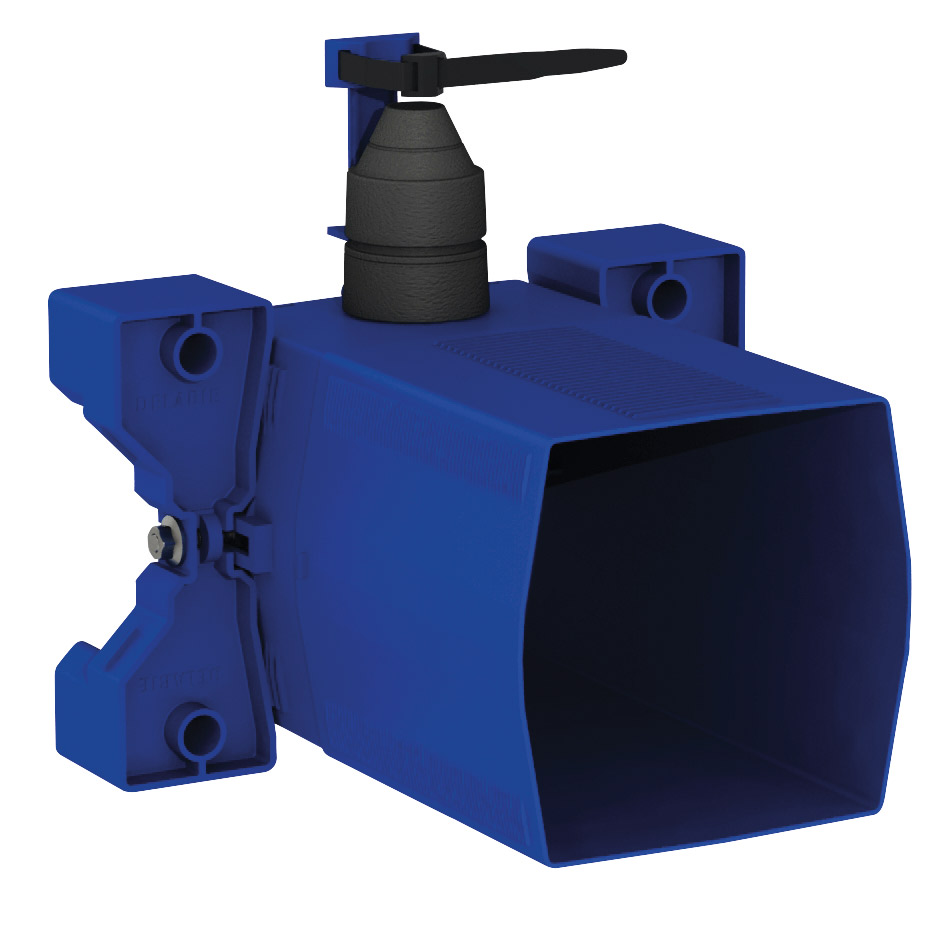

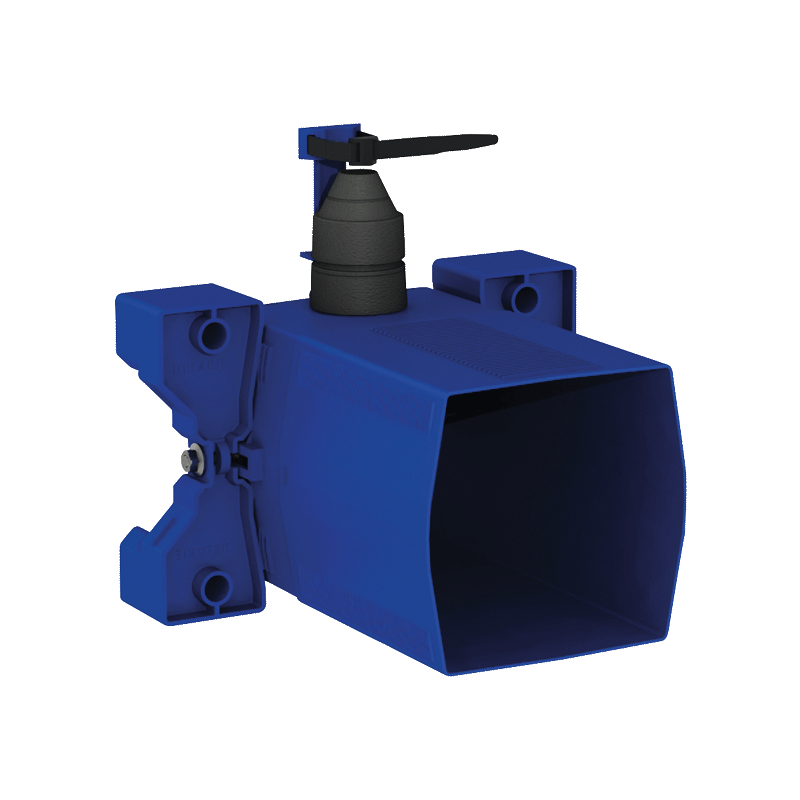

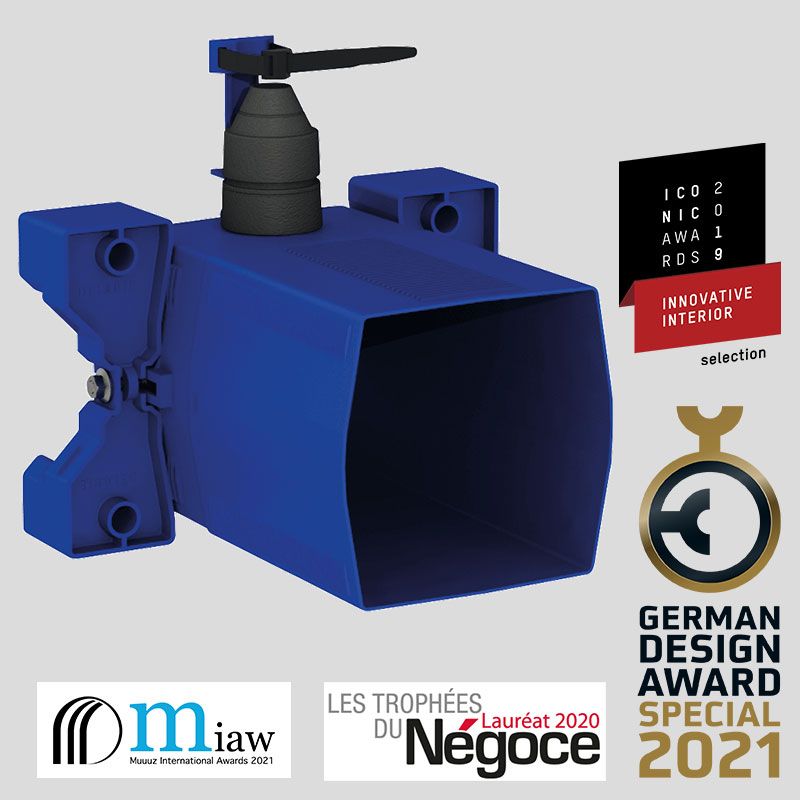

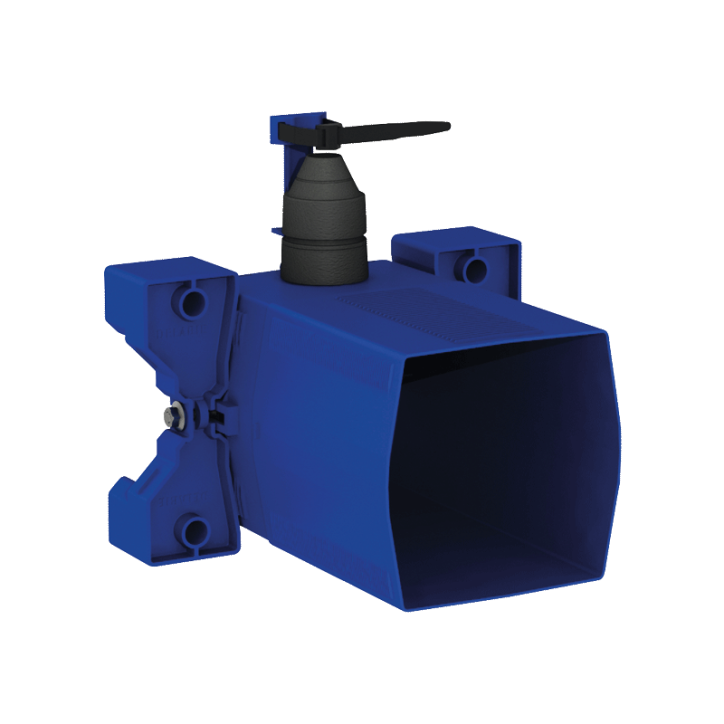

Recessed waterproof housing for TEMPOMATIC WCs

Ref. 464SBOX

Mains supply, Kit 1/2

1 variant

464PBOX - Waterproof housing for battery op. - for walls 10-120mm, F3/4"

Ref. 464SBOX

Recessed waterproof housing, kit 1/2:
Flush system without cistern: directly connected to pipework.
Compatible with 230/6V mains supply (cable and transformer supplied).
Collar with waterproof seal.
Hydraulic connection to the outside and maintenance from the front.
Adjusts to all types of installation (rails, solid walls, panels).
Compatible with wall finishes from 10 - 120mm (while maintaining the minimum recessing depth of 93mm).
Suitable for standard or "pipe-in-pipe" supply.
Stopcock and flow rate adjustment, activation and electronic unit are all integrated and accessible from the front.
Backflow prevention device inside the housing.
Secure system flush without sensitive elements.
Outlet connection for PVC tube Ø26/32mm.
30-year warranty.

Order with control-plate with references 464000, 464050, 465000 or 465050.

Advantages

Recessed installation is easy

100% waterproof housing

Adapt to wall thickness

Compatible with mains supply

Recessed waterproof housing for TEMPOMATIC WCs

Ref. 464SBOX

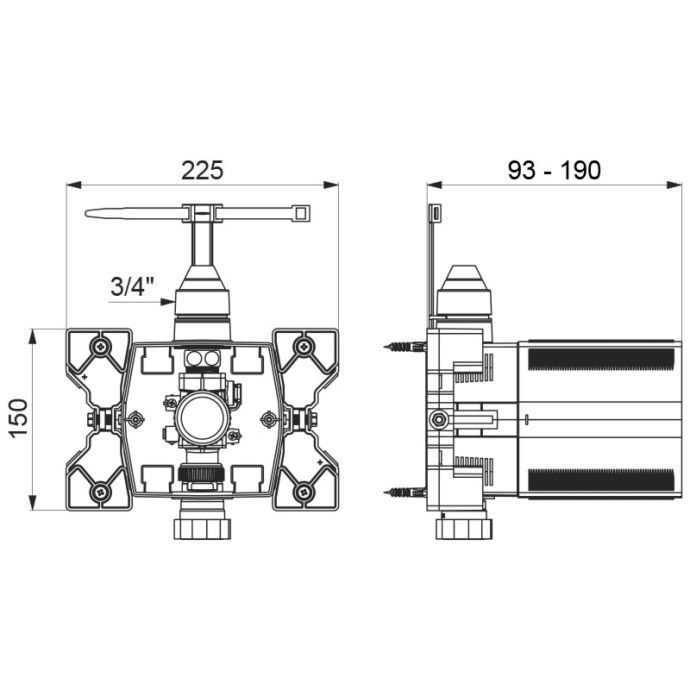

Connector F¾"

Height 150mm

Depth 93 to 190mm

Width 225mm

Certificates

Warranty

This intelligent, electronic direct flush valve functions without a cistern. Discover its advantages in this video
