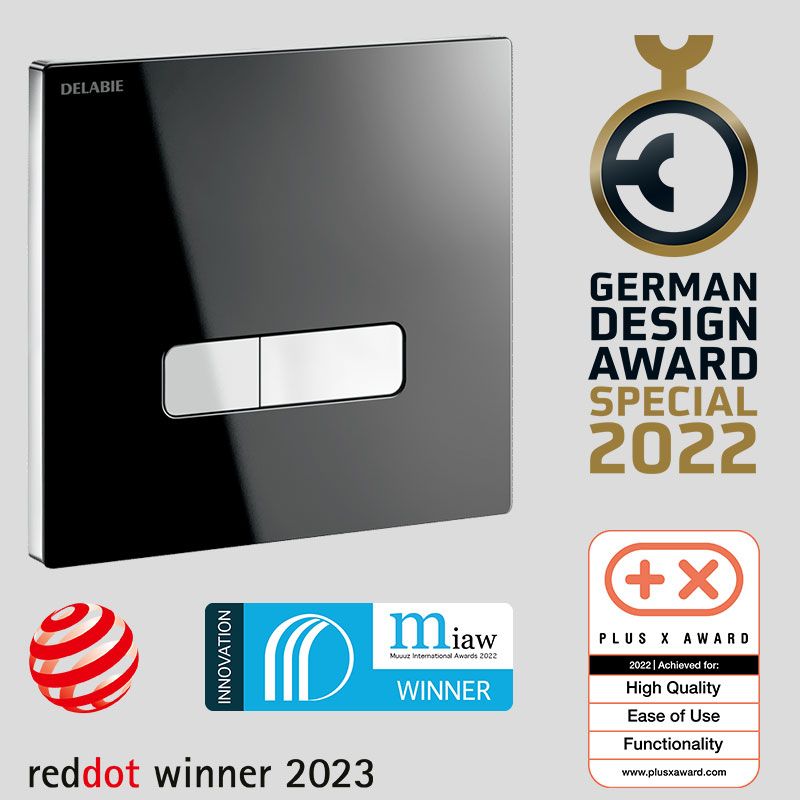

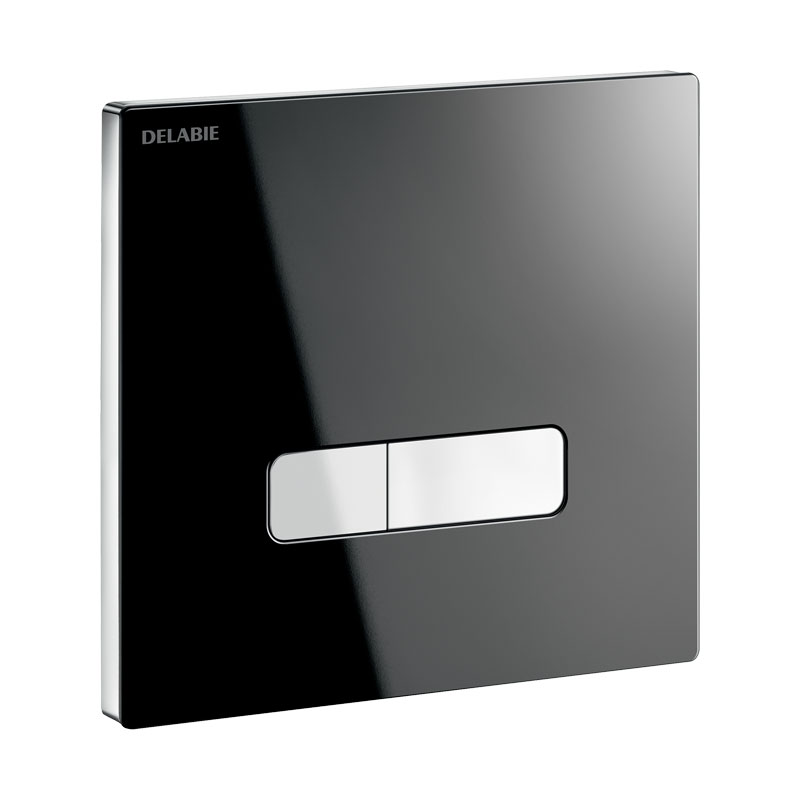

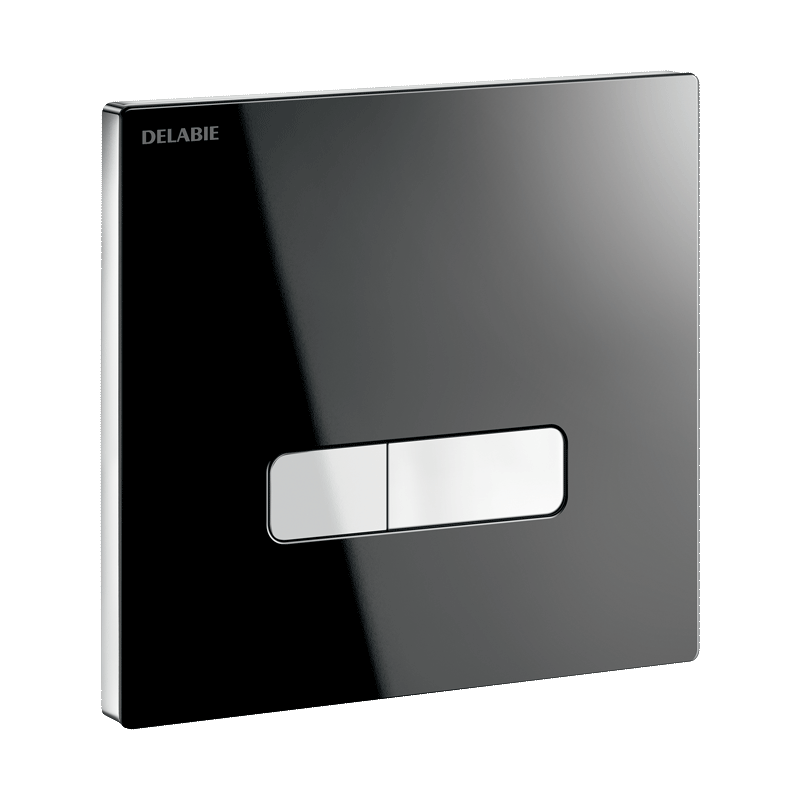

Control plate and recessed TEMPOFLUX 3 time flow direct flush valve, kit 2/2:
Flush system without cistern: directly connected to pipework.

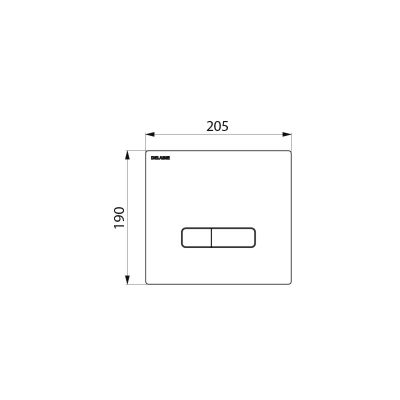

Black glass plate 205 x 190mm.
Control plate is installed manually via hidden screws.
TEMPOFLUX 3 F¾" valve compatible compatible with rain water.
Soft-touch operation.
AB anti-blocking system: only flows when push-button is released.
Dual flush 3L/6L can be adjusted to 2L/4L. Rectangular design.
Complies with European standard EN 12541 (acoustic level class II).
Upstream supply pipes: minimum Ø 20mm required at all points (including connectors).
Base flow rate: 1 L/sec at 1 bar dynamic pressure.
Suitable for rimless WC pans and suitable for people with reduced mobility.
30-year warranty.

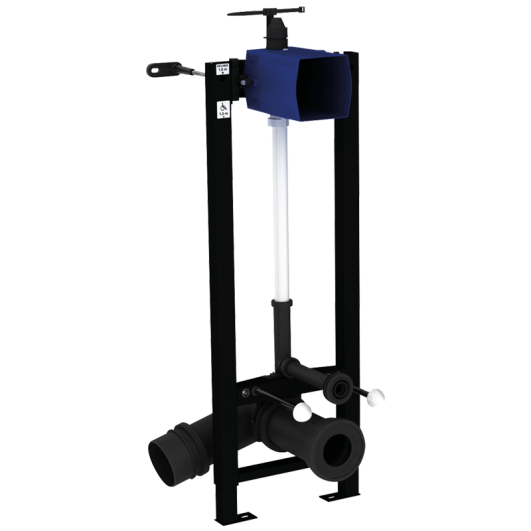

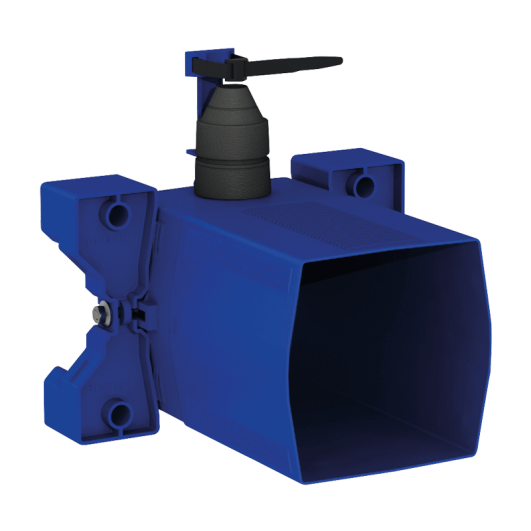

Order with frame system references 564065DE or 564060DE, or with 763BOX recessed housing.
Advantages
Soft-touch operation
Direct flush: no standing water
Dual flush 3L/6L
Maintenance made easy with front access
TEMPOFLUX 3 control plate for WCs
Ref. 763030
Connector
F¾"
Technology
Time flow
Height
190mm
Width
205mm
Finish
Black glass
Certificates
Warranty
TEMPOFLUX 3 control plate for WCs
Ref.
763030
To download one or several documents linked to this product, please select the type of file you require

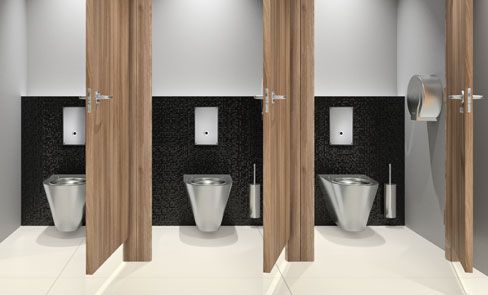

This direct flush WC valve without a cistern is ideal for public buildings: discover its advantages in this video
