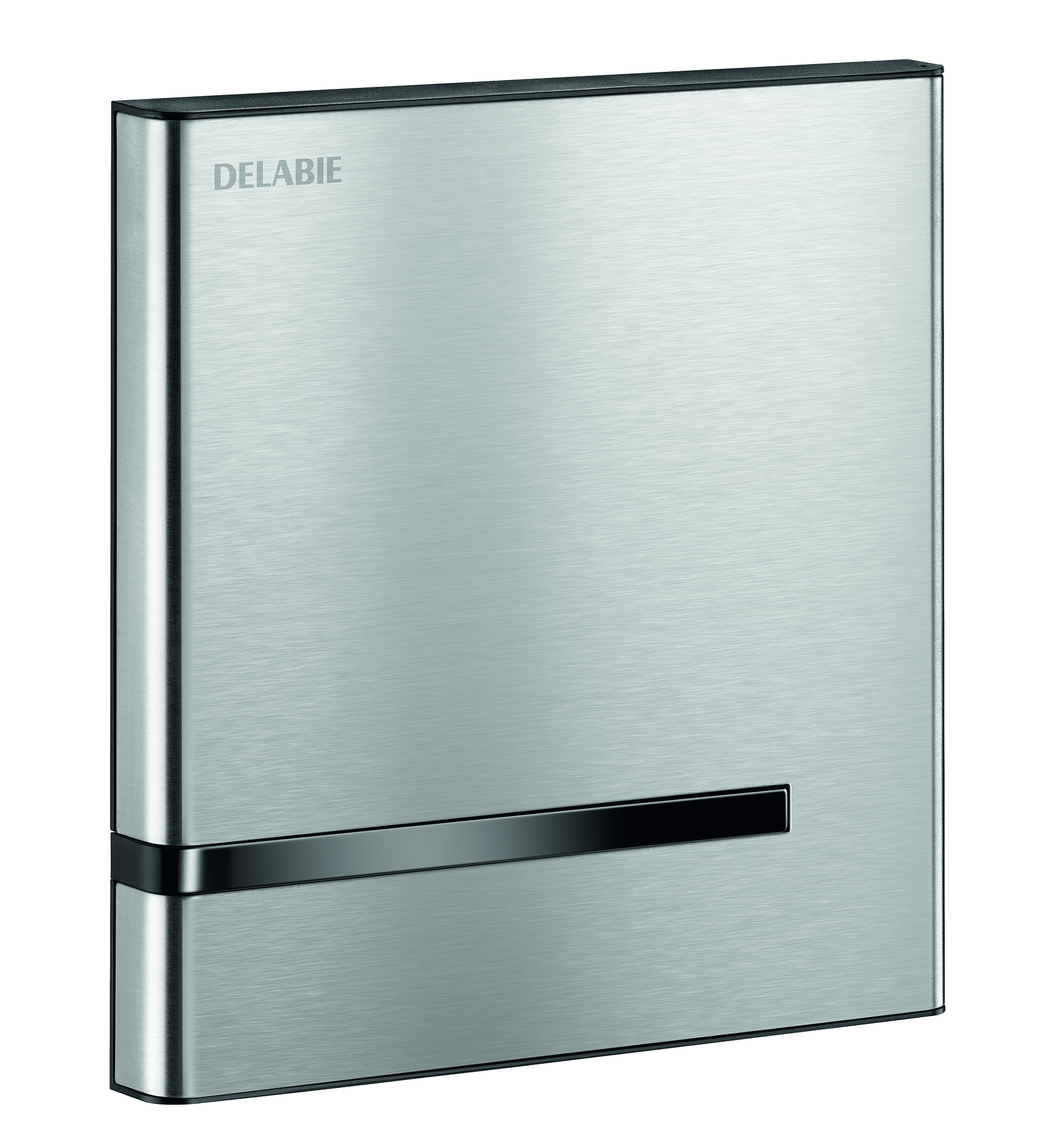

TEMPOMATIC 4 control plate for urinals

Ref. 430000

Recessed electronic mains supply valve - For urinals

2 variants

430010 - Chrome-plated stainless steel - Mains supply 230/6V connection, F½"

430030 - Tempered black glass finish - Mains supply 230/6V connection, F½"

TEMPOMATIC 4 control plate for urinals

Ref. 430000

TEMPOMATIC 4 electronic valve F½", kit 2/2.
230/6V mains supply.
Solenoid valve enables opening and closing of water.
Satin finish stainless steel wall plate 145 x 145mm with integrated electronics.
Shock-resistant infrared presence detection sensor.
Detection delay is 10 seconds.
3 programmes (rinsing volume can be adjusted according to urinal type).
High frequency mode (exclusive to DELABIE).
Hygienic duty flush every 24 hours (can be adjusted to 12 hours or OFF) after last use: prevents vacuums.
Flow rate pre-set at 0.15 L/sec at 3 bar, can be adjusted.
TEMPOMATIC 4 F½" valve compatible with rain water.
Installation in waterproof housing with waterproof collar, transformer, filter and stopcock.
Suitable for people with reduced mobility.
30-year warranty.

Order with frame system references 543000 for urinals Ø 35mm, 543000D for urinals with flexible ½" or with recessed housing 430SBOX.

Advantages

Total hygiene: no manual contact

3 rinsing programmes and high-frequency mode

Hygienic duty flush

Compatible with mains supply

TEMPOMATIC 4 control plate for urinals

Ref. 430000

Supply 230/6V mains supply

Technology Electronic

Length 145mm

Width 145mm

Finish Brushed stainless steel

Certificates

Warranty
