Ref. 430010
Recessed electronic mains supply valve - For urinals
5 variants
430000 -
Satin finish - Mains supply 230/6V connection, F½"
430006 -
Satin finish - Supplied by 6V CR123 Lithium batteries, F½"
430016 -
Chrome-plated stainless steel - Supplied by 6V CR123 Lithium batteries, F½"
430030 -
Tempered black glass finish - Mains supply 230/6V connection, F½"
430036 -
Tempered black glass finish - Supplied by 6V CR123 Lithium batteries, F½"

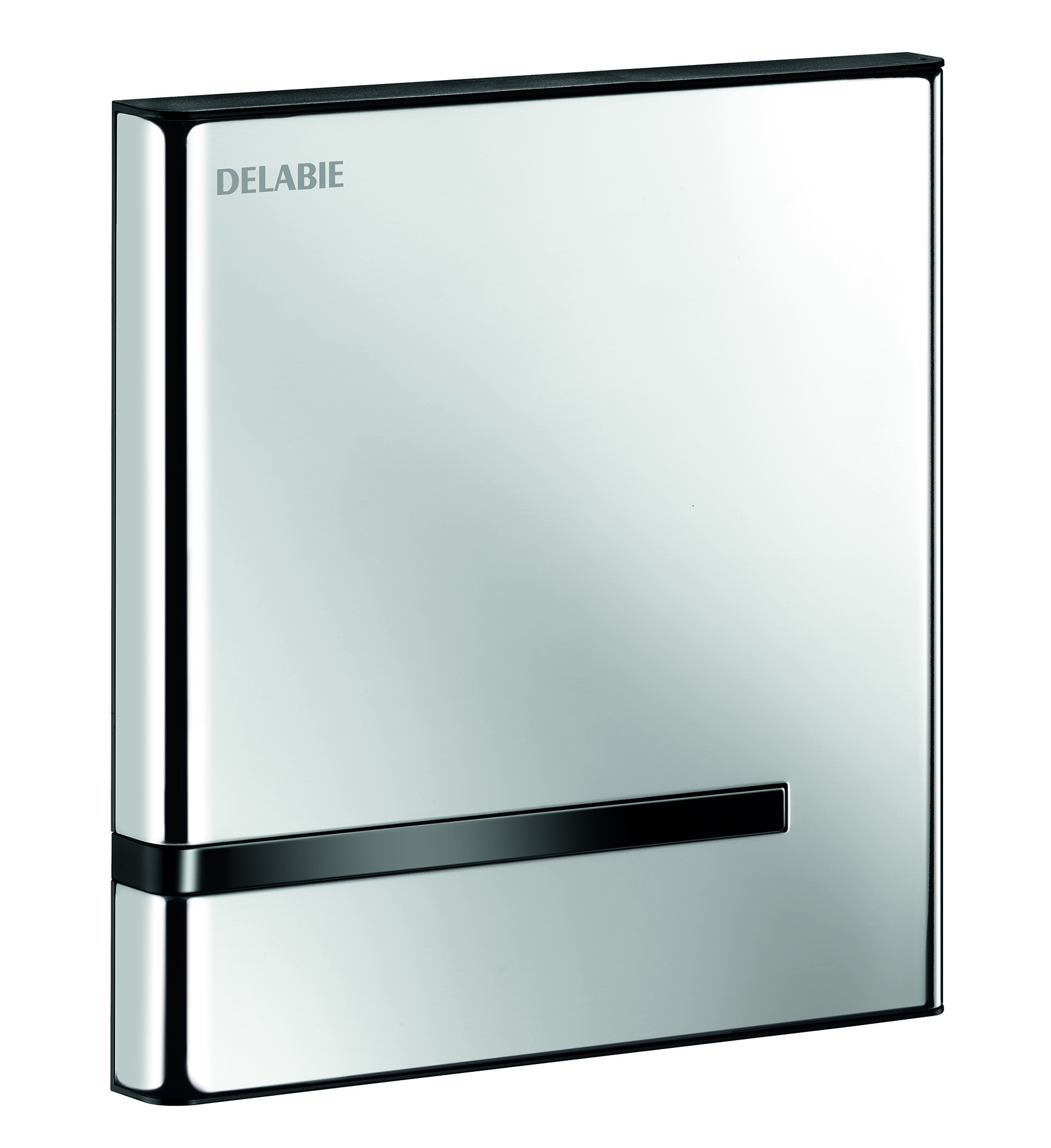

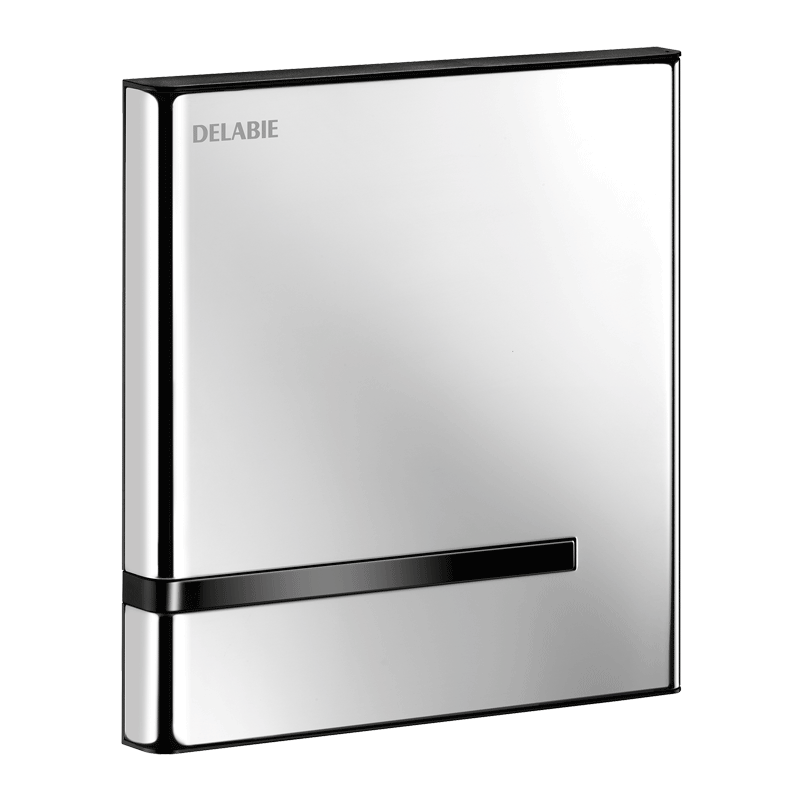

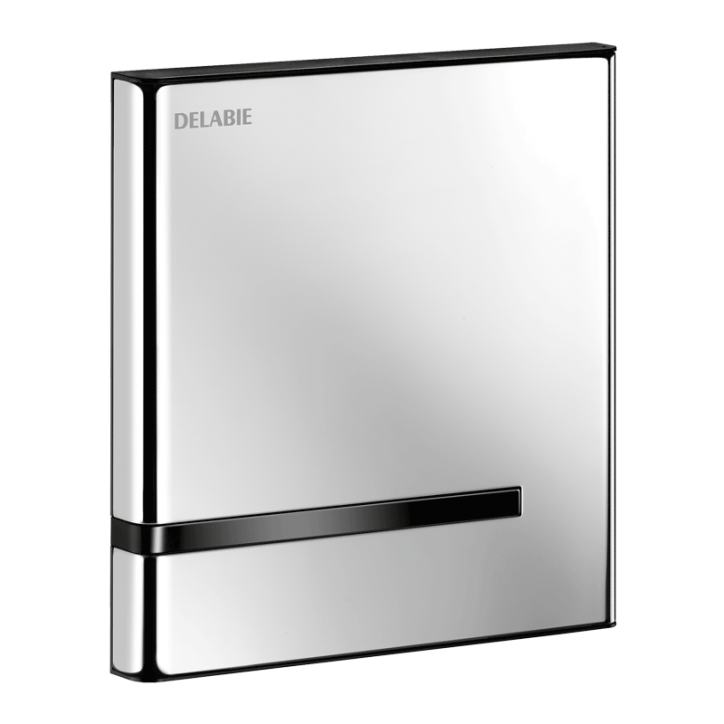

Control plate for TEMPOMATIC 4 for urinals
Ref. 430010
TEMPOMATIC electronic valve 4 F½", kit 2/2.
Mains supply 230/6V.
Solenoid valve enables opening and closing of water.
Chrome-plated finish stainless steel wall plate 145 x 145mm with integrated electronics.
Shock-resistant infrared presence detection sensor.
Detection delay is 10 seconds.
3 programmes (rinsing volume can be adjusted according to urinal type).
High frequency mode (exclusive to DELABIE):
- Short rinse after each user.
- Additional rinse after the period of increased frequency of use.
Hygienic duty flush every 24 hours (can be adjusted to 12 hours or OFF) after last use: prevents vaccums.
Flow rate pre-set at 0.15 L/sec at 3 bar, can be adjusted.
TEMPOMATIC 4 F½" valve compatible with rain water.
Installation in waterproof housing with waterproof collar, transformer, filter and stopcock.
Suitable for people with reduced mobility.
30-year warranty.
Order with frame system references 543000 for urinals Ø 35mm, 543000D for urinals with flexible ½" or with recessed housing 430SBOX.
Mains supply 230/6V.
Solenoid valve enables opening and closing of water.
Chrome-plated finish stainless steel wall plate 145 x 145mm with integrated electronics.
Shock-resistant infrared presence detection sensor.
Detection delay is 10 seconds.
3 programmes (rinsing volume can be adjusted according to urinal type).
High frequency mode (exclusive to DELABIE):
- Short rinse after each user.
- Additional rinse after the period of increased frequency of use.
Hygienic duty flush every 24 hours (can be adjusted to 12 hours or OFF) after last use: prevents vaccums.
Flow rate pre-set at 0.15 L/sec at 3 bar, can be adjusted.
TEMPOMATIC 4 F½" valve compatible with rain water.
Installation in waterproof housing with waterproof collar, transformer, filter and stopcock.
Suitable for people with reduced mobility.
30-year warranty.
Order with frame system references 543000 for urinals Ø 35mm, 543000D for urinals with flexible ½" or with recessed housing 430SBOX.
Advantages
Control plate for TEMPOMATIC 4 for urinals
Ref. 430010
Supply
230/6V mains supply
Technology Electronic

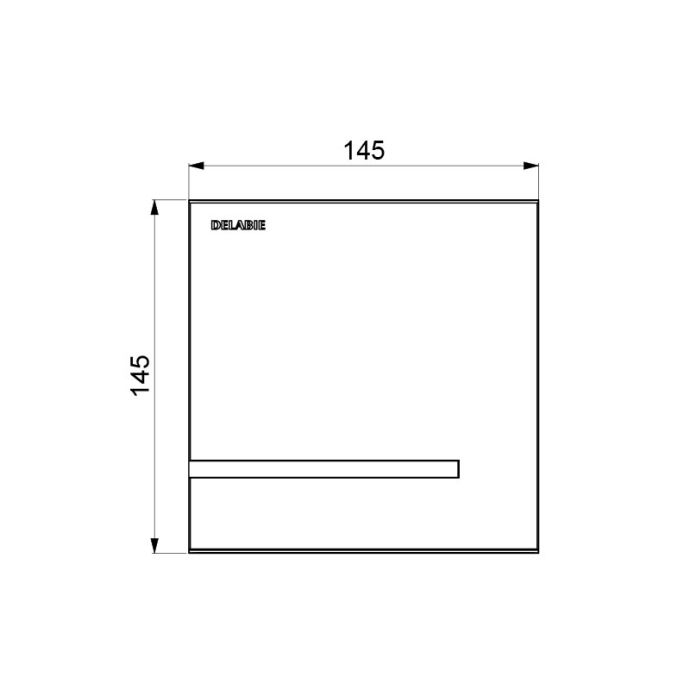

Length 145mm
Width 145mm
Finish Inox brillant
Certificates
Warranty
Technology Electronic
Length 145mm
Width 145mm
Finish Inox brillant
Certificates
Warranty
Control plate for TEMPOMATIC 4 for urinals
Ref. 430010
