TEMPOMATIC 4 electronic valve F½", kit 2/2.
Mains supply 230/6V.
Solenoid valve enables opening and closing of water.

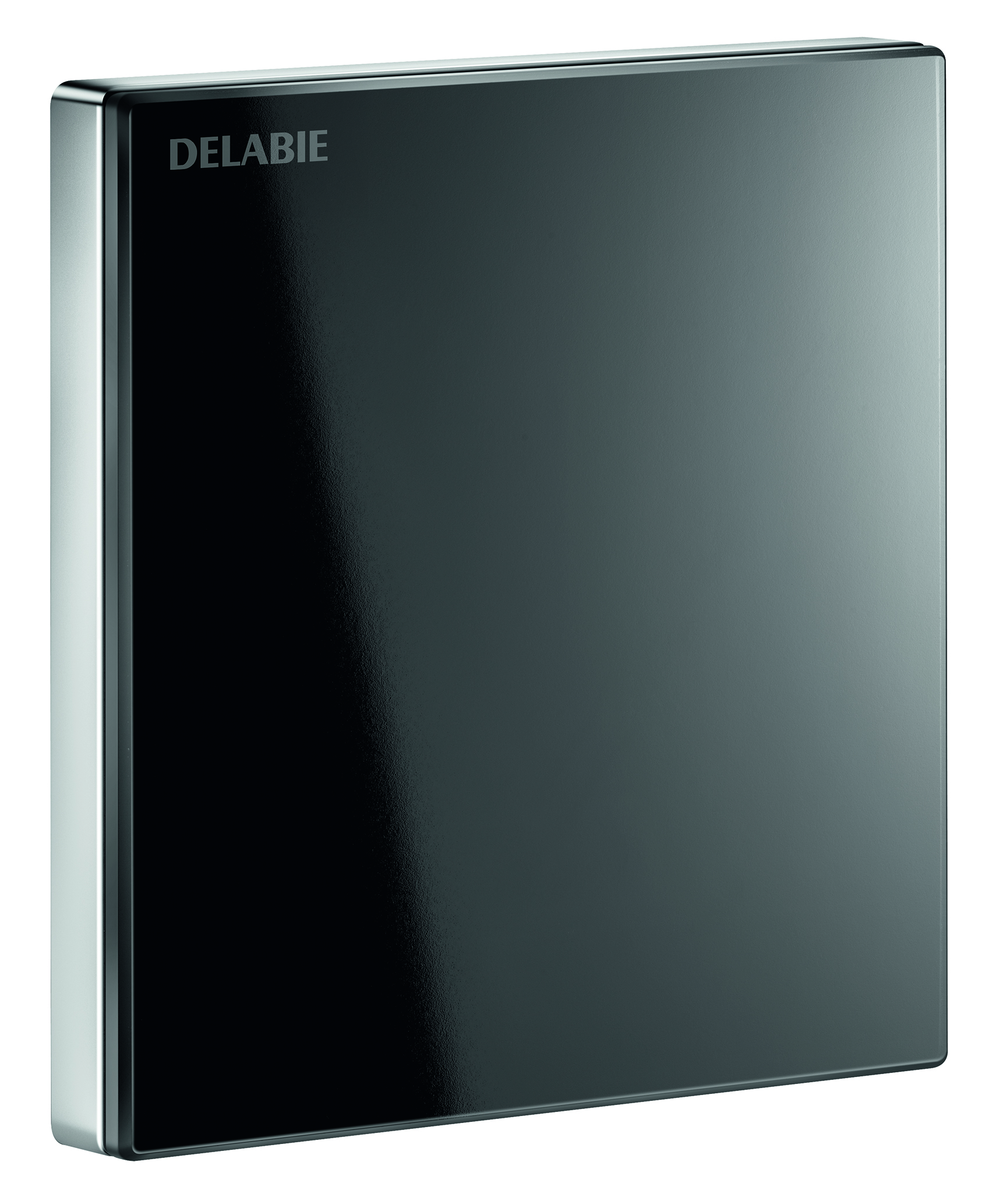

Black wall plate 145 x 145mm in shock-resistant tempered glass with integrated electronics.
Shock-resistant infrared presence detection sensor.
Detection delay is 10 seconds.
3 programmes (rinsing volume can be adjusted according to urinal type).
High frequency mode (exclusive to DELABIE):
- Short rinse after each user.
- Additional rinse after the period of increased frequency of use.
Hygienic duty flush every 24 hours (can be adjusted to 12 hours or OFF) after last use: prevents vaccums.
Flow rate pre-set at 0.15 L/sec at 3 bar, can be adjusted.
TEMPOMATIC 4 F½" valve compatible with rain water.
Installation in waterproof housing with waterproof collar, transformer, filter and stopcock.
Suitable for people with reduced mobility.
30-year warranty.

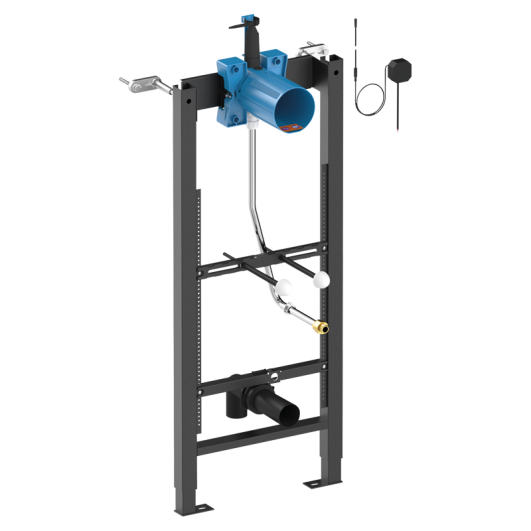

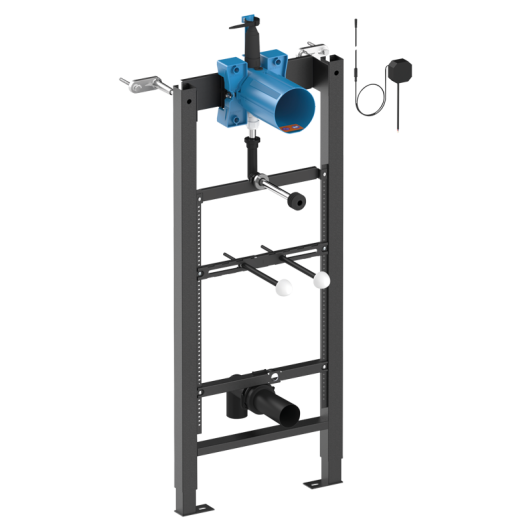

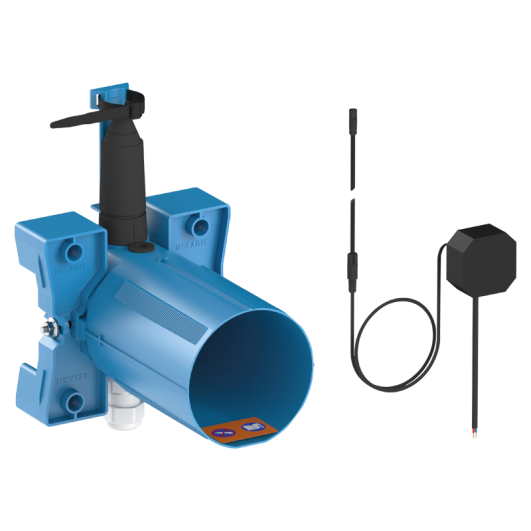

Order with frame system references 543000 for urinals Ø 35mm, 543000D for urinals with flexible ½" or with recessed housing 430SBOX.
Advantages
Total hygiene: no manual contact
3 rinsing programmes and high-frequency mode
Hygienic duty flush
Compatible with mains supply

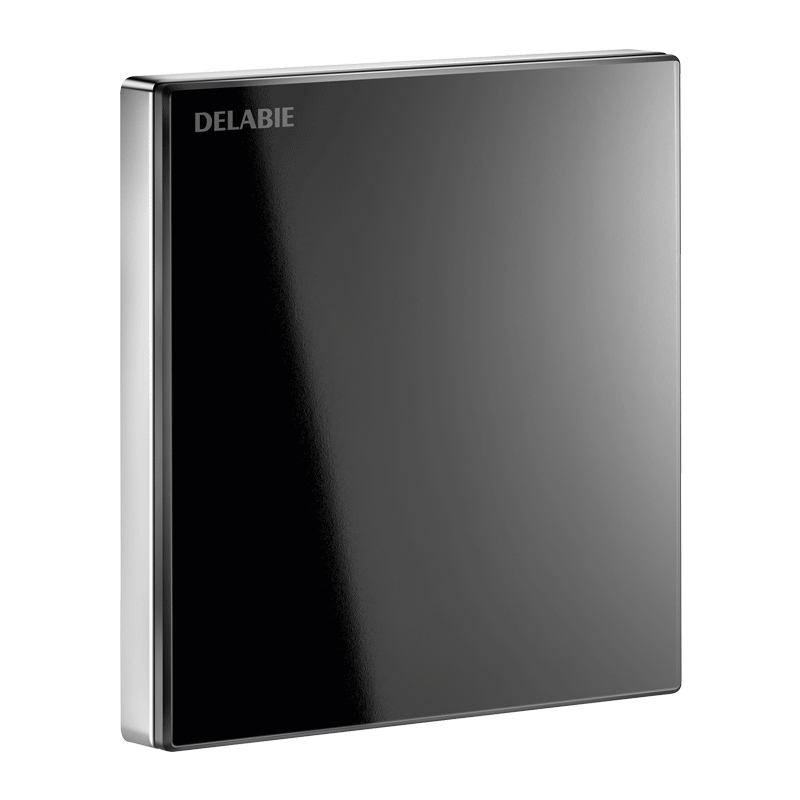

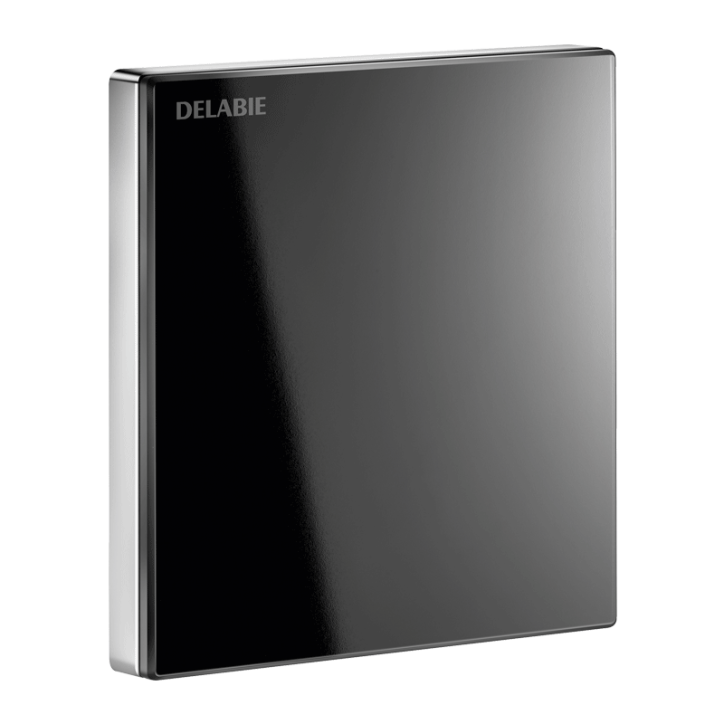

Control plate for TEMPOMATIC 4 for urinals
Ref. 430030
Supply
230/6V mains supply
Technology
Electronic
Length
145mm
Width
145mm
Finish
Black wall plate in shock-resistant vitro-ceramic glass
Certificates
Warranty
Control plate for TEMPOMATIC 4 for urinals
Ref.
430030
To download one or several documents linked to this product, please select the type of file you require
