New

TEMPOMATIC 4 urinal valve

Ref. 479413

Electronic with integrated batteries

5 variants

479410 - Valve only, in-line inlet, M½"

479411 - Valve only, elbow inlet, M½"

479412 - Complete standard urinal kit, elbow inlet, M½"

479414 - DELABIE DELTA complete standard urinal kit, elbow inlet, M½"

479416 - Complete non-standard urinal kit, elbow inlet, M½"

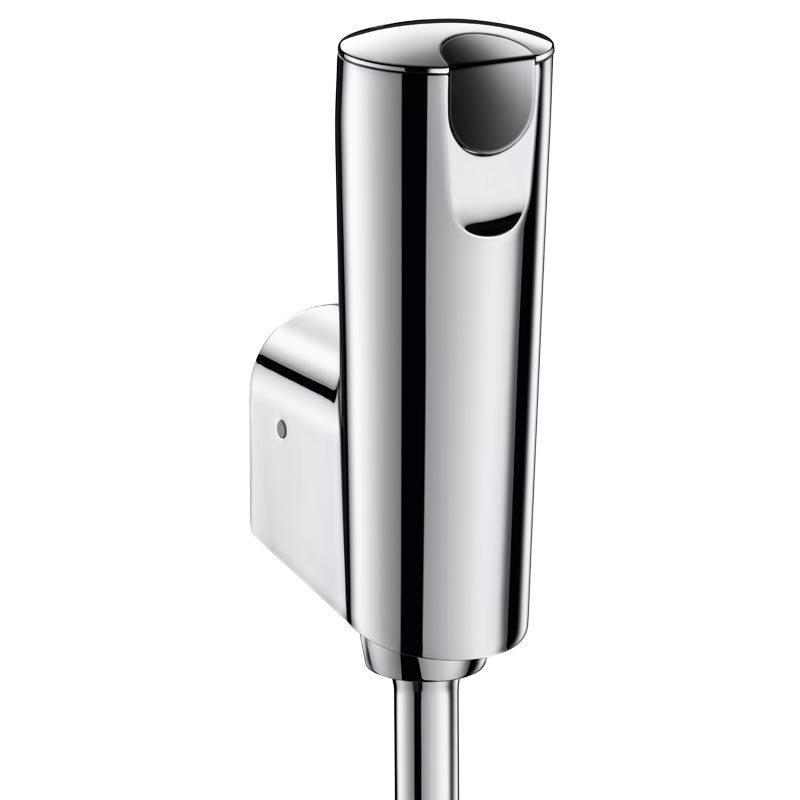

TEMPOMATIC 4 urinal valve

Ref. 479413

Exposed electronic urinal valve with integrated batteries:
Battery-operated with integrated CR 123 6V Lithium batteries.
For wall-mounted, exposed installation.
Reduced-stagnation solenoid valve and electronic unit integrated into the valve body.
Shockproof infrared presence detection sensor.
Detection delay is 10 sec.
3 programmes (rinsing volume adjustable in accordance to the type of urinal).
High-frequency mode (exclusive to DELABIE):
- short rinse after each user
- complementary rinse after busy period.
Hygienic duty flush, every 24hr after last use, prevents vacuums in the siphon.
Compatible with rain water.
Flow rate 0.15 L/sec. at 3 bar, can be adjusted.
Integrated stopcock and flow rate adjuster.
One-piece chrome-plated metal body.
M½" connection.
Angled for recessed supply.
For DELABIE FINO urinal.
Suitable for people with reduced mobility.
30-year warranty.

Ideal for replacing old installations:
Can easily be installed where there was previously a time flow urinal.

Advantages

Total hygiene: no manual contact

High-frequency mode

Batteries integrated into the valve body

Hygienic duty flush

TEMPOMATIC 4 urinal valve

Ref. 479413

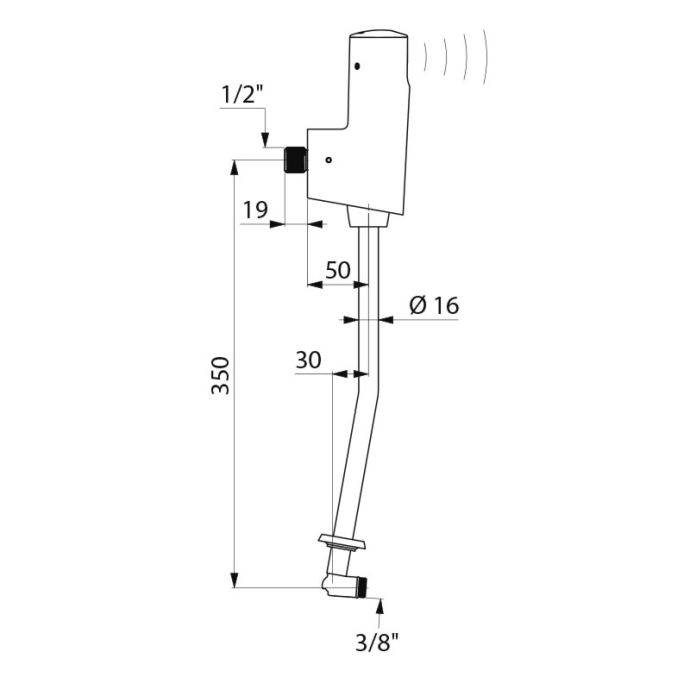

Supply 6V batteries

Connector M½"

Technology Electronic

Height 465mm

Depth 85mm

Flow rate 0.15 l/sec.

Certificates

Warranty
