DESCRIPTION

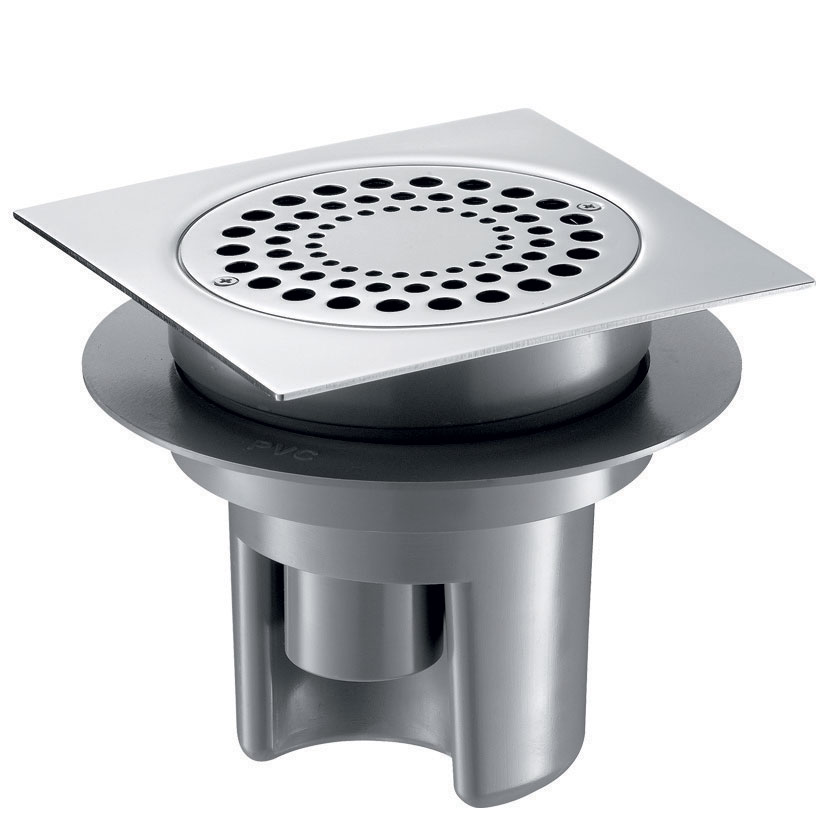

Floor trap
Ref. 683001Floor trap for hard floors (tiles or concrete) with adjustable height:
Flow rate 36 lpm (meets standards).
Water level 50mm.
150x150mm bright polished stainless steel plate and grid.
Horizontal (elbow joint not supplied) or vertical outlet Ø 40mm integrated into the height of the floor trap (saves height and space in all dimensions).
Integrated waterproof plate to seal waterproof membrane.
Withstands high temperatures: 60°C continuous, 85°C peak.
Plunger with handle: easy to grip and easy to clean.
Smooth PVC body (prevents build-up of impurities).
Classified non-flammable (American certification UL94).
110mm high, adjusts up to 70mm with extension.
Grid fixed with 2 stainless steel screws.
30-year warranty.
            Flow rate 36 lpm (meets standards).
Water level 50mm.
150x150mm bright polished stainless steel plate and grid.
Horizontal (elbow joint not supplied) or vertical outlet Ø 40mm integrated into the height of the floor trap (saves height and space in all dimensions).
Integrated waterproof plate to seal waterproof membrane.
Withstands high temperatures: 60°C continuous, 85°C peak.
Plunger with handle: easy to grip and easy to clean.
Smooth PVC body (prevents build-up of impurities).
Classified non-flammable (American certification UL94).
110mm high, adjusts up to 70mm with extension.
Grid fixed with 2 stainless steel screws.
30-year warranty.
ADVANTAGES

Trap adaptable to type of floor, adjustable height

Plunger with handle, body is completely smooth

Tamperproof stainless steel grid
TECHNICAL CHARACTERISTICS
Floor trap
Ref. 683001| Height | 180mm max |
| Length | 150mm |
| Width | 150mm |
| Flow rate | 36 lpm |
| Certificates |
                                                                                                     |

| Warranty |                                          |


VARIANTS
| 682001 | Ø 40mm outlet- tiled or concrete floors - 100 x 100mm - Height ≤ 80mm | ||
|---|---|---|---|
| 682001DE | Ø 50mm outlet- tiled or concrete floors - 100 x 100mm - Height ≤ 80mm | ||
| 683001DE | Bright pol st steel plate & grid 150x150mm, Ø 50mm horizontal outlet | ||
| 683001UK | Ø43mm outlet- tiled or concrete floors - 150 x 150mm - Height ≤ 70mm | ||
| 682001UK | Ø 43mm outlet- tiled or concrete floors - 100 x 100mm - Height ≤ 80mm |
