Ref. 683001UK
For tiles or concrete floors
5 variants
683001 -
Ø 40mm outlet- tiled or concrete floors - 150 x 150mm - Height ≤ 70mm
682001 -
Ø 40mm outlet- tiled or concrete floors - 100 x 100mm - Height ≤ 80mm
682001DE -
Ø 50mm outlet- tiled or concrete floors - 100 x 100mm - Height ≤ 80mm
683001DE -
Bright pol st steel plate & grid 150x150mm, Ø 50mm horizontal outlet
682001UK -
Ø 43mm outlet- tiled or concrete floors - 100 x 100mm - Height ≤ 80mm

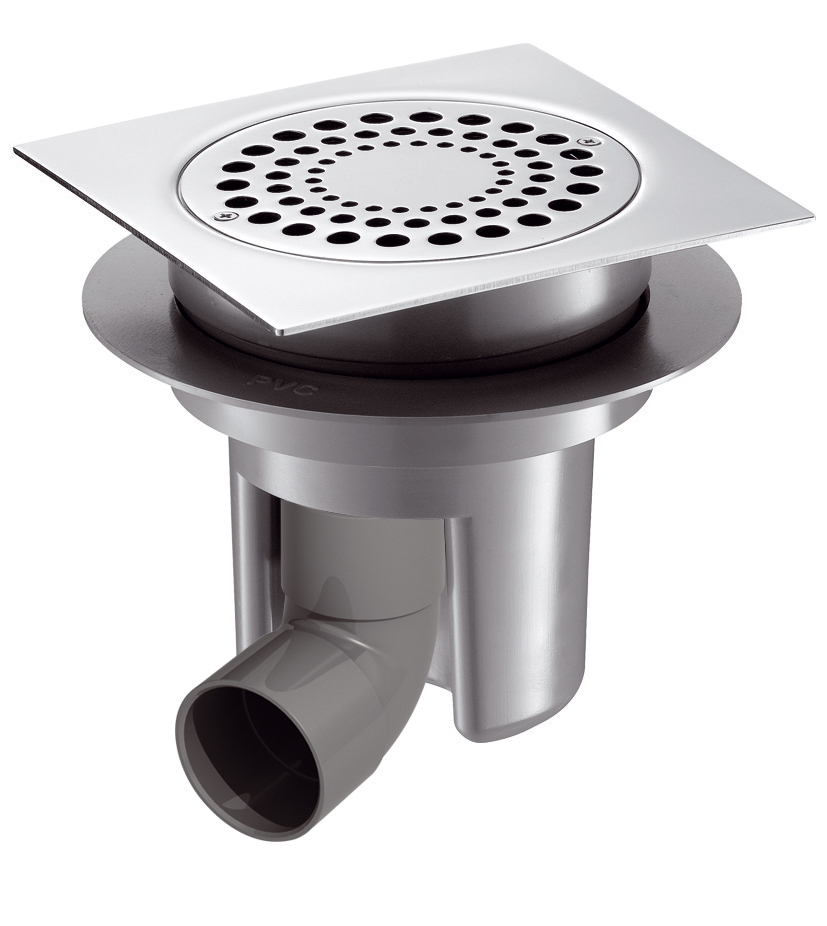

Adjustable height floor trap
Ref. 683001UK
Floor trap for hard floors (tiles or concrete) with adjustable height:
Flow rate 36 lpm (meets standards).
Water level 50mm.
Bright polished stainless steel plate and grid 150x150mm.
Ø 43mm horizontal outlet integrated into the height of the floor trap (saves height and space in all directions).
Integrated waterproof collar to seal waterproof membrane.
Withstands high temperatures: 60°C continuous, 85°C peak.
Plunger with handle: easy to grip and easy cleaning.
Smooth PVC body (prevents build-up of impurities).
Classified non-flammable (American certification UL94).
110mm high, adjusts up to 70mm with extension.
Grill fixed with two stainless steel screws.
30-year warranty.
Flow rate 36 lpm (meets standards).
Water level 50mm.
Bright polished stainless steel plate and grid 150x150mm.
Ø 43mm horizontal outlet integrated into the height of the floor trap (saves height and space in all directions).
Integrated waterproof collar to seal waterproof membrane.
Withstands high temperatures: 60°C continuous, 85°C peak.
Plunger with handle: easy to grip and easy cleaning.
Smooth PVC body (prevents build-up of impurities).
Classified non-flammable (American certification UL94).
110mm high, adjusts up to 70mm with extension.
Grill fixed with two stainless steel screws.
30-year warranty.
Advantages
Adjustable height floor trap
Ref. 683001UK
Height
180mm max
Length 150mm
Width 150mm
Flow rate 36 lpm
Warranty
Length 150mm
Width 150mm
Flow rate 36 lpm
Warranty
Adjustable height floor trap
Ref. 683001UK
