Electronic and time flow valves for urinals
+

TEMPOFLUX urinal valve

Ref. 778757

Time flow 3 seconds. For DELABIE DELTA urinal

2 variants

778755 - For standard urinals, Time flow 3s, wall gap 50mm, M½"
778759 - For DELABIE FINO urinals, time flow 3s, M½"

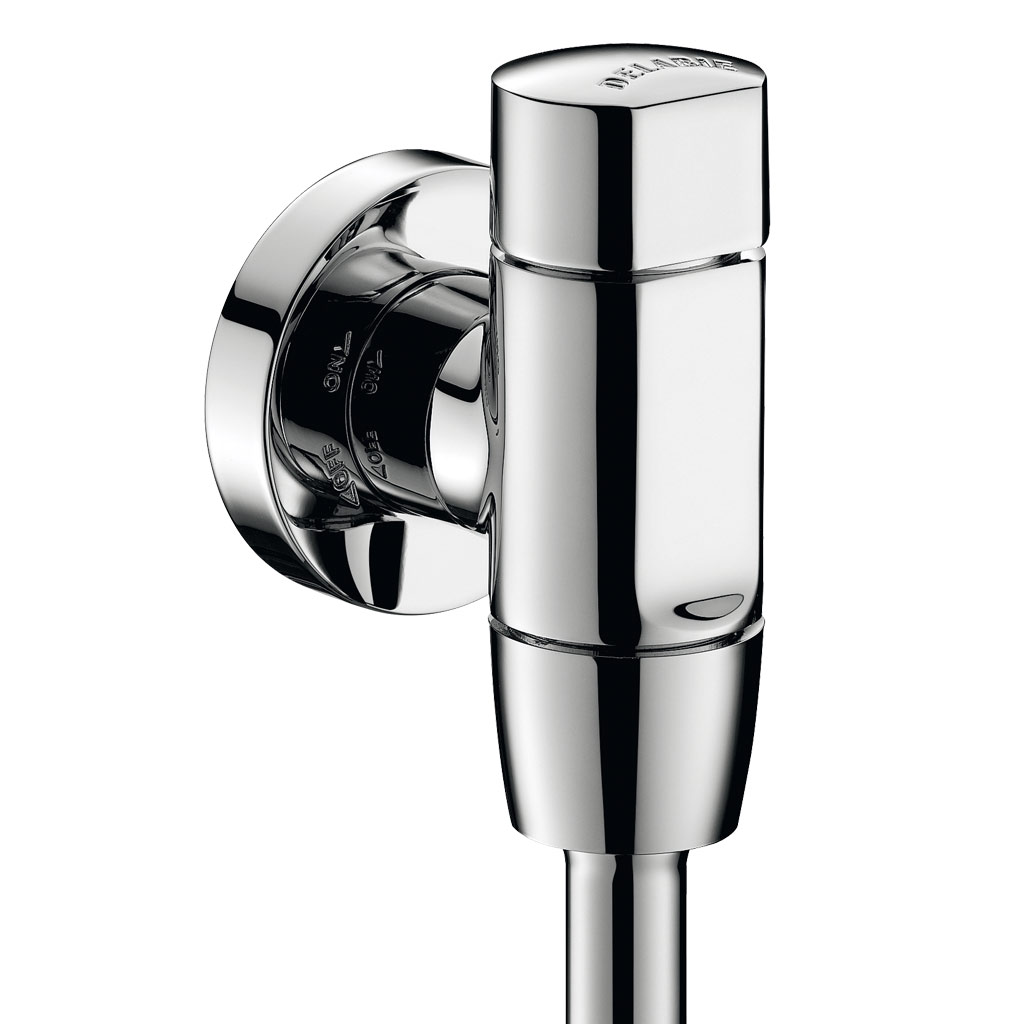

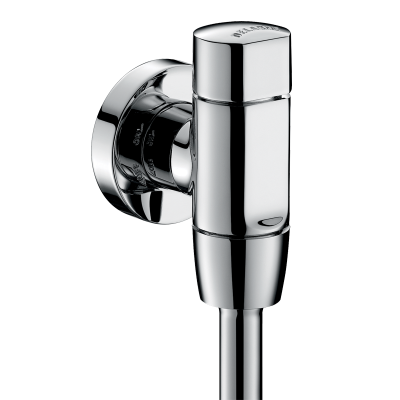

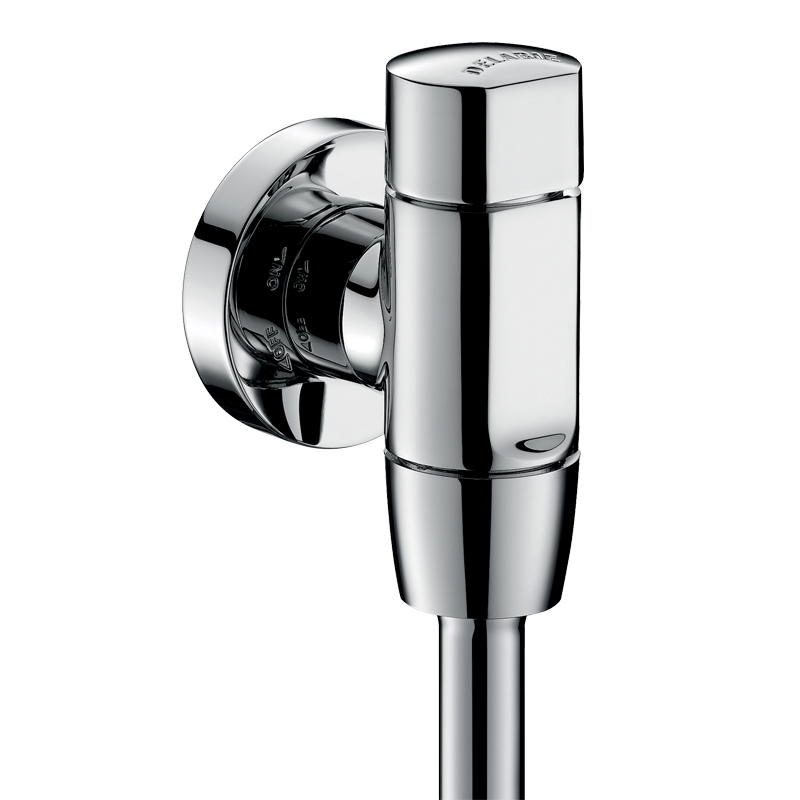

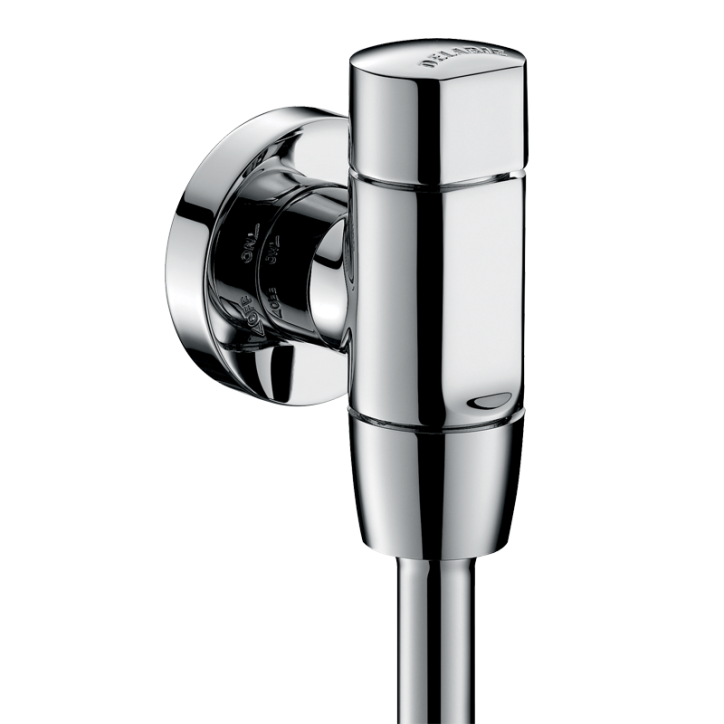

TEMPOFLUX urinal valve

Ref. 778757

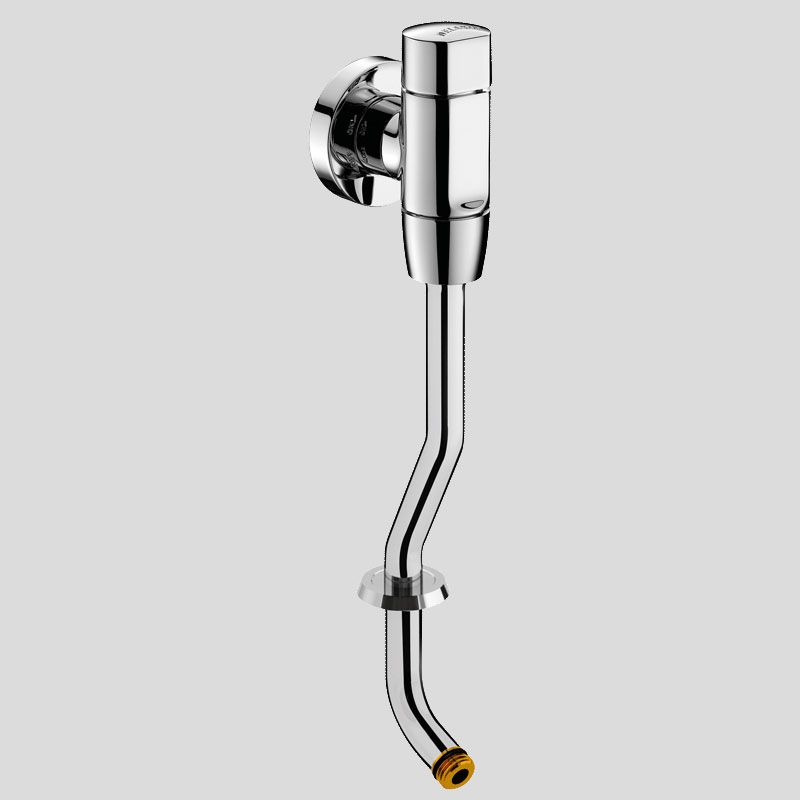

Exposed time flow urinal valve:

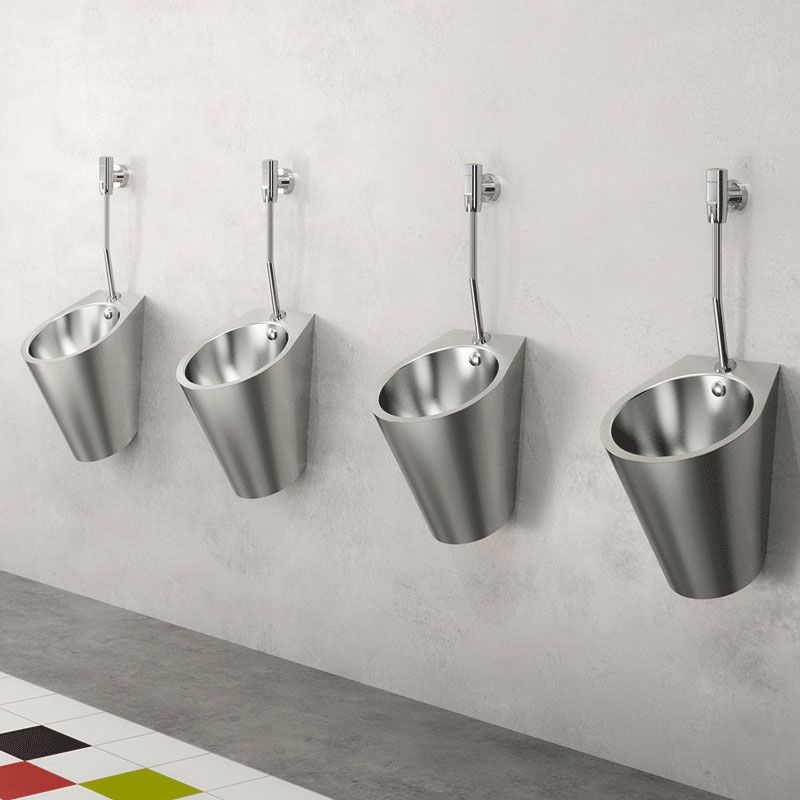

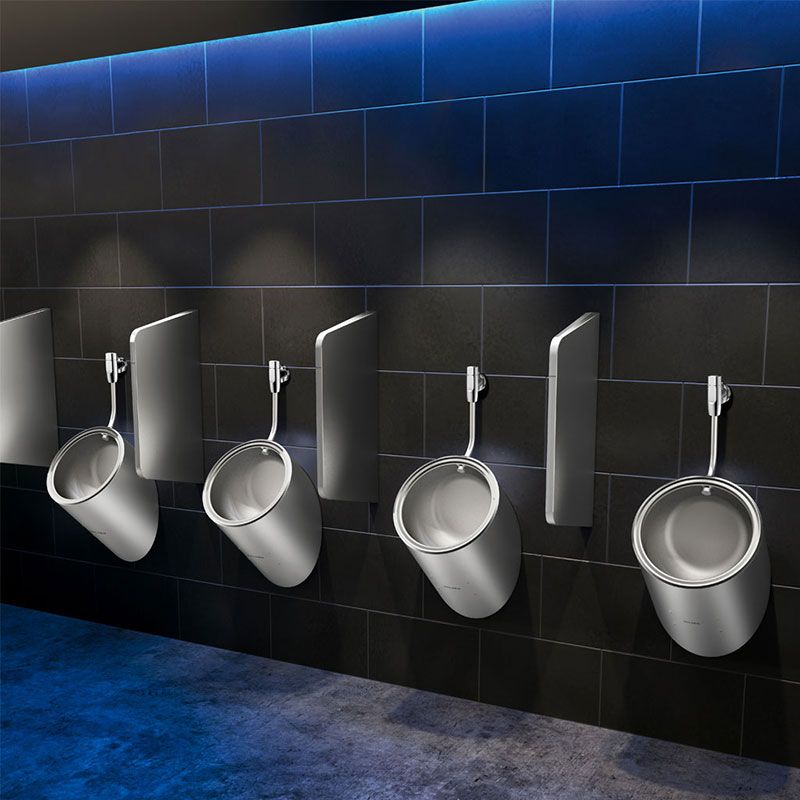

For DELABIE DELTA urinal
Soft-touch operation.
Shuts off automatically, timed to ~3 seconds.
Flow rate pre-set at 0.15 L/sec at 3 bar, can be adjusted up to 0.3 L/sec.
Innovative stopcock and flow rate adjustment system integrated in the wall plate (patent).
Compatible with rain water.
Complies with the European standard EN 12541 (class II accoustic level).

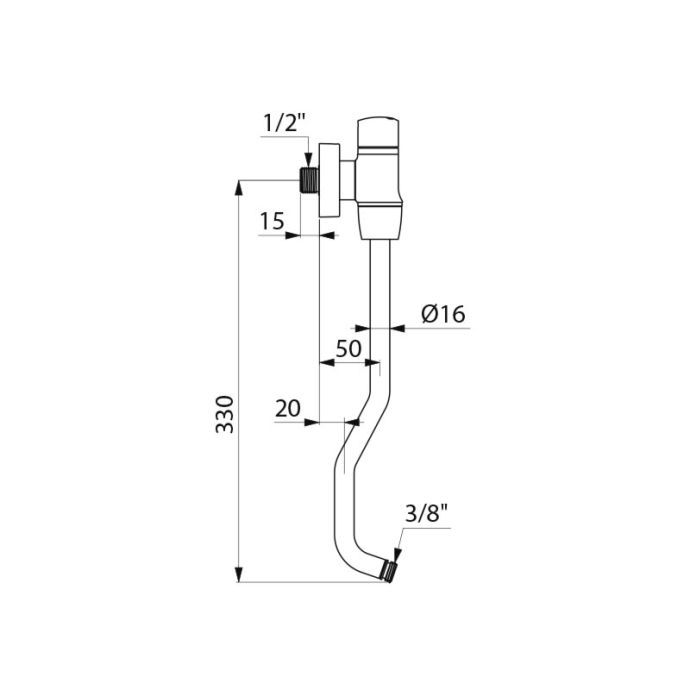

Chrome-plated solid brass body M½".
With chrome-plated neck tube.
Angled for recessed inlet.
Suitable for people with reduced mobility.
30-year warranty.

Advantages

Economie d'eau
Eco time flow 3 seconds
Confort - Ergonomie - Déclenchement souple
Soft-touch operation
Maintenance aisée - Installation aisée
Stopcock built-in to wall plate
Design
Sleek and slim design

Associated products

Adjustable height floor trap

For tiles or concrete floors

Ref. 683001UK

Adjustable height floor trap

For tiles or concrete floors

Ref. 682001UK

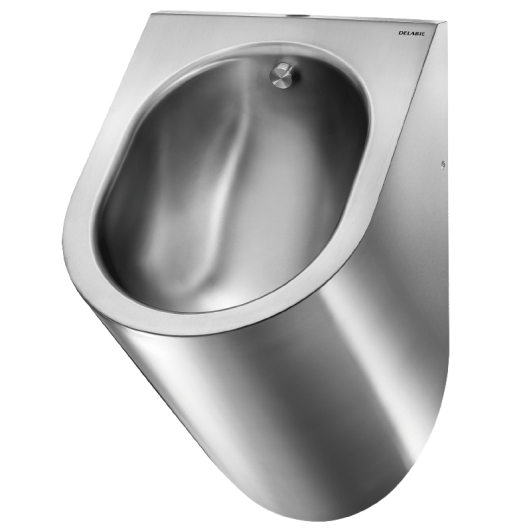

DELTA wall-hung urinal
