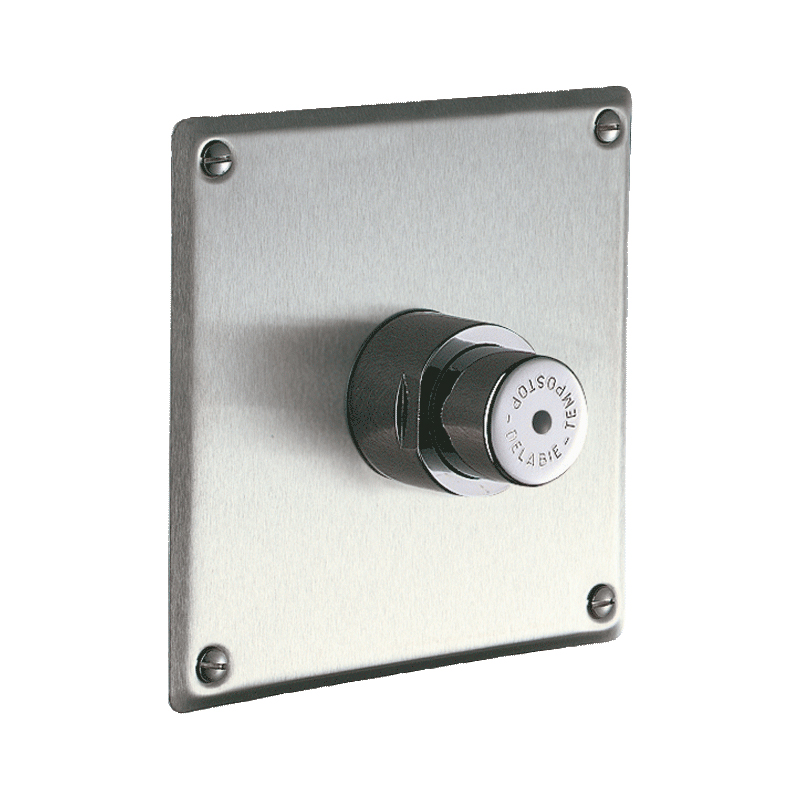

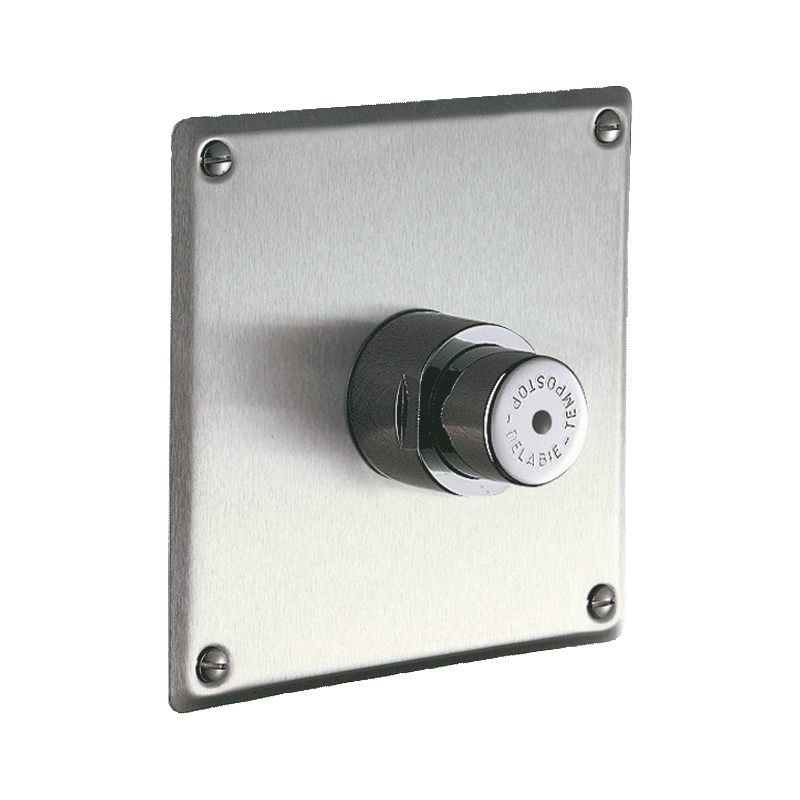

TEMPOSTOP time flow urinal valve - lead-free version

Ref. 779427LF
7-second time flow, lead-free version
See variants See variants
TEMPOSTOP time flow urinal valve - lead-free version

Presentation

DESCRIPTION

TEMPOSTOP time flow urinal valve - lead-free version

Ref. 779427LF

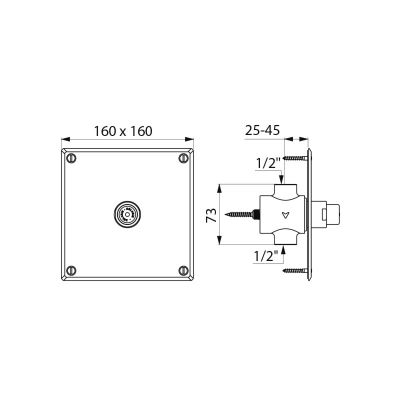

Recessed time flow urinal valve:
For standard or siphon action urinals.
Cross-wall installation.
Adjustable to recess depths from 25 to 45 mm.
Stainless-steel plate 160 x 160 mm.
Compatible with rain water.
Time flow ~7 seconds.
Flow rate pre-set at 0,25 l/sec at 3 bar, adjustable.
Lead-free brass body F1/2".
30-year warranty.

This sanitary ware model is not supplied with recessed waterproof housing, the installer must ensure the impermeability of recessed housing as well as draining any potential leaks and condensation (see installation guide).

ADVANTAGES

Sans plomb

Lead-free brass

Economie d'eau

7-second time flow

Anti-vandalisme

Cross-wall installation

Endurance - Fiabilité

Withstands over 500,000 operations

Characteristics

TECHNICAL CHARACTERISTICS

TEMPOSTOP time flow urinal valve - lead-free version

Ref. 779427LF
Connector 1/2"
Height 160 mm
Length 160 mm
Flow rate 0,25 l/sec
Warranty 30-Year
TEMPOSTOP time flow urinal valve - lead-free version
Ref. 779427LF

Downloads

DOWNLOADS

TEMPOSTOP time flow urinal valve - lead-free version

Ref. 779427LF

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

779427 Time flow 7s, recessing depth 20 to 45mm, brass connector F½"

Associated products

VARIANTS

779427 Time flow 7s, recessing depth 20 to 45mm, brass connector F½"
