DESCRIPTION

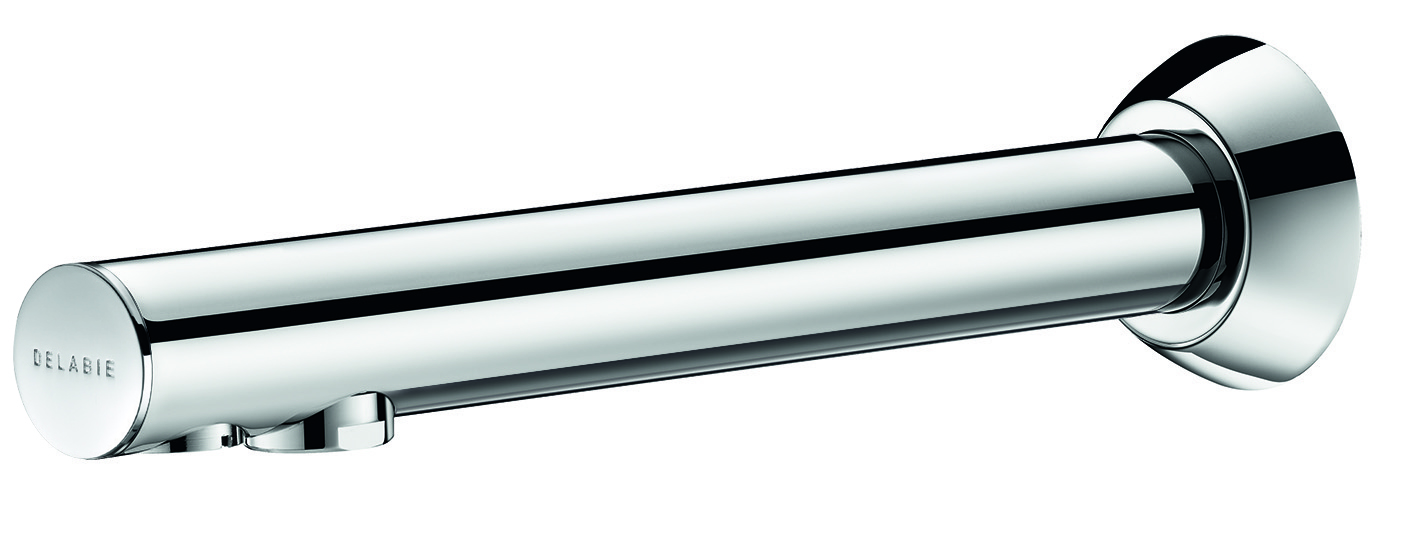

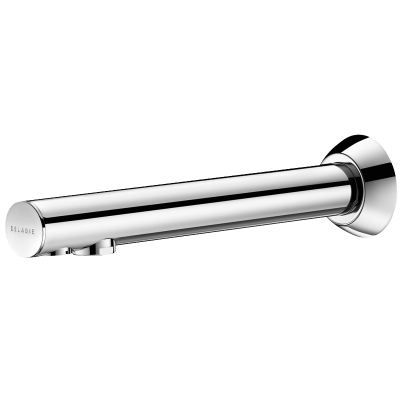

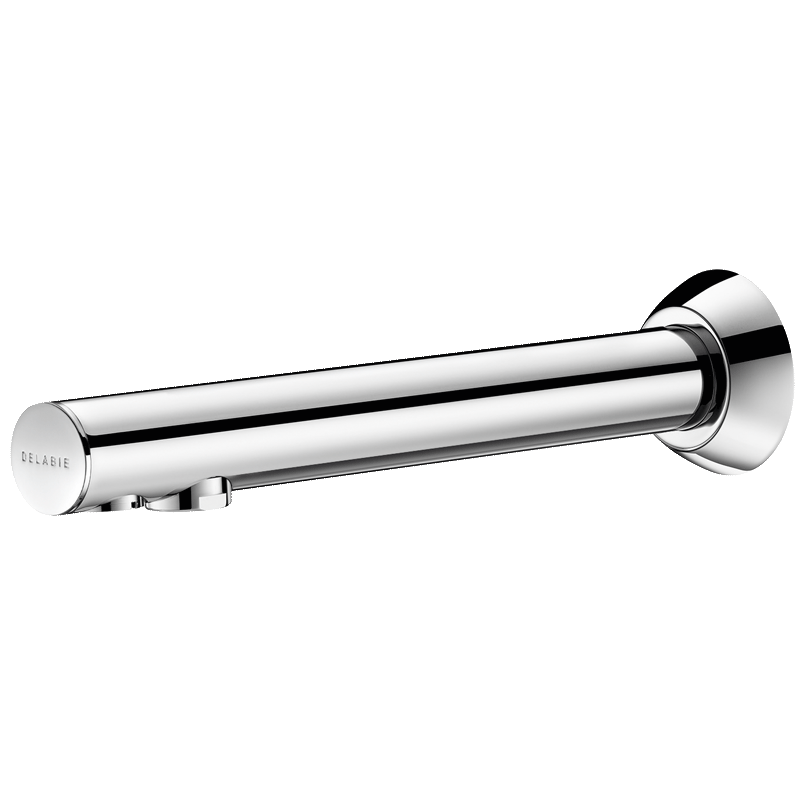

BINOPTIC electronic tap
Ref. 379ENC15Recessed electronic basin tap:
Independent IP65 electronic control unit.
230/12V mains supply with transformer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Scale-resistant flow straightener.
Duty flush (pre-set flush ~60 seconds every 24 hours after last use).
Active, infrared movement detection, sensor at the end of the spout optimises detection.
Filter, solenoid valve and Ø 15mm conical inlet.
Chrome-plated solid brass body.
Chrome-plated spout L. 200mm for recessed installation.
Anti-blocking security.
Spout with a smooth interior and low water volume (limits bacterial niches).
30-year warranty.
Independent IP65 electronic control unit.
230/12V mains supply with transformer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Scale-resistant flow straightener.
Duty flush (pre-set flush ~60 seconds every 24 hours after last use).
Active, infrared movement detection, sensor at the end of the spout optimises detection.
Filter, solenoid valve and Ø 15mm conical inlet.
Chrome-plated solid brass body.
Chrome-plated spout L. 200mm for recessed installation.
Anti-blocking security.
Spout with a smooth interior and low water volume (limits bacterial niches).
30-year warranty.
ADVANTAGES

Exceptional water savings: 90%

Hygiene: no manual contact

Duty flush limits bacterial proliferation

LED diagnostic aid

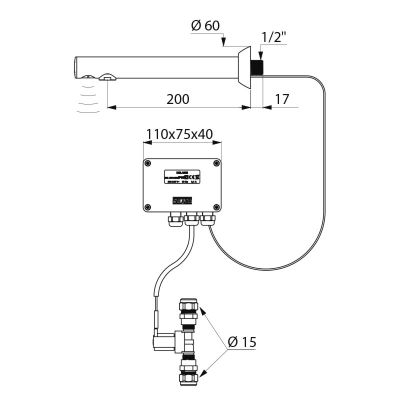

TECHNICAL CHARACTERISTICS
BINOPTIC electronic tap
Ref. 379ENC15| Supply | 230/12V mains supply |
| Connector | M1/2'' Ø 15mm |
| Technology | Electronic |
| Spout length | 200mm |
| Flow rate | 3 lpm |
| Certificates |
|
| Warranty | |
VARIANTS
| 379ENCL | Recessed - Spout L. 252mm | ||
|---|---|---|---|
| 379ENC | Recessed - Spout L.200mm | ||
| 379DER | For walls from 1 to 190mm - Spout L. 205mm | ||
| 379DER15 | For walls 1 - 190mm - Spout L. 205mm - Ø15mm compression fittings | ||
| 379D13 | For walls from 1 to 190mm - Spout L. 135mm | ||
| 379D1315 | For walls 1 - 190mm - Spout L. 135mm - Ø15mm compression fittings |
