DESCRIPTION

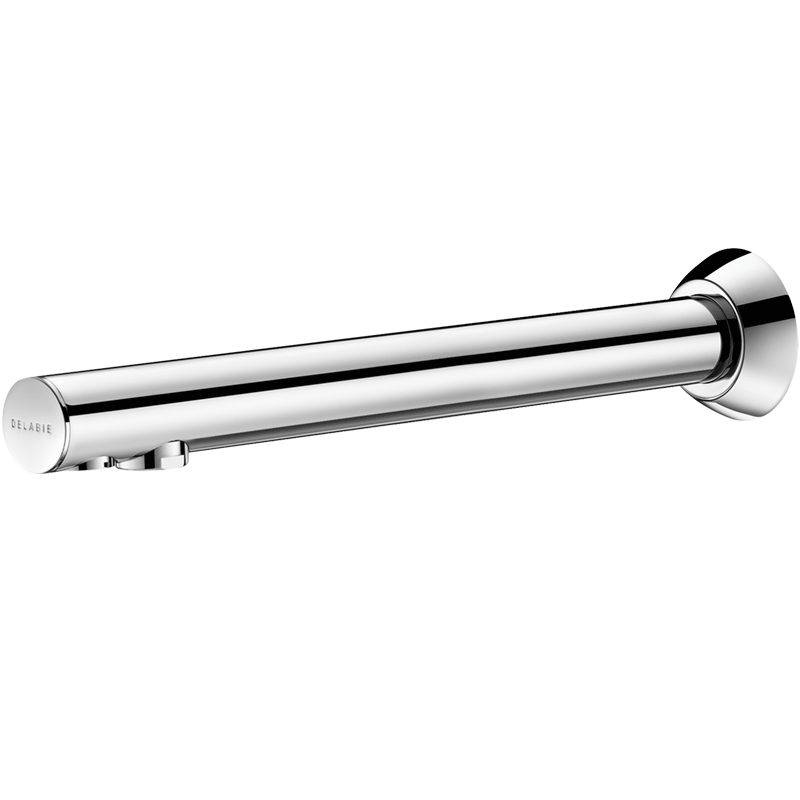

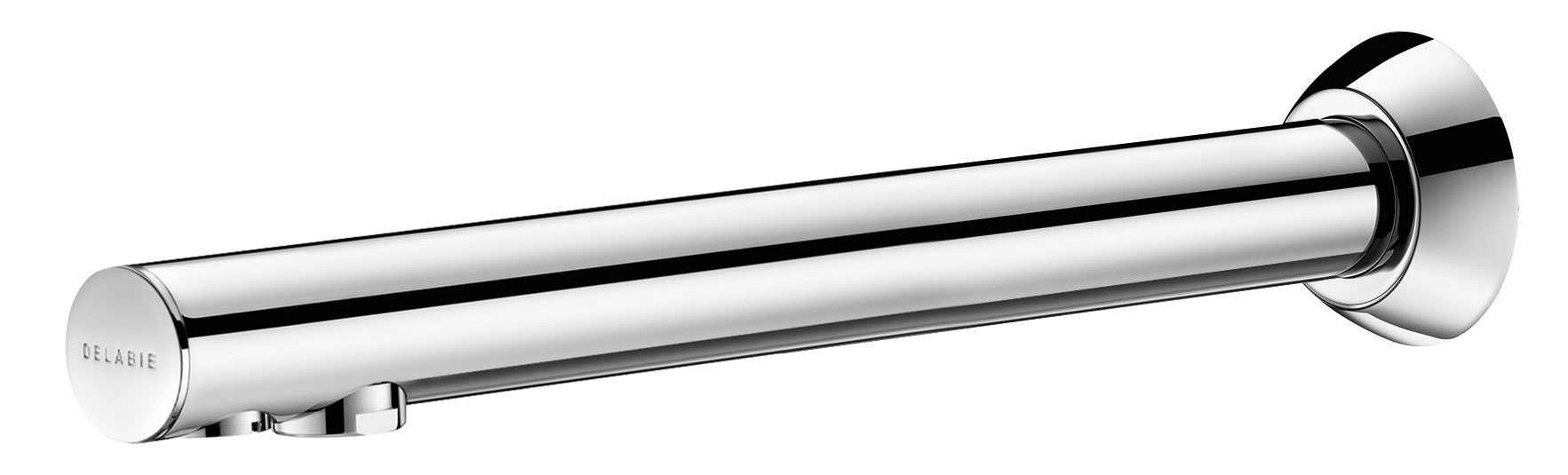

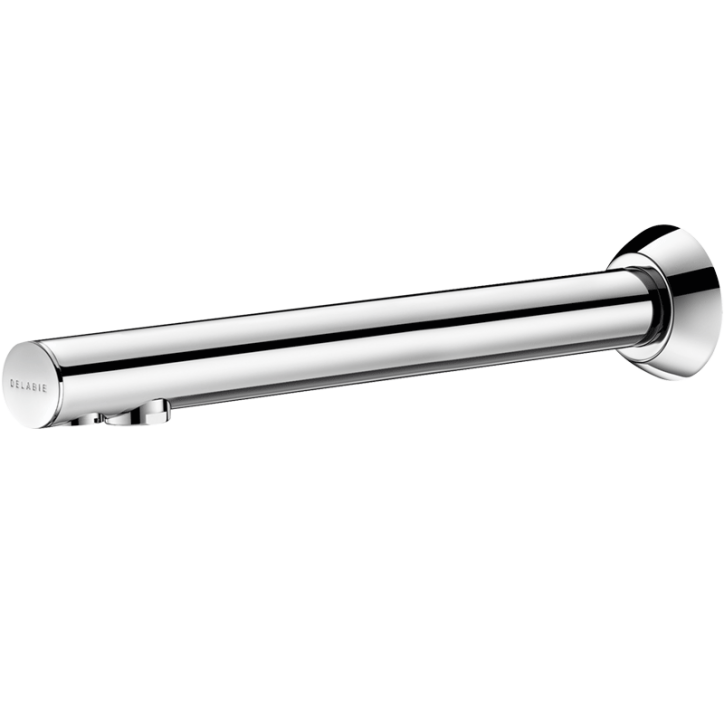

BINOPTIC electronic basin tap
Ref. 379ENCLRecessed electronic basin tap:
Independent IP65 electronic control unit.
230/12V mains supply with transformer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Scale-resistant flow straightener.
Adjustable duty flush (pre-set flush ~60 seconds every 24 hours after last use).
Active, infrared presence detection, sensor at the end of the spout optimises detection.
Filter and solenoid valve M3/8".
Chrome-plated brass body.
Chrome-plated spout for recessed installation.
Anti-blocking security.
Spout with smooth interior and low volume of water (limits bacterial niches).
Suitable for people with reduced mobility.
30-year warranty.
Independent IP65 electronic control unit.
230/12V mains supply with transformer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Scale-resistant flow straightener.
Adjustable duty flush (pre-set flush ~60 seconds every 24 hours after last use).
Active, infrared presence detection, sensor at the end of the spout optimises detection.
Filter and solenoid valve M3/8".
Chrome-plated brass body.
Chrome-plated spout for recessed installation.
Anti-blocking security.
Spout with smooth interior and low volume of water (limits bacterial niches).
Suitable for people with reduced mobility.
30-year warranty.
ADVANTAGES
Exceptional water savings: 90%
Hygiene: no manual contact
LED diagnostic aid
Independent IP65 electronic control unit

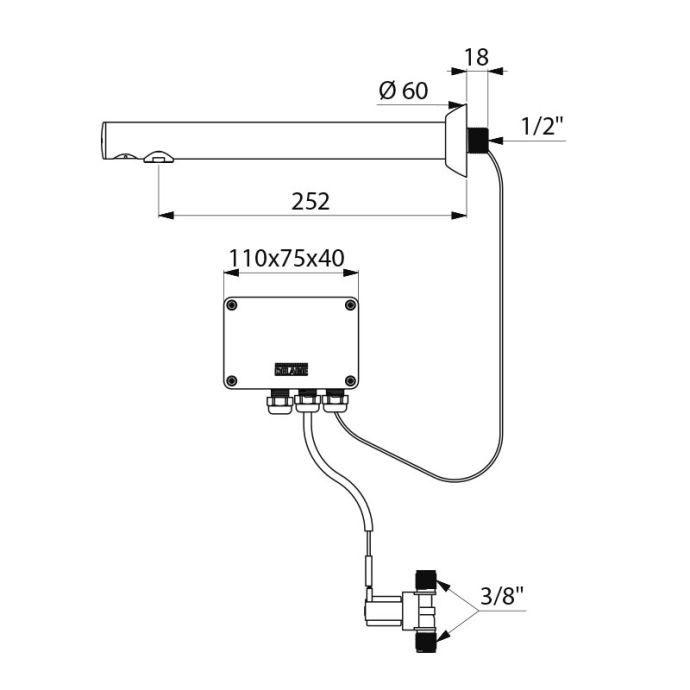

TECHNICAL CHARACTERISTICS
BINOPTIC electronic basin tap
Ref. 379ENCLSupply | 230/12V mains supply |
Connector | M3/8" |
Technology | Electronic |
Spout length | 252mm |
Flow rate | 3 lpm |
Warranty |
VARIANTS
379ENC | Recessed - Spout L.200mm | ||
---|---|---|---|
379ENC15 | Recessed - Spout L.200mm - Ø15mm compression fittings | ||
379DER | For walls from 1 to 190mm - Spout L. 205mm | ||
379DER15 | For walls 1 - 190mm - Spout L. 205mm - Ø15mm compression fittings | ||
379D13 | For walls from 1 to 190mm - Spout L. 135mm | ||
379D1315 | For walls 1 - 190mm - Spout L. 135mm - Ø15mm compression fittings |
VARIANTS
379ENC | Recessed - Spout L.200mm | ||
---|---|---|---|
379ENC15 | Recessed - Spout L.200mm - Ø15mm compression fittings | ||
379DER | For walls from 1 to 190mm - Spout L. 205mm | ||
379DER15 | For walls 1 - 190mm - Spout L. 205mm - Ø15mm compression fittings | ||
379D13 | For walls from 1 to 190mm - Spout L. 135mm | ||
379D1315 | For walls 1 - 190mm - Spout L. 135mm - Ø15mm compression fittings |
