Floor trap

Ref. 683002DE
For soft or vinyl floors
See variants See variants
Floor trap

Presentation

DESCRIPTION

Floor trap

Ref. 683002DE

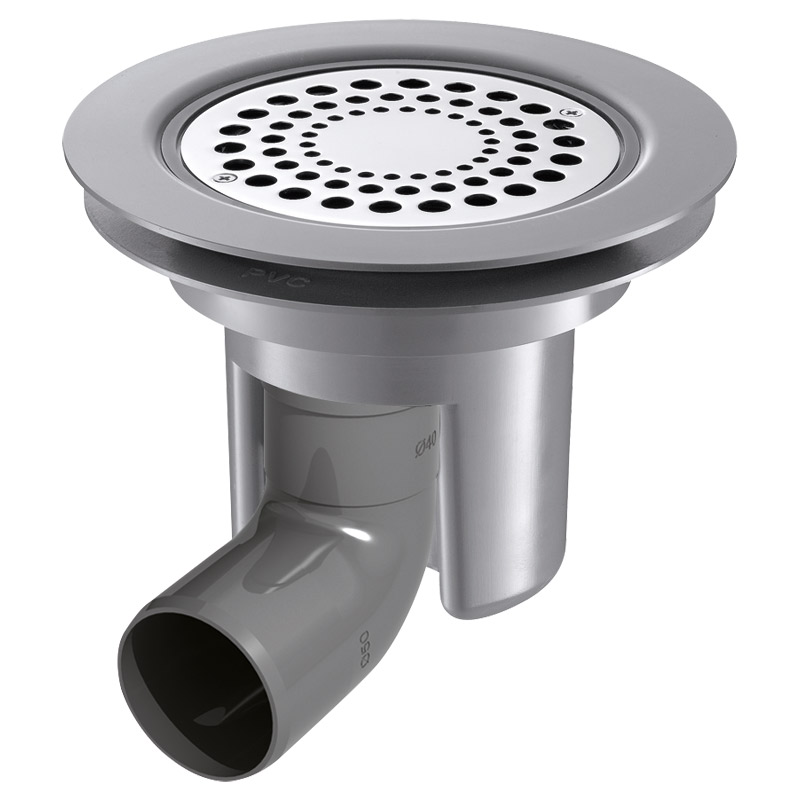

Floor trap for soft or vinyl floors with adjustable height:
Flow rate 36 lpm (meets standards).
Water level 50mm.
Bright polished stainless steel grid Ø 114mm.
Horizontal (elbow joint Ø 40mm) integrated into the height of the floor trap (saves height and space in all dimensions).
Integrated waterproof plate to seal waterproof membrane.
Withstands high temperatures: 60°C continuous, 85°C peak.
Plunger with handle: easy to grip and easy to clean.
Smooth PVC body (prevents build-up of impurities).
Classified non-flammable (American certification UL94).
Height adjusts up to 85mm with extension.
Grid fixed by 2 stainless steel screws.
30-year warranty.

ADVANTAGES

Maintenance aisée - Installation aisée

Adapted to floor type, adjustable height

Nettoyage aisé

Plunger with handle, smooth body

Anti-vandalisme

Tamperproof stainless steel grid

Characteristics

TECHNICAL CHARACTERISTICS

Floor trap

Ref. 683002DE
Height 195mm max
Flow rate 36 lpm
Warranty 30-Year
Floor trap
Ref. 683002DE

Downloads

DOWNLOADS

Floor trap

Ref. 683002DE

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

683002 Ø 40mm outlet - soft or vinyl floors - 150 x 150mm - Height ≤ 85mm
683002UK Ø 43mm outlet - soft or vinyl floors - Ø 114mm - Height ≤ 85mm

Associated products

VARIANTS

683002 Ø 40mm outlet - soft or vinyl floors - 150 x 150mm - Height ≤ 85mm
683002UK Ø 43mm outlet - soft or vinyl floors - Ø 114mm - Height ≤ 85mm
