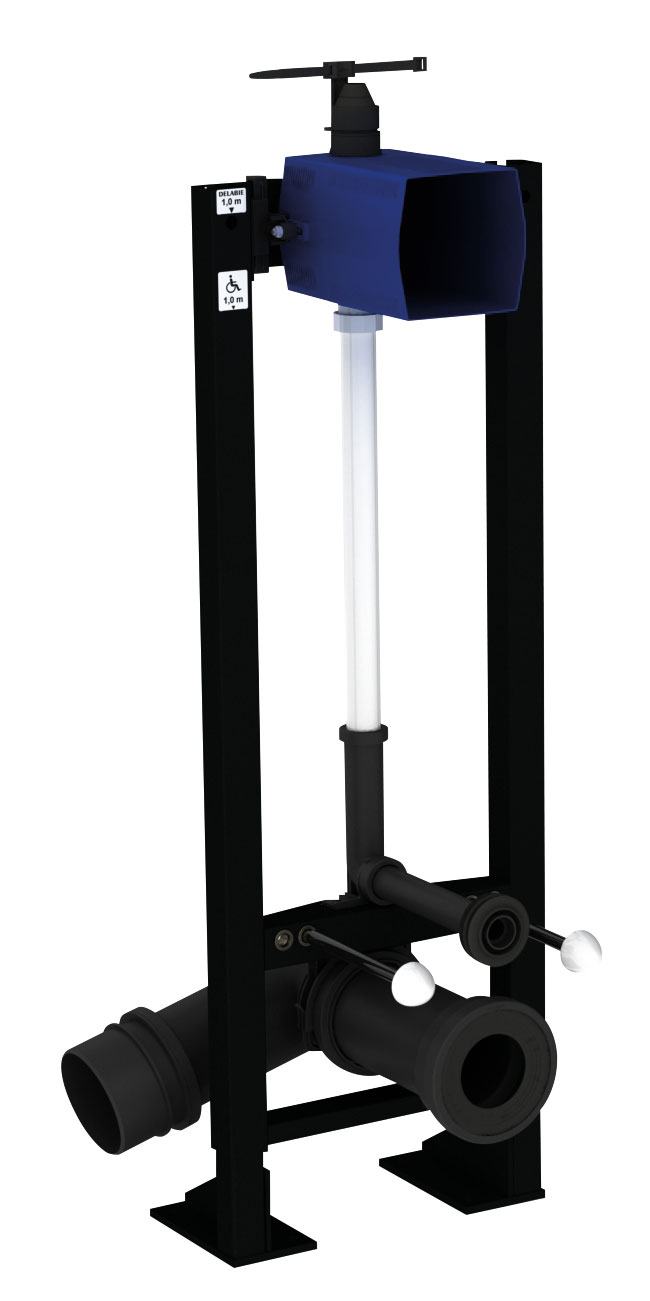

TEMPOFIX 3 self-supporting frame system for WCs
Ref. 564005DE
For dual control TEMPOMATIC electronic mains supply valve - Ø 110mm
For dual control TEMPOMATIC electronic mains supply valve - Ø 110mm
DESCRIPTION
TEMPOFIX 3 self-supporting frame system for WCs
Ref. 564005DESelf-supporting frame system for wall-hung WCs, kit 1/2:
Black powder-coated steel frame:
- With large feet for fixing to load-bearing floors.
- Frame height can be adjusted from 0 - 200mm (with 1m mark).
- Compatible with solid walls from 10 - 120mm.
- Ø 32mm flush tube with Ø 55mm connection washer.
- ABS soil pipe, Ø 110mm HDPE outlet with waterproof seal, with 2 setting positions.
Recessed waterproof housing: flush system without cistern, directly connected to pipework.
- Compatible with TEMPOMATIC dual control or TEMPOMATIC Connect electronic WC valves.
- Compatible with 230/6V mains supply.
- Backflow prevention device inside the housing.
- Integrated stopcock and flow rate regulation.
Supplied pre-mounted.
30-year warranty.
Order with control plate references 464000, 464050, 465000 or 465050.
Black powder-coated steel frame:
- With large feet for fixing to load-bearing floors.
- Frame height can be adjusted from 0 - 200mm (with 1m mark).
- Compatible with solid walls from 10 - 120mm.
- Ø 32mm flush tube with Ø 55mm connection washer.
- ABS soil pipe, Ø 110mm HDPE outlet with waterproof seal, with 2 setting positions.
Recessed waterproof housing: flush system without cistern, directly connected to pipework.
- Compatible with TEMPOMATIC dual control or TEMPOMATIC Connect electronic WC valves.
- Compatible with 230/6V mains supply.
- Backflow prevention device inside the housing.
- Integrated stopcock and flow rate regulation.
Supplied pre-mounted.
30-year warranty.
Order with control plate references 464000, 464050, 465000 or 465050.
ADVANTAGES
Quick and easy to install: delivered pre-mounted
Space-saving
Adapt to wall thickness
Compatible with mains supply
TECHNICAL CHARACTERISTICS
TEMPOFIX 3 self-supporting frame system for WCs
Ref. 564005DE| Connector | ¾" |
| Technology | Electronic and time flow |
| Height | 1000 to 1320mm |
| Depth | 157 - 177mm |
| Width | 350mm |
| Diameter | Ø 110mm outlet |
| Finish | Black powder-coated steel |
| Warranty |
|
VARIANTS
| 564005 | Mains supply - Self-supporting- Ø100mm outlet connecton - For walls 10 - 120mm | ||
|---|---|---|---|
| 564005BE | Mains supply- self-supporting- for walls 10-120mm- F¾" - Ø90mm outlet | ||
| 564065 | Time flow or batteries- self-supporting- for walls 10-120mm- F¾" - Ø100mm outlet | ||
| 564065BE | Time flow or batteries- self-supporting- for walls 10-120mm -F¾"- Ø 90mm outlet | ||
| 564065DE | Time flow or batteries - self-supporting- for walls 10-120mm - F¾" - Ø 110mm outlet |
This intelligent, electronic direct flush valve functions without a cistern. Discover its advantages in this video
