TEMPOMIX time flow shower panel

Ref. 790204
Time flow single control
See variants See variants
TEMPOMIX time flow shower panel

Presentation

DESCRIPTION

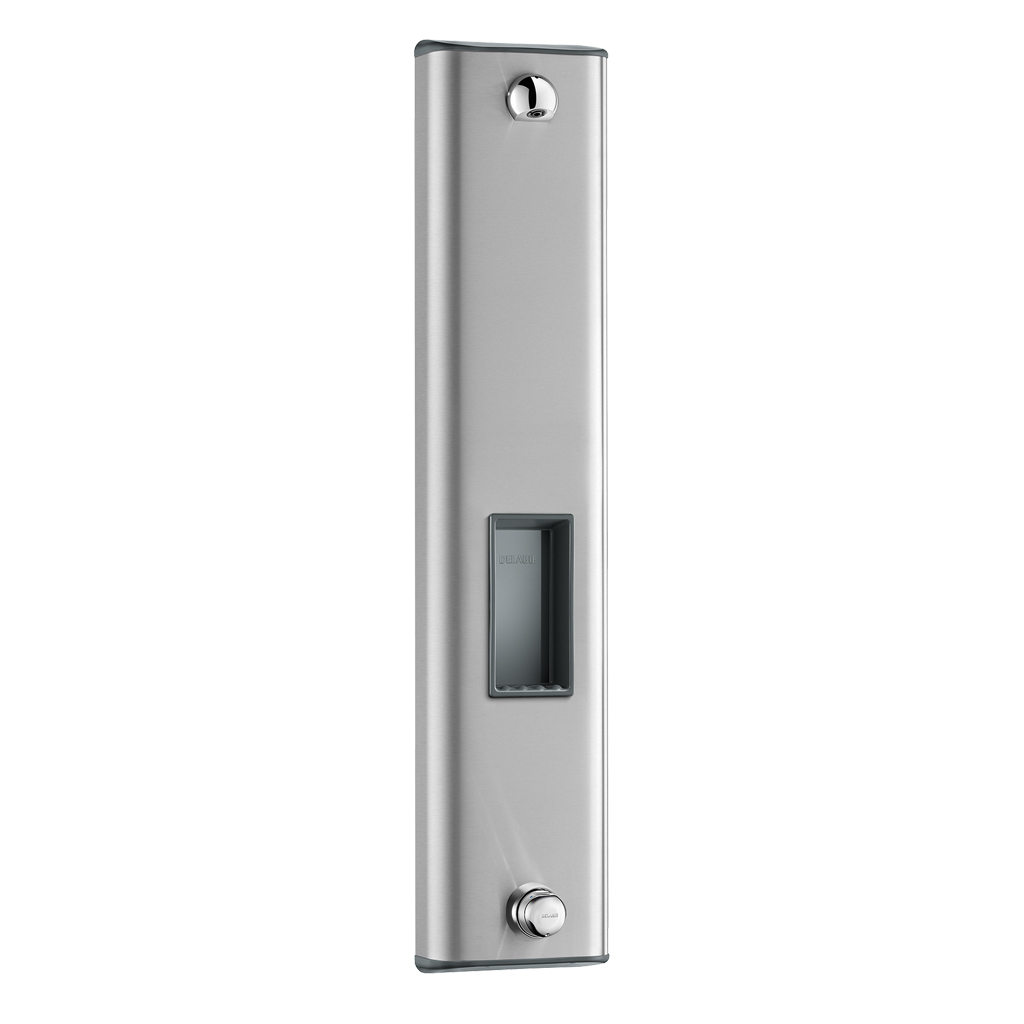

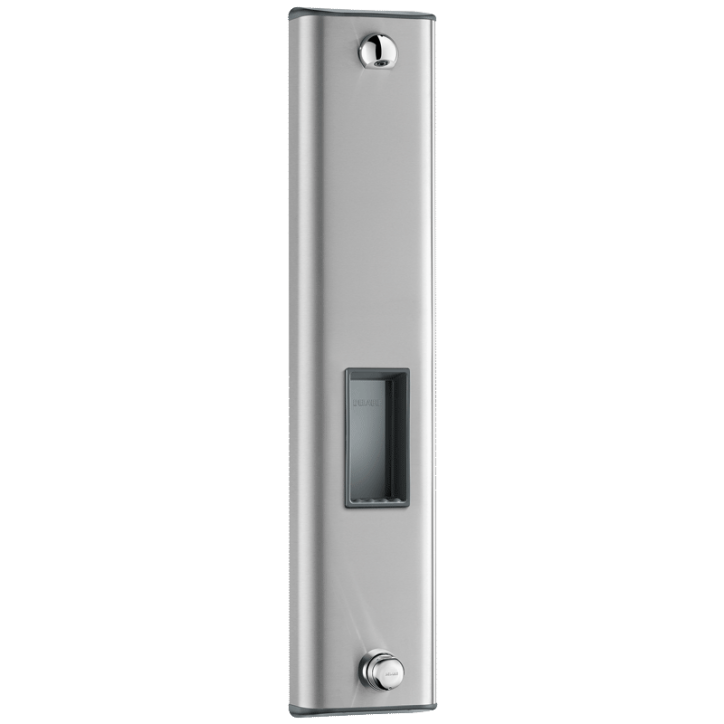

TEMPOMIX time flow shower panel

Ref. 790204
Time flow shower panel with fixed shower head:
Large model satin stainless steel panel for wall-mounted, exposed installation.
With top inlet via in-line stopcocks M½".
TEMPOMIX shower mixer with adjustable maximum temperature limiter.
Soft-touch operation.
Time flow ~30 seconds.
Flow rate 6 lpm at 3 bar.
Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation.
Integrated soap dish.
Concealed fixings.
Filters and non-return valves.
Stopcocks.
Shower panel suitable for people with reduced mobility.
30-year warranty.

ADVANTAGES

Economie d'eau

80% water savings

Confort - Ergonomie - Déclenchement souple

Temperature control on the mixer

Anti-vandalisme

Stainless steel panel, brass controls

Characteristics

TECHNICAL CHARACTERISTICS

TEMPOMIX time flow shower panel

Ref. 790204
Connector M½"
Technology Time flow

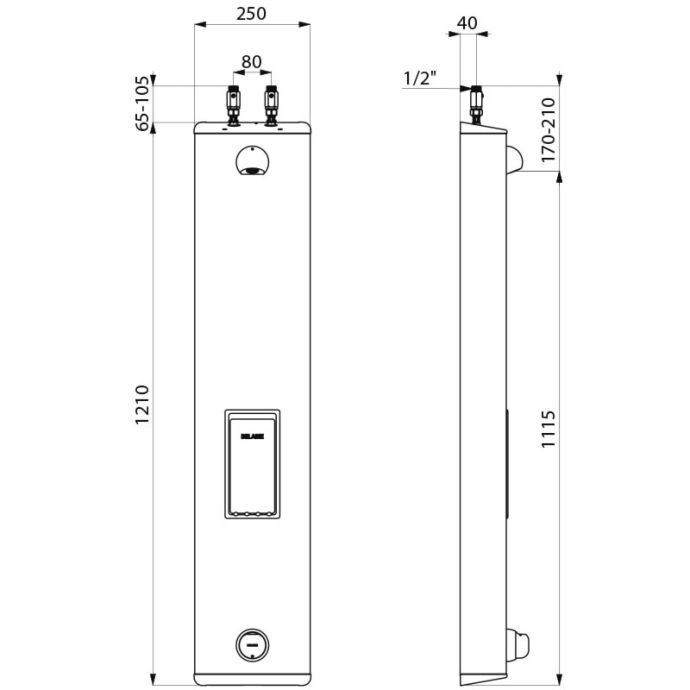

Height 1,220mm
Depth 100mm
Width 250mm
Flow rate 6 lpm
Finish Stainless steel
Certificates ACS DoP PZH
Warranty 30-Year
TEMPOMIX time flow shower panel
Ref. 790204

Downloads

DOWNLOADS

TEMPOMIX time flow shower panel

Ref. 790204

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

790214 Concealed inlet via flexibles M½"

Associated products

VARIANTS

790214 Concealed inlet via flexibles M½"
