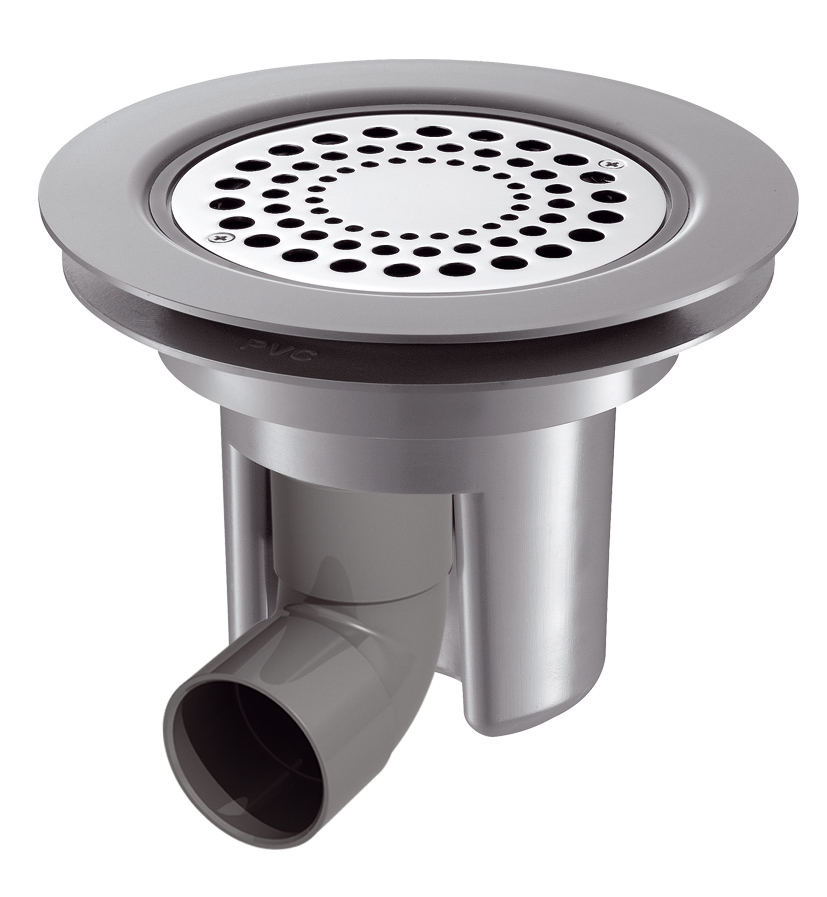

Floor trap

Ref. 683002UK
For soft or vinyl floors
Floor trap

Presentation

DESCRIPTION

Floor trap

Ref. 683002UK
Adjustable height floor trap for soft or vinyl floors:
Flow rate 36 lpm (standard).
Water level 50mm.
Bright polished stainless steel grid Ø 114mm.
Ø 43mm horizontal outlet integrated into the height of the floor trap (saves height and space in all dimensions).
Integrated waterproof plate to seal waterproof membrane.
Withstands high temperatures: 60°C continuous, 85°C peak.
Plunger with handle: easy to grip and easy to clean.
Smooth PVC body (prevents build-up of impurities).
Classified non-flammable (American certification UL94).
Height adjusts up to 85mm with extension.
Grid fixed by two stainless steel screws.
10-year warranty.

ADVANTAGES

Maintenance aisée - Installation aisée

Trap adapted to floor type, adjustable height

Nettoyage aisé

Plunger with handle, body free of impurities

Anti-vandalisme

Tamperproof stainless steel grid

Characteristics

TECHNICAL CHARACTERISTICS

Floor trap

Ref. 683002UK
Height 195mm max
Flow rate 36 lpm
Warranty Garantie 10 ans

Downloads

DOWNLOADS

Floor trap

Ref. 683002UK

To download one or several documents linked to this product, please select the type of file you require :
