Ref. 731003
Group thermostatic mixing valve, mixed water 32°-42°C
7 variants
731002 -
55 lpm - M3/4" - Dimensions: 120 x 60 x 18mm
731004 -
140 lpm - M1 1/4" - Dimensions: 180 x 90 x 26mm
731005 -
190 lpm - M1 1/2" - Dimensions: 195 x 98 x 26mm
731200 -
55 lpm - M3/4" - Dimensions: 120 x 81 x 18mm
731300 -
90 lpm - M1" - Dimensions: 146 x 95 x 23mm
731400 -
140 lpm - M1 1/4" - Dimensions: 180 x 107 x 26mm
731500 -
190 lpm - M1 1/4" - Dimensions: 218 x 129 x 26mm
PREMIX COMFORT

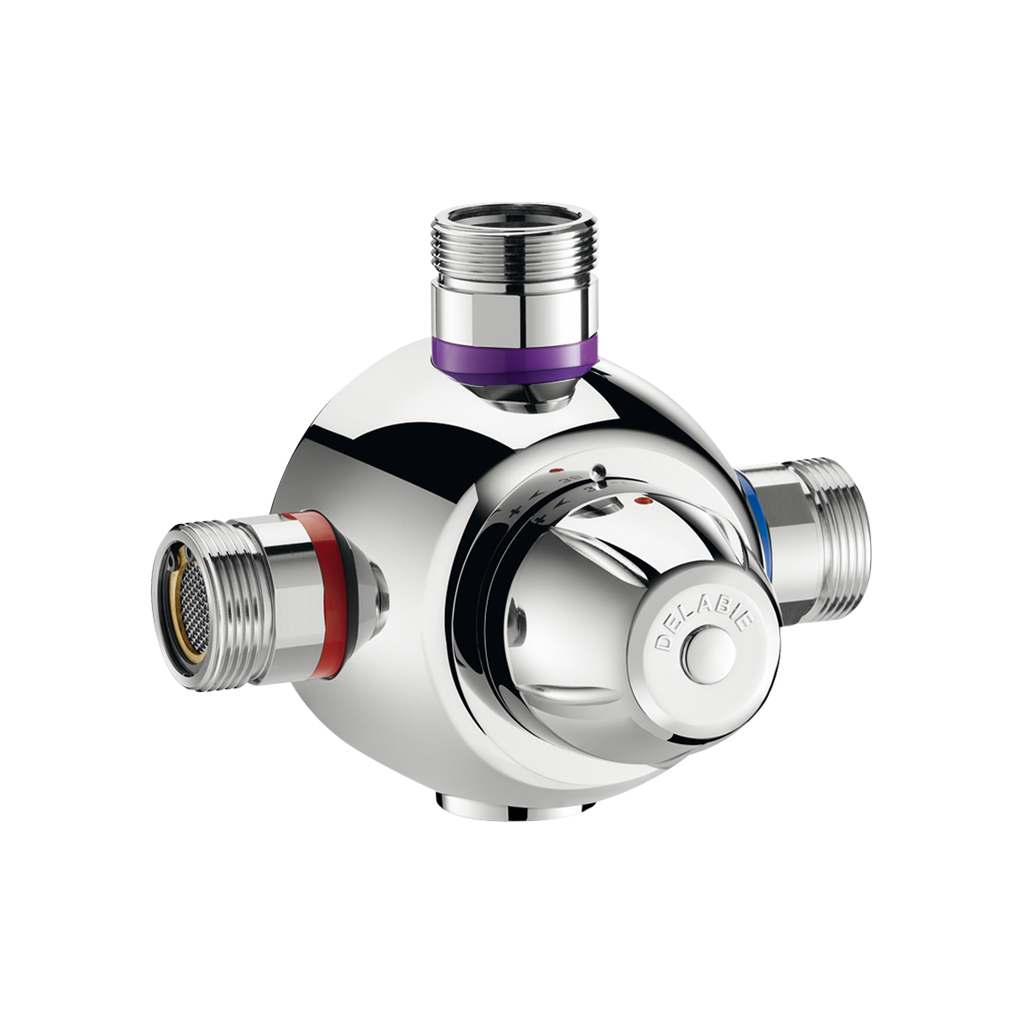

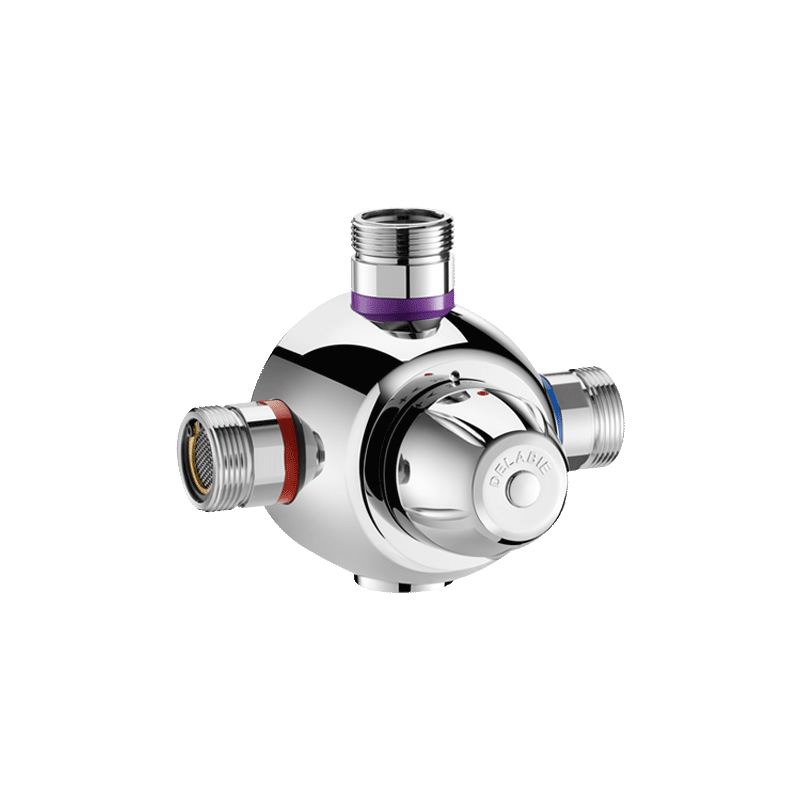

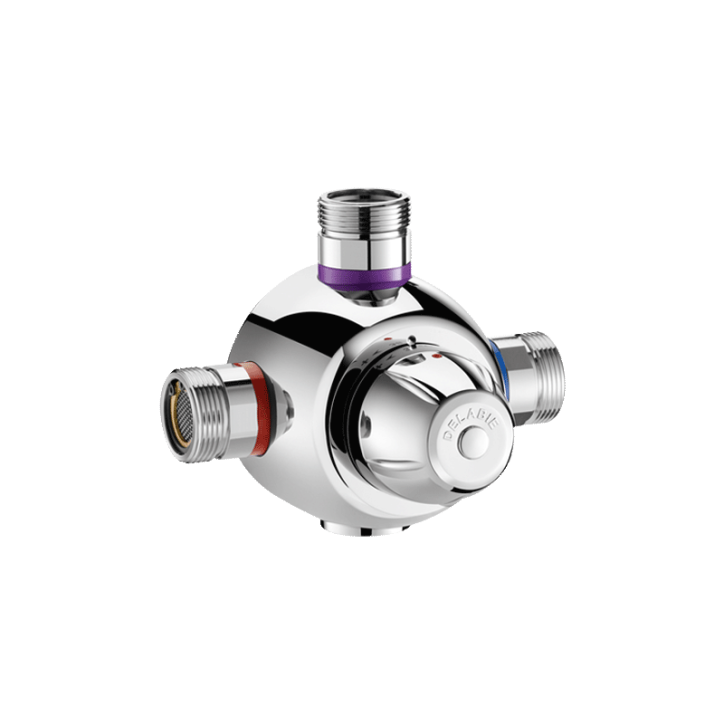

Ref. 731003
Group thermostatic mixing valve for mixed water from 32° - 42°C:
Anti-scalding safety.
Regulates temperature variations.

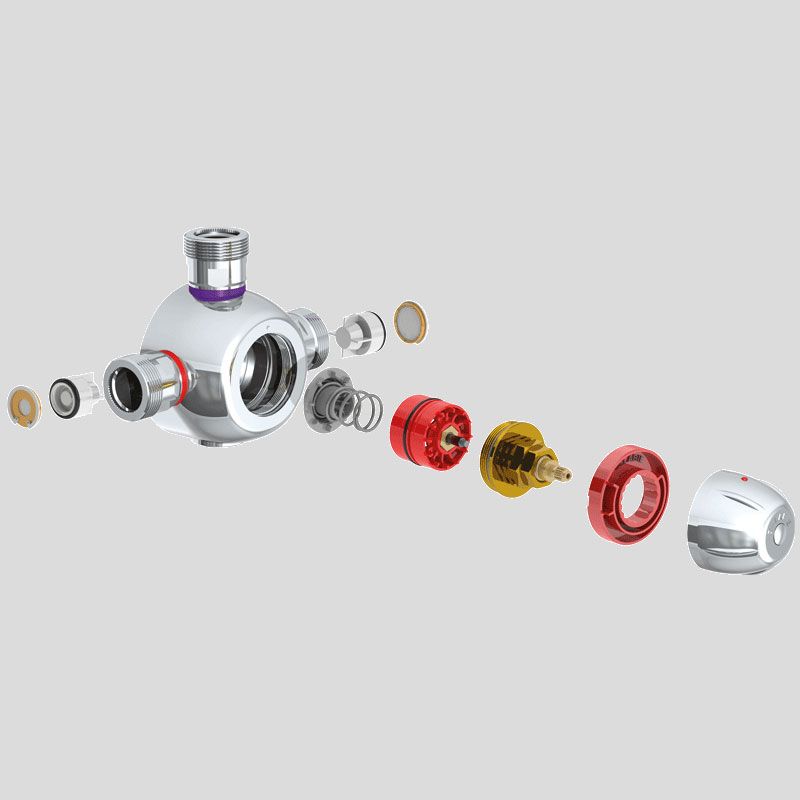

Filters and non-return valves can be accessed from the outside without removing the mechanism.
Thermal shock with no specific lever needed (push-button on the control knob).

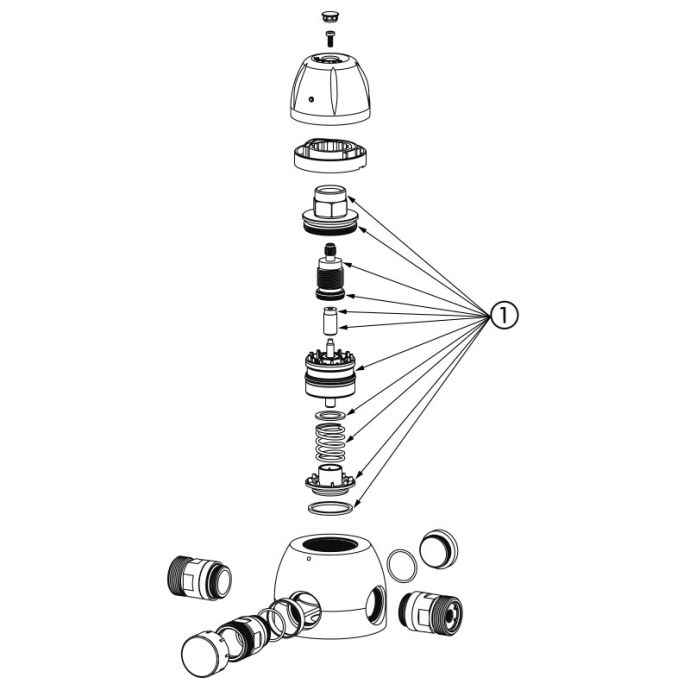

Interchangeable cartridge with thermo-reactive cell.
High-resistance chrome-plated brass body.
Maximum hot water temperature: 85°C.
Differential hot water / mixed water: 15°C minimum.
Pressure difference at the inlets: 1 bar maximum (0.5 bar recommended).
Minimum pressure / maximum: 1 - 10 bar (1 - 5 bar recommended).
Left hand side hot water inlet (red ring) and right hand side cold water inlet (blue ring).
Mixed water outlet at the top (purple ring).
For bottom outlet: unscrew / place lid at the top and outlet connector at the bottom.
Maximum temperature limiter, can be adjusted by the installer.
Reduced risk of scalding by limiting temperature at the point-of-use.
90 lpm - M1".
30-year warranty.
Anti-scalding safety.
Regulates temperature variations.
Filters and non-return valves can be accessed from the outside without removing the mechanism.
Thermal shock with no specific lever needed (push-button on the control knob).
Interchangeable cartridge with thermo-reactive cell.
High-resistance chrome-plated brass body.
Maximum hot water temperature: 85°C.
Differential hot water / mixed water: 15°C minimum.
Pressure difference at the inlets: 1 bar maximum (0.5 bar recommended).
Minimum pressure / maximum: 1 - 10 bar (1 - 5 bar recommended).
Left hand side hot water inlet (red ring) and right hand side cold water inlet (blue ring).
Mixed water outlet at the top (purple ring).
For bottom outlet: unscrew / place lid at the top and outlet connector at the bottom.
Maximum temperature limiter, can be adjusted by the installer.
Reduced risk of scalding by limiting temperature at the point-of-use.
90 lpm - M1".
30-year warranty.
Advantages
PREMIX COMFORT
Ref. 731003
Connector
M1"
Technology Thermostatic

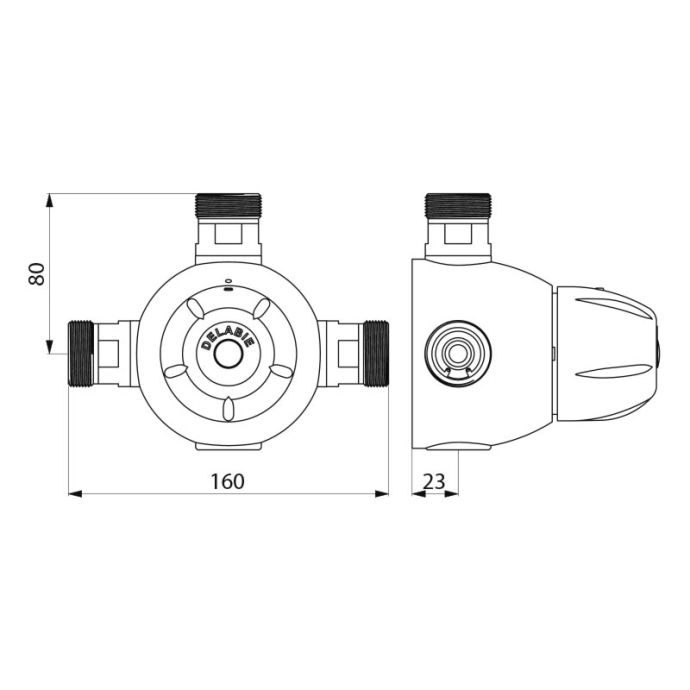

Height 80mm
Depth 23mm
Length 160mm
Flow rate 90 lpm
Certificates
Warranty
Repairability
Technology Thermostatic
Height 80mm
Depth 23mm
Length 160mm
Flow rate 90 lpm
Certificates
Warranty
Repairability
