Ref. 731400
For mixed water 32°-42°C
7 variants
731002 -
55 lpm - M3/4" - Dimensions: 120 x 60 x 18mm
731003 -
90 lpm - M1" - Dimensions: 160 x 80 x 23mm
731004 -
140 lpm - M1 1/4" - Dimensions: 180 x 90 x 26mm

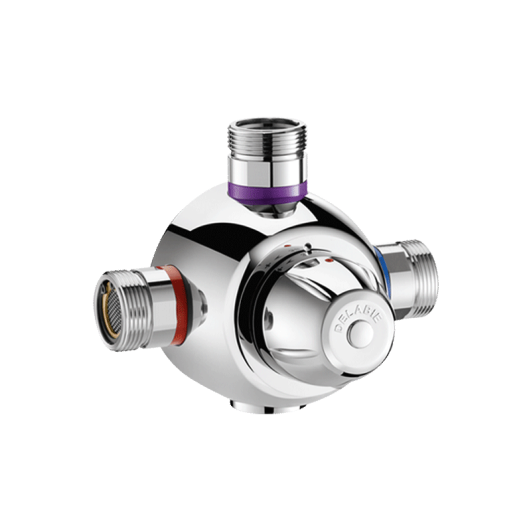

731005 -
190 lpm - M1 1/2" - Dimensions: 195 x 98 x 26mm
731200 -
55 lpm - M3/4" - Dimensions: 120 x 81 x 18mm
731300 -
90 lpm - M1" - Dimensions: 146 x 95 x 23mm
731500 -
190 lpm - M1 1/4" - Dimensions: 218 x 129 x 26mm

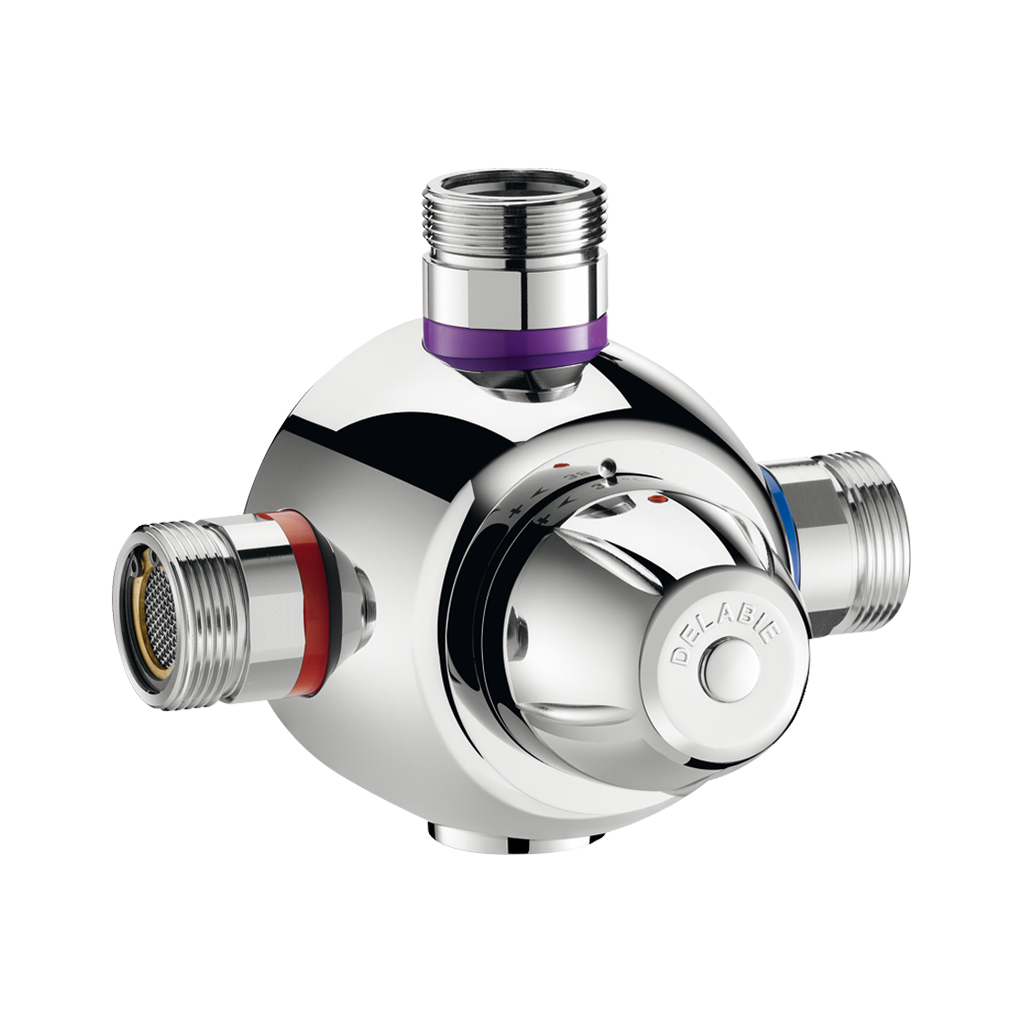

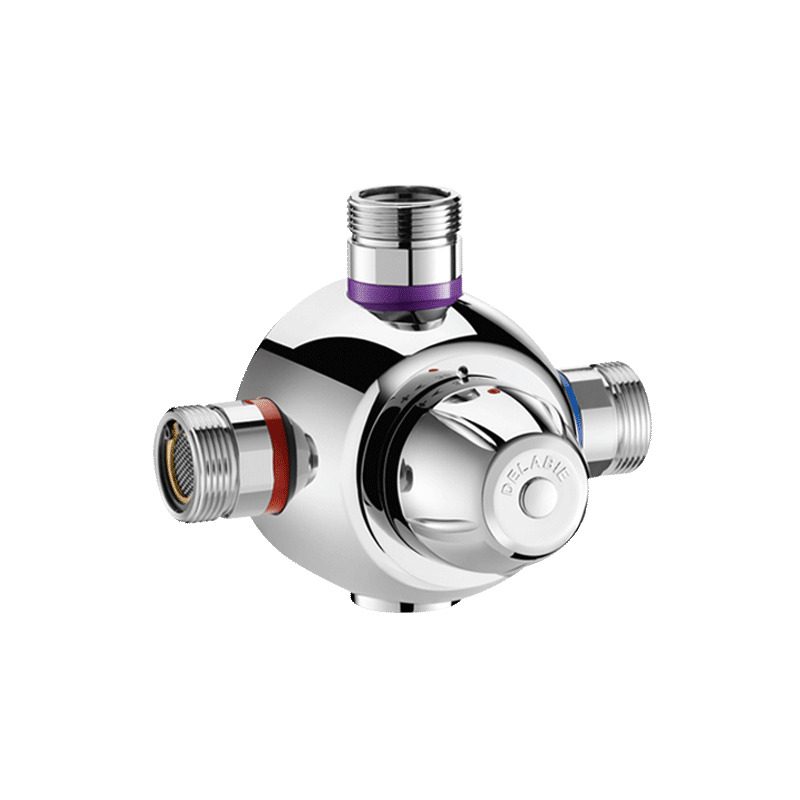

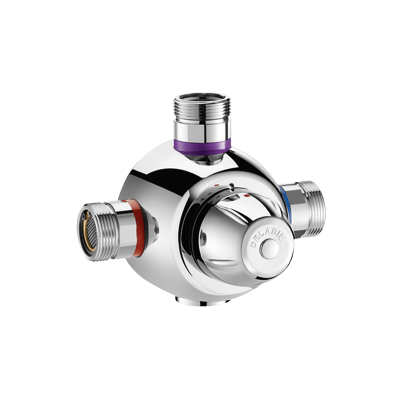

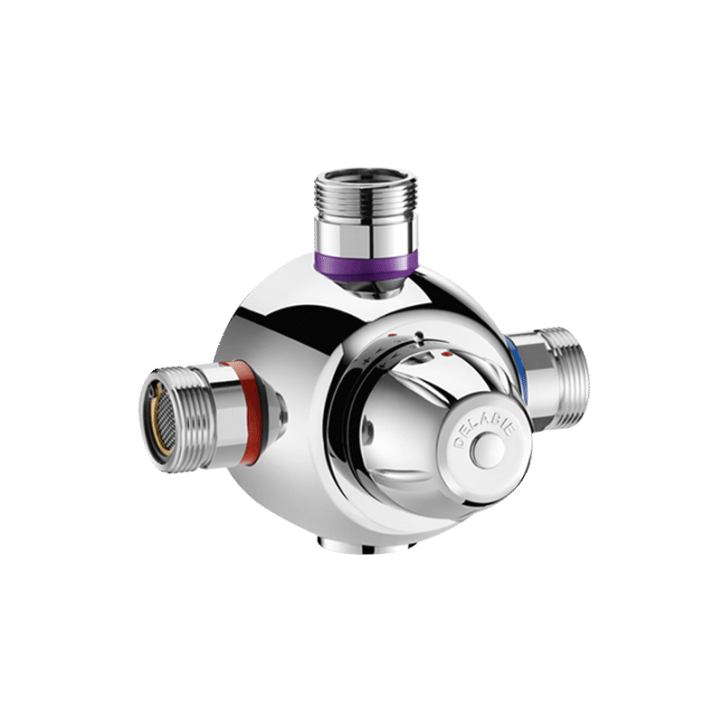

PREMIX COMFORT Group thermostatic mixing valve
Ref. 731400
Group thermostatic mixing valve for mixed water distribution from 32° to 42°C:
Anti-scalding safety.
Regulation of temperature variations.
Non-return valves and filters accessible from the exterior without having to remove the mechanism.
Thermal cartridge with no specific lever needed (push-button on the control knob).

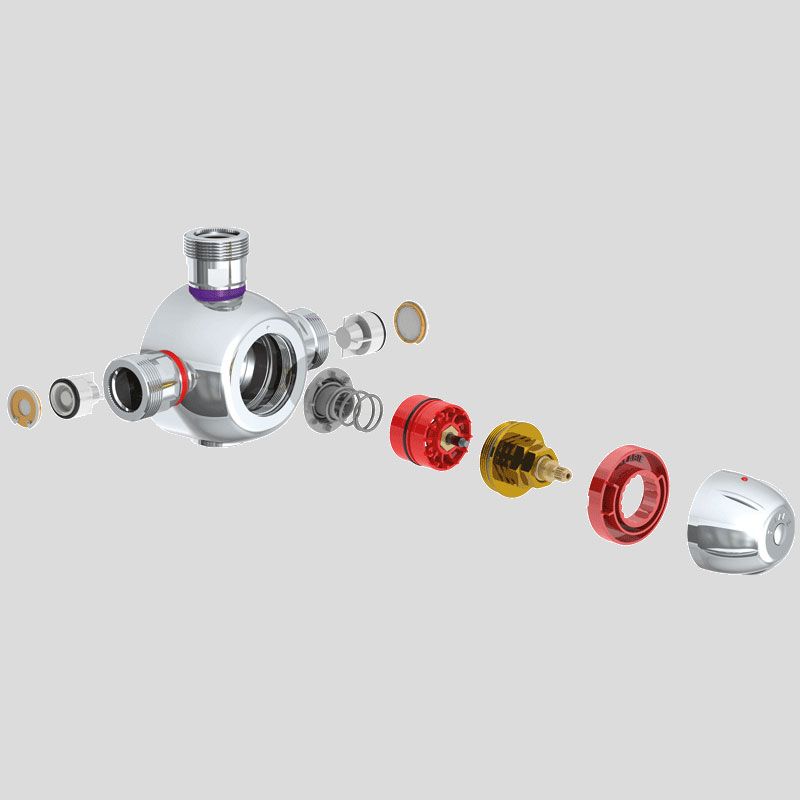

Interchangeable cartridge with thermo-reactive cell.
High-resistance chrome-plated brass body.
Maximum hot water temperature: 85°C.
Differential hot water / mixed water: 15°C mini.
Pressure differences at the entrance: 1 bar maximum (0.5 bar recommended).
Minimum pressure / maximum: 1 to 10 bar (1 to 5 bar recommended).
Left hand side hot water inlet (red ring) and right hand side cold water inlet (blue ring).
Mixed water outlet at the top (purple ring).
For bottom outlet: unscrew / place lid at the top and outlet connector at the bottom.
Maximum temperature limiter, can be adjusted by the installer.
Reduced risk of scalding by limiting temperature at the point-of-use.
140 lpm - M1¼".
30-year warranty.
Anti-scalding safety.
Regulation of temperature variations.
Non-return valves and filters accessible from the exterior without having to remove the mechanism.
Thermal cartridge with no specific lever needed (push-button on the control knob).
Interchangeable cartridge with thermo-reactive cell.
High-resistance chrome-plated brass body.
Maximum hot water temperature: 85°C.
Differential hot water / mixed water: 15°C mini.
Pressure differences at the entrance: 1 bar maximum (0.5 bar recommended).
Minimum pressure / maximum: 1 to 10 bar (1 to 5 bar recommended).
Left hand side hot water inlet (red ring) and right hand side cold water inlet (blue ring).
Mixed water outlet at the top (purple ring).
For bottom outlet: unscrew / place lid at the top and outlet connector at the bottom.
Maximum temperature limiter, can be adjusted by the installer.
Reduced risk of scalding by limiting temperature at the point-of-use.
140 lpm - M1¼".
30-year warranty.
Advantages
PREMIX COMFORT Group thermostatic mixing valve
Ref. 731400
Connector
M1¼"

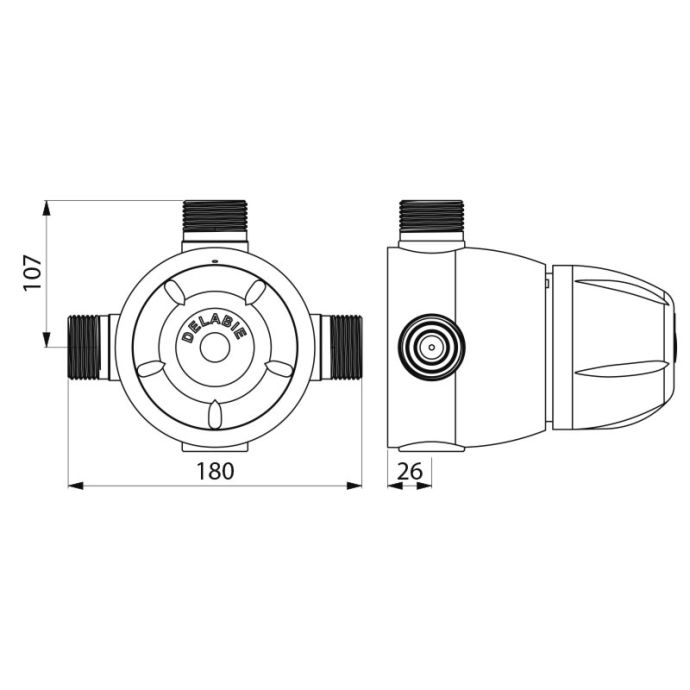

Technology Thermostatic

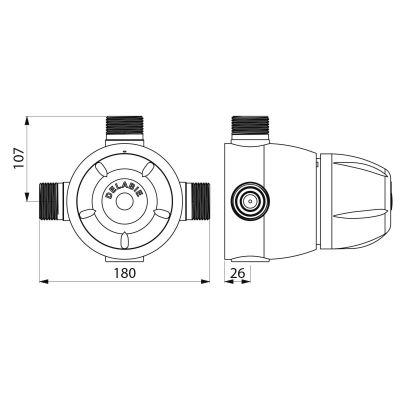

Height 107mm
Depth 26mm
Length 180mm
Flow rate 140 lpm
Certificates
Warranty
Repairability
Technology Thermostatic
Height 107mm
Depth 26mm
Length 180mm
Flow rate 140 lpm
Certificates
Warranty
Repairability
