TEMPOGENOU time flow tap

Ref. 734100
Knee-operated
See variants See variants
TEMPOGENOU time flow tap

Presentation

DESCRIPTION

TEMPOGENOU time flow tap

Ref. 734100

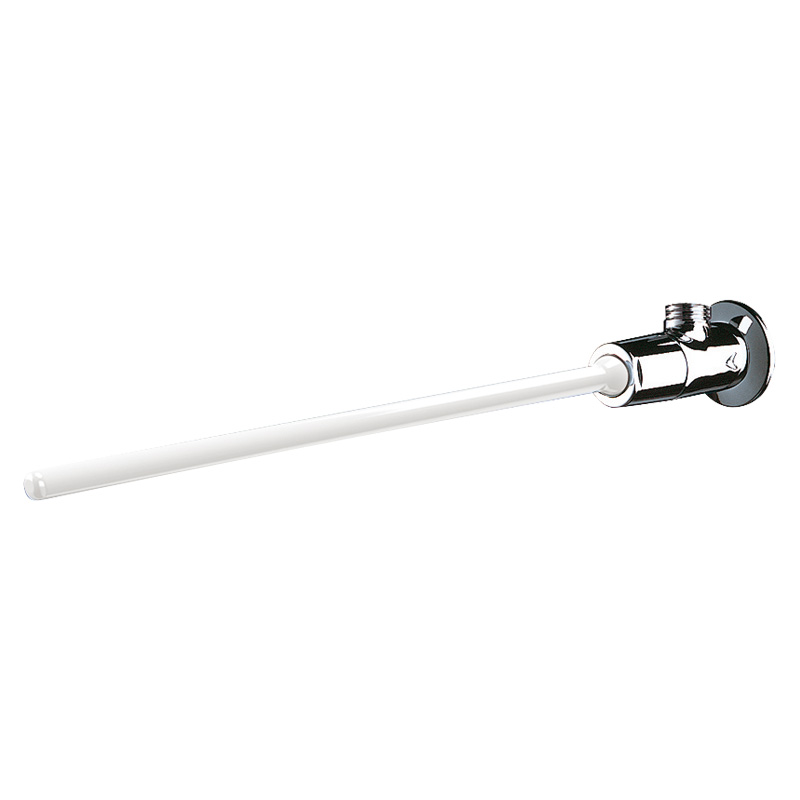

Knee-operated time flow basin valve:
Time flow ~7 seconds.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Reinforced control lever.
Wall-mounted chrome-plated fixing plate.
Cold or mixed water supply.
Chrome-plated brass body M½".
Angled model for wall inlet M½".
30-year warranty.

ADVANTAGES

Economie d'eau

85% water savings

Confort - Ergonomie - Déclenchement souple

Knee-operated

Anti-vandalisme

Reinforced rod

Sans contact manuel

Total hygiene: no manual contact

Characteristics

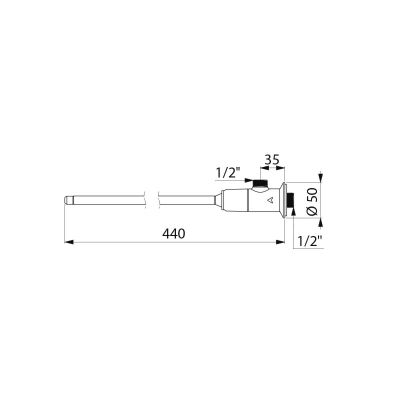

TECHNICAL CHARACTERISTICS

TEMPOGENOU time flow tap

Ref. 734100
Connector M½"
Technology Time flow
Length 440mm
Flow rate 3 lpm
Certificates ACS WRAS PZH DoP
Warranty 30-Year
Repairability
TEMPOGENOU time flow tap
Ref. 734100

Downloads

DOWNLOADS

TEMPOGENOU time flow tap

Ref. 734100

To download one or several documents linked to this product, please select the type of file you require :

Spare parts

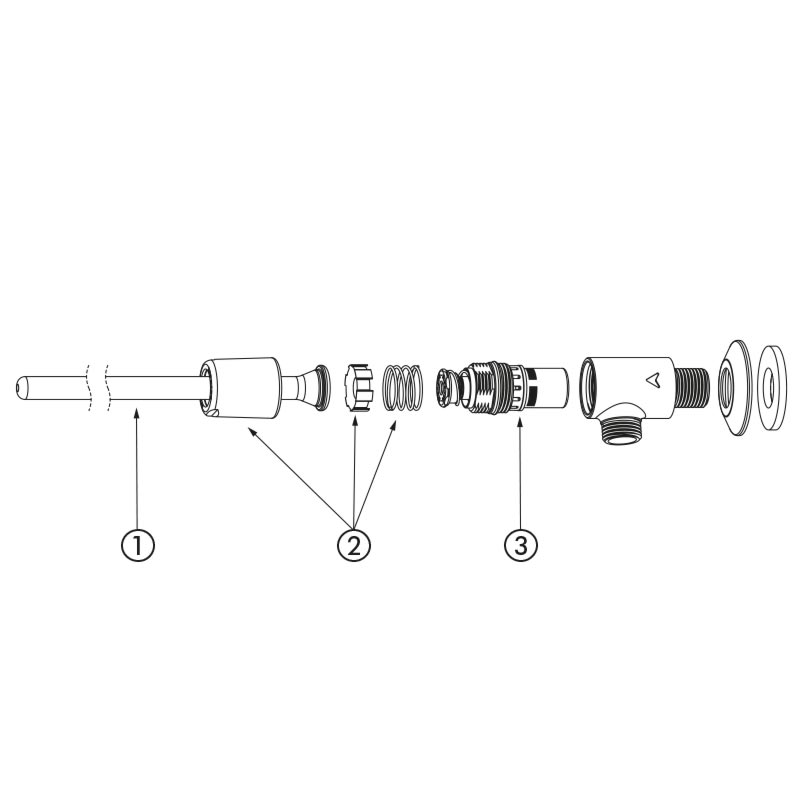

SPARE PARTS

TEMPOGENOU time flow tap

Ref. 734100
1. 999350
control lever
2. 997350
Head cover set
3. 743305
Time flow cartridge

VARIANTS

735000 Straight model for in-line supply - M1/2" stud nut bolt
735400 Straight model for inline inlets - M1/2"
73544715 Straight model for inline inlets - Ø15mm compression fittings

Associated products

VARIANTS

735000 Straight model for in-line supply - M1/2" stud nut bolt
735400 Straight model for inline inlets - M1/2"
73544715 Straight model for inline inlets - Ø15mm compression fittings
