TEMPOGENOU time flow tap

Ref. 73544715
Knee-operated, Ø 15mm conical inlet
See variants See variants
TEMPOGENOU time flow tap

Presentation

DESCRIPTION

TEMPOGENOU time flow tap

Ref. 73544715
Knee-operated time flow basin tap:
Time flow ~7 seconds.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Reinforced control lever.
Solid brass wall plate with reinforced fixing via 4 stainless steel screws.
Cold or mixed water supply.
Chrome-plated solid brass body M½".
Straight for in-line Ø 15mm conical inlet.
30-year warranty.

ADVANTAGES

Confort - Ergonomie - Déclenchement souple

Knee-operated

Economie d'eau

85% water savings

Anti-vandalisme

Reinforced fixing and rod

Sans contact manuel

Total hygiene: no manual contact

Characteristics

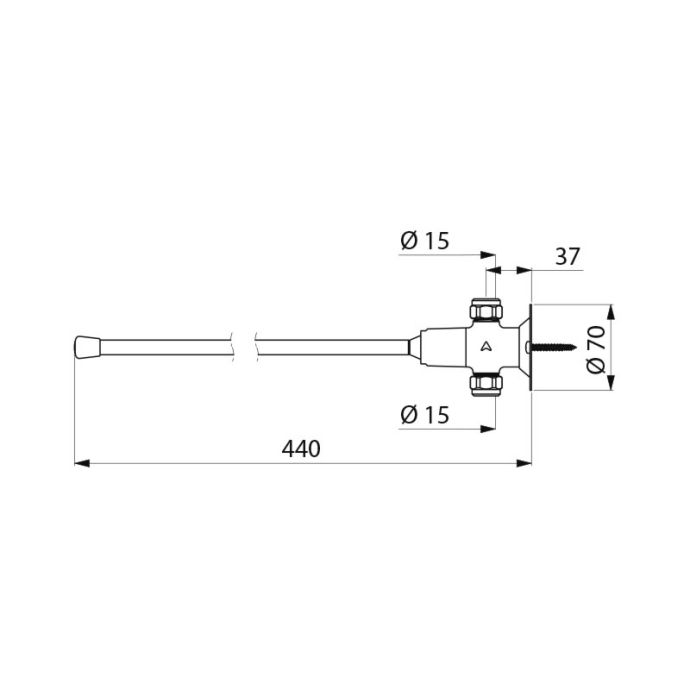

TECHNICAL CHARACTERISTICS

TEMPOGENOU time flow tap

Ref. 73544715
Connector M½'' Ø 15mm
Technology Time flow
Length 435mm
Flow rate 3 lpm
Certificates WRAS
Warranty 30-Year
TEMPOGENOU time flow tap
Ref. 73544715

Downloads

DOWNLOADS

TEMPOGENOU time flow tap

Ref. 73544715

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

735000 Straight model for in-line supply - M1/2" stud nut bolt
735400 Straight model for inline inlets - M1/2"
734100 Angled valve for recessed inlets - M1/2"
