DESCRIPTION

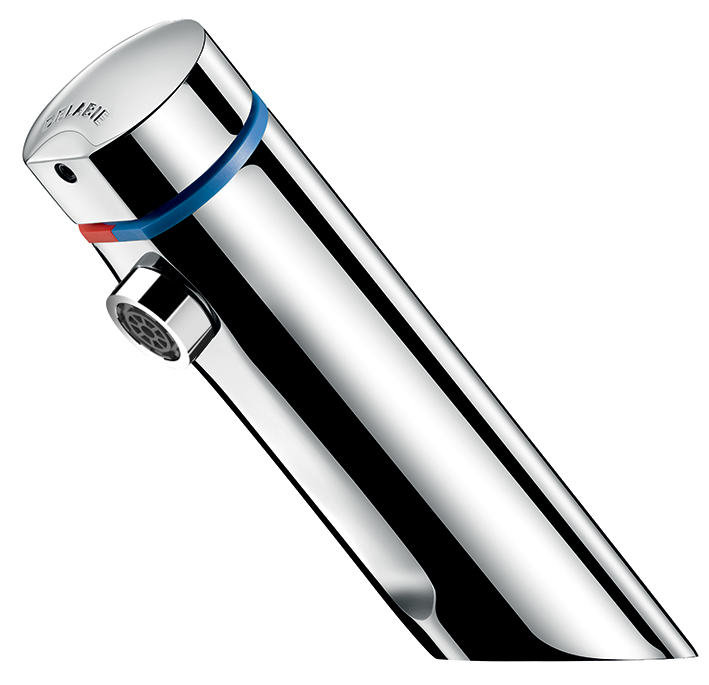

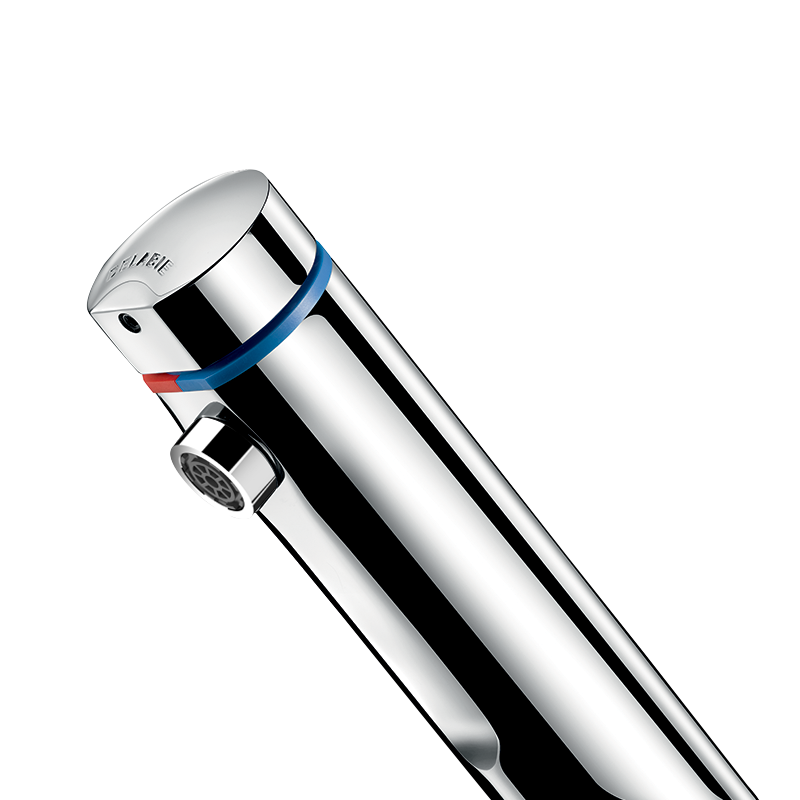

TEMPOMIX 3 time flow mixer
Ref. 794000Deck-mounted single control time flow basin mixer:
Soft-touch operation.
Temperature control and operation on the push-button.
Time flow pre-set at ~7 seconds.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Tamperproof scale-resistant flow straightener.
Chrome-plated metal body.
PEX flexibles F3/8" with stopcocks, filters and non-return valves.
Fixing reinforced by 2 stainless steel rods.
Adjustable maximum temperature limiter.
Suitable for people with reduced mobility.
30-year warranty.
Soft-touch operation.
Temperature control and operation on the push-button.
Time flow pre-set at ~7 seconds.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Tamperproof scale-resistant flow straightener.
Chrome-plated metal body.
PEX flexibles F3/8" with stopcocks, filters and non-return valves.
Fixing reinforced by 2 stainless steel rods.
Adjustable maximum temperature limiter.
Suitable for people with reduced mobility.
30-year warranty.
ADVANTAGES
![Economie d'eau](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/9/5/9/2/2959-12-eng-US/economie-deau.png)
Exceptional water savings: 85%
![Confort - Ergonomie - Déclenchement souple](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/3/0/9/2/2903-13-eng-US/confort.png)
Soft-touch operation
![Anti-vandalisme](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/7/8/8/2/2887-12-eng-US/antivandalisme.png)
Sleek lines
![Design](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/5/4/9/2/2945-12-eng-US/design.png)
Sleek design

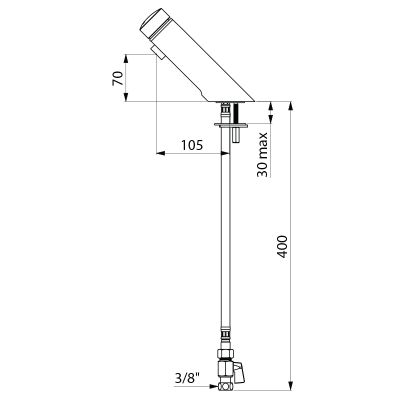

TECHNICAL CHARACTERISTICS
TEMPOMIX 3 time flow mixer
Ref. 794000Connector | F3/8" |
Technology | Time flow |
Drop height | 70mm |
Spout length | 105mm |
Flow rate | 3 lpm |
Certificates |
![]() ![]() ![]() ![]() ![]() |
Warranty | ![]() |
Repairability | ![]() |
Spare parts

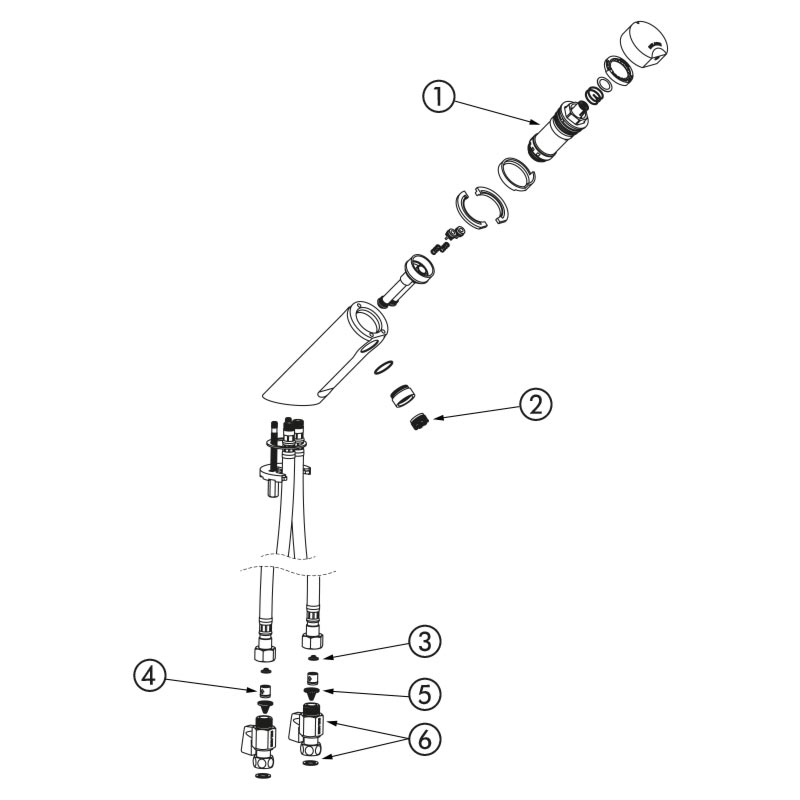

SPARE PARTS
TEMPOMIX 3 time flow mixer
Ref. 794000![](https://www.delabie.com/var/site/storage/images/1/3/7/2/3382731-1-fre-FR/PD_794000.jpg)
1. | 743794 |
|
Time flow cartridge |
2. | 60438.10P |
|
Conical filter |
3. | 900010 |
|
Non-return valve |
4. | 825212 |
|
In-line STOP union |
VARIANTS
79400015 | With stopcocks - Ø15mm compression fittings | ||
---|---|---|---|
79400015CO | With copper tails - stopcocks - Ø 15mm compression fittings | ||
794000AB | Anti-blocking - with stopcock | ||
794100 | With stopcock | ||
794100AB | Anti-blocking - without stopcocks |
VARIANTS
79400015 | With stopcocks - Ø15mm compression fittings | ||
---|---|---|---|
79400015CO | With copper tails - stopcocks - Ø 15mm compression fittings | ||
794000AB | Anti-blocking - with stopcock | ||
794100 | With stopcock | ||
794100AB | Anti-blocking - without stopcocks |
