TEMPOMIX 3 time flow mixer

Ref. 794055
Soft-touch operation
TEMPOMIX 3 time flow mixer

Presentation

DESCRIPTION

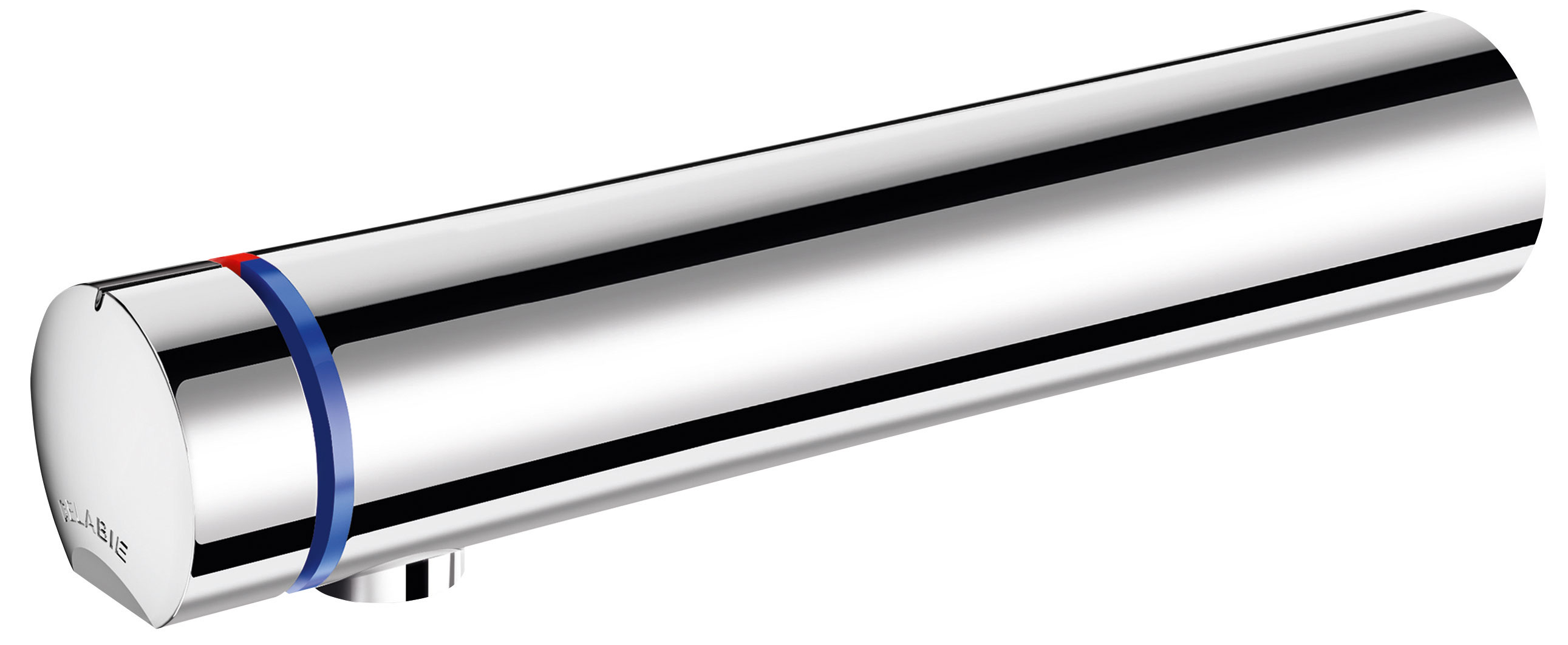

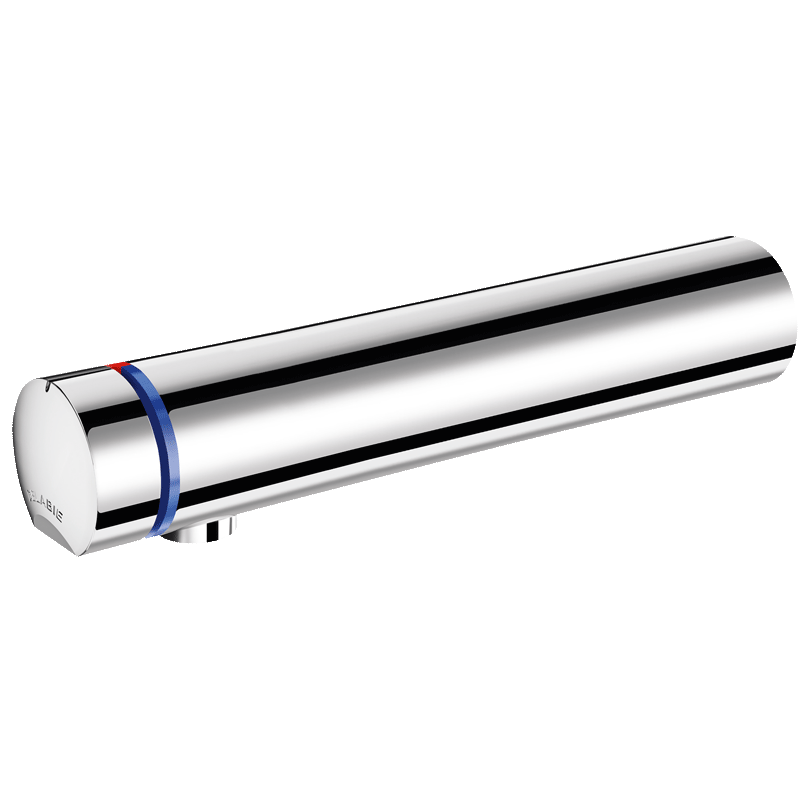

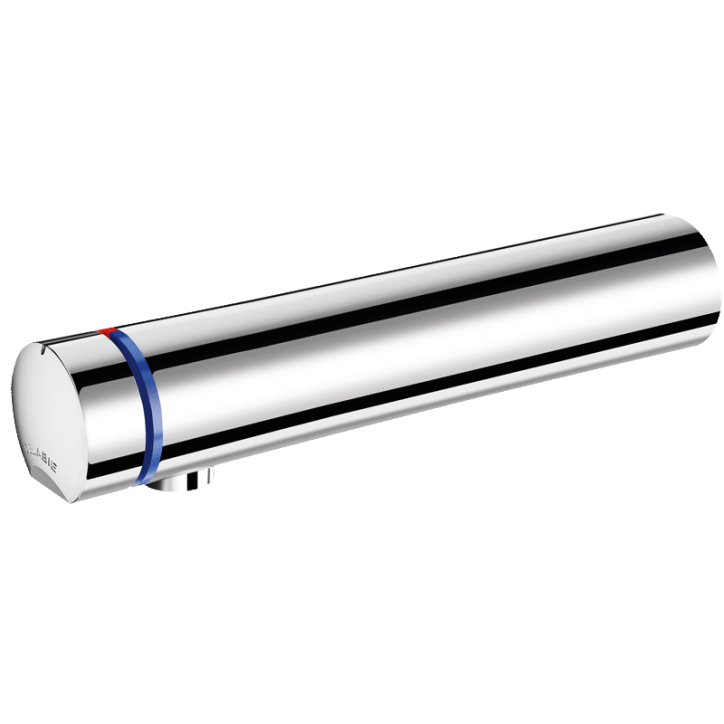

TEMPOMIX 3 time flow mixer

Ref. 794055
Wall-mounted single control time flow basin mixer:
Soft-touch operation.
Temperature control and operation via the push-button.
Time flow pre-set at ~7 seconds.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Tamperproof, scale-resistant flow straightener.
Chrome-plated solid brass body L. 190mm.

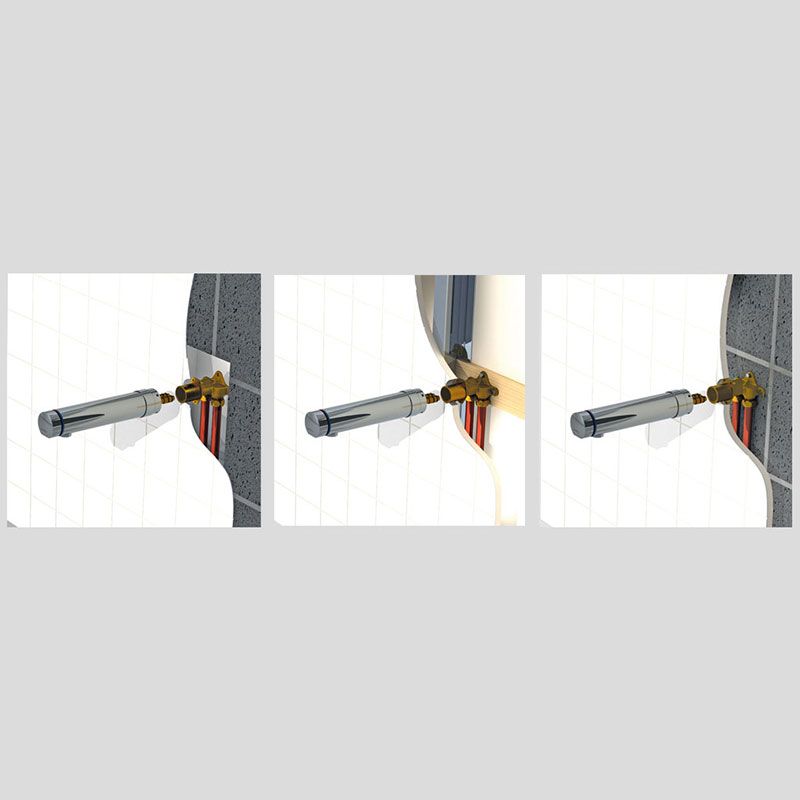

Wall-mounted M½".
Top or bottom supply.
Recessed inlets.
Filters and non-return valves.
Adjustable maximum temperature limiter.
Suitable for people with reduced mobility.
30-year warranty.

ADVANTAGES

Economie d'eau

Exceptional water savings: 85%

Confort - Ergonomie - Déclenchement souple

Soft-touch operation

Design

Sleek design

Characteristics

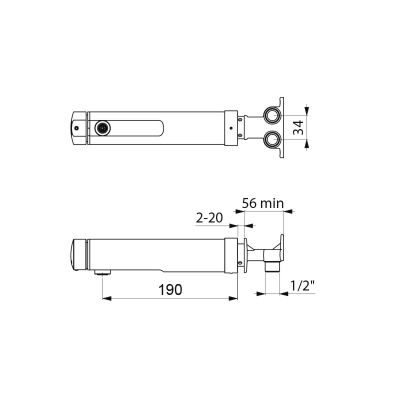

TECHNICAL CHARACTERISTICS

TEMPOMIX 3 time flow mixer

Ref. 794055
Connector M½"
Technology Time flow
Spout length 190mm
Flow rate 3 lpm
Certificates ACS Logo Belgaqua Logo WRAS Logo DoP DVGW Logo PZH
Warranty 30-Year

Downloads

DOWNLOADS

TEMPOMIX 3 time flow mixer

Ref. 794055

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

794050 Wall-mounted, recessed inlets - L. 110mm - without stopcock
794160 Cross wall - L. 110mm - with stopcock
794165 Cross wall - L. 190mm - with stopcock

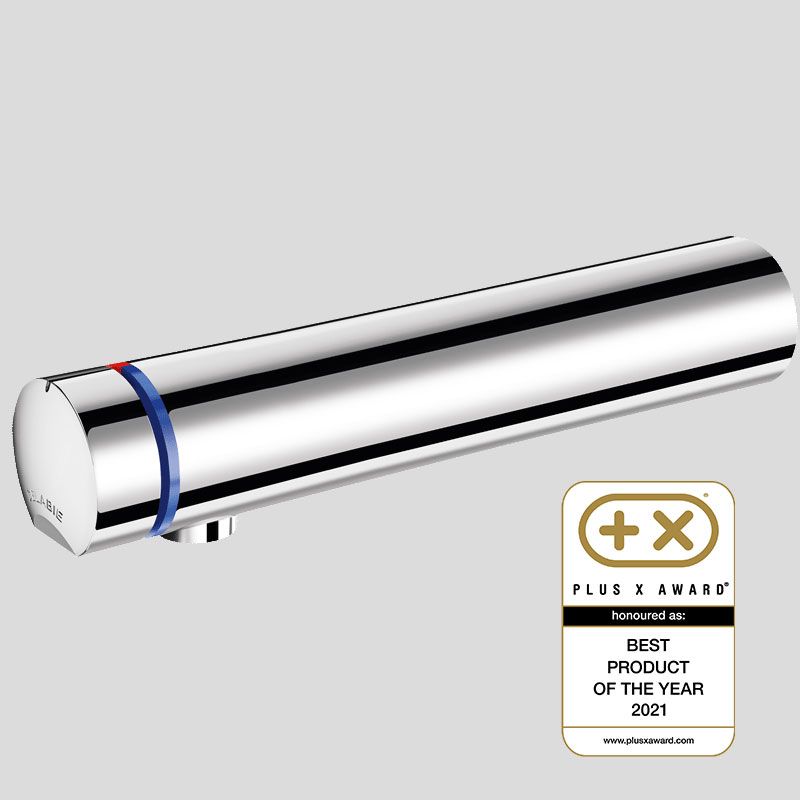

Winner at the international innovation competition: Plus X Award
Winner at the international innovation competition: Plus X Award
Over 85% water savings with the TEMPOMIX 3
Over 85% water savings with the TEMPOMIX 3

VARIANTS

794050 Wall-mounted, recessed inlets - L. 110mm - without stopcock
794160 Cross wall - L. 110mm - with stopcock
794165 Cross wall - L. 190mm - with stopcock
