TEMPOMIX time flow mixer

Ref. 795000
With stopcocks

Presentation

DESCRIPTION

TEMPOMIX time flow mixer

Ref. 795000

Deck-mounted single control time flow basin mixer:
Soft-touch operation.
Temperature control and operation via the push-button.
Time flow ~7 seconds.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Scale-resistant flow straightener.
Chrome-plated brass body.
Ergonomic chrome-plated metal push-button.
PEX flexibles with stopcocks F3/8", filters and non-return valves.
Fixing reinforced by 2 stainless steel rods.
Adjustable maximum temperature limiter.
Suitable for people with reduced mobility.
30-year warranty.

ADVANTAGES

Exceptional water savings: 85%

Chrome-plated solid brass, reinforced fixings

Soft-touch operation

Characteristics

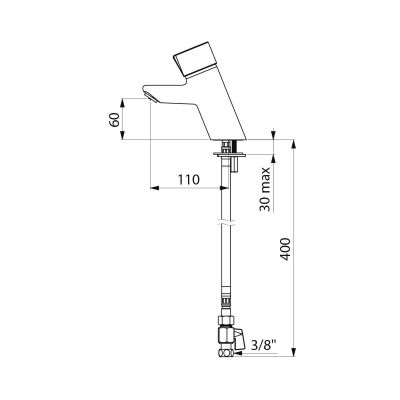

TECHNICAL CHARACTERISTICS

TEMPOMIX time flow mixer

Ref. 795000

Connector	F3/8"
Technology	Time flow
Drop height	60mm
Spout length	110mm
Flow rate	3 lpm
Certificates
Warranty
Repairability

Downloads

DOWNLOADS

TEMPOMIX time flow mixer

Ref. 795000

To download one or several documents linked to this product, please select the type of file you require :

Product file

Specification description

Lo-res JPG image

Hi-res EPS image

Line drawing

Line drawing AutoCAD DWG

BIM files

Installation guide

Certificates

Spare parts

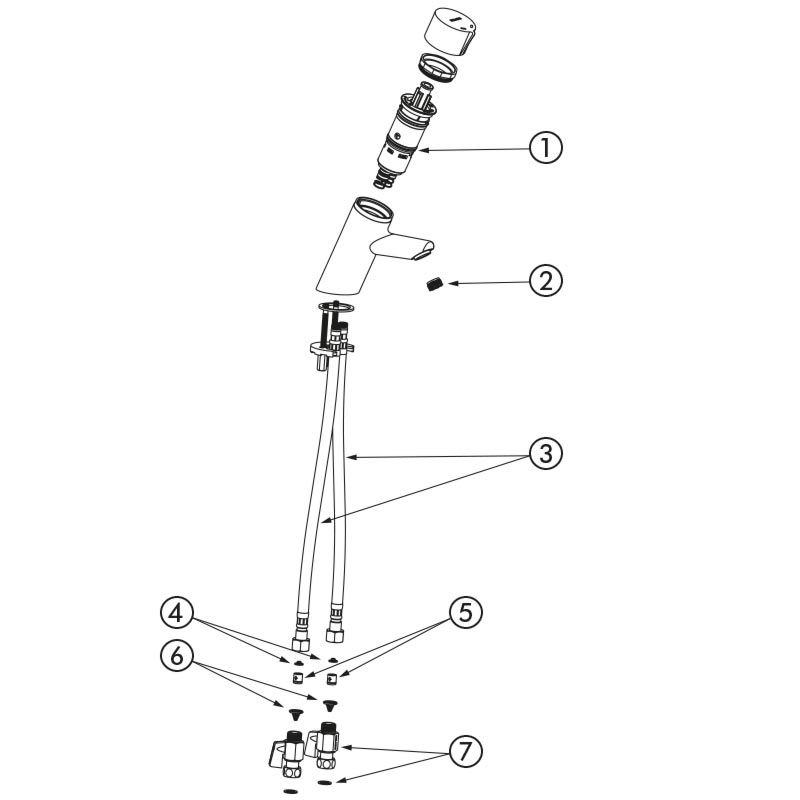

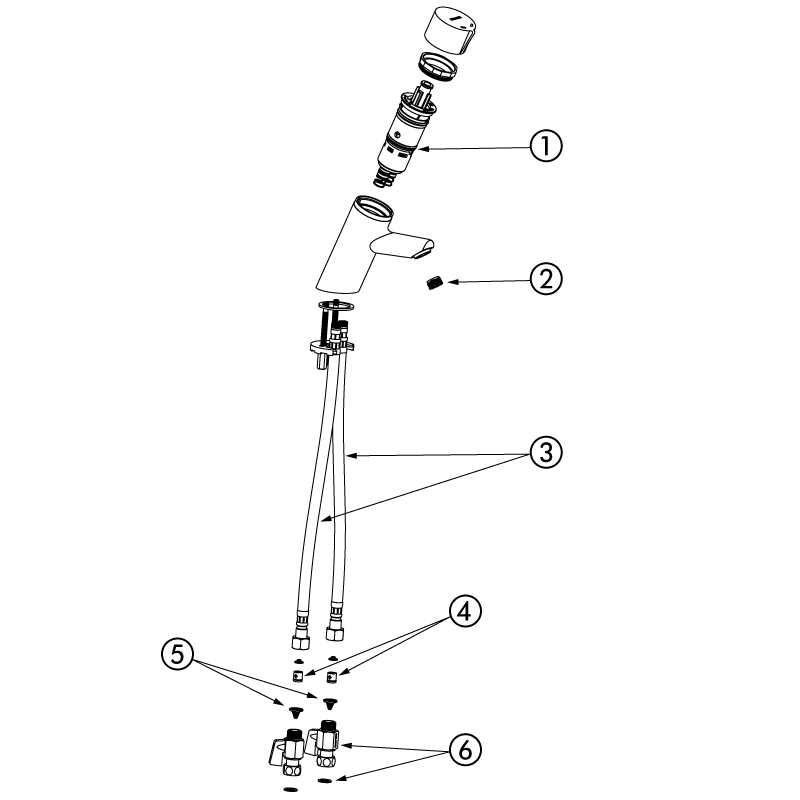

SPARE PARTS

TEMPOMIX time flow mixer

Ref. 795000

Since May 2017:

1.	743791	Time flow cartridge
2.	900010	Non-return valve
3.	922016.2P	Flow straightener
4.	60438.10P	Conical filter
5.	FLEX795	Stainless steel flexibles F3/8"
6.	825212	In-line STOP union
7.	04LDCAR.10P	Limiteurs de débit
