TEMPOMIX time flow mixer

Ref. 795100

Presentation

DESCRIPTION

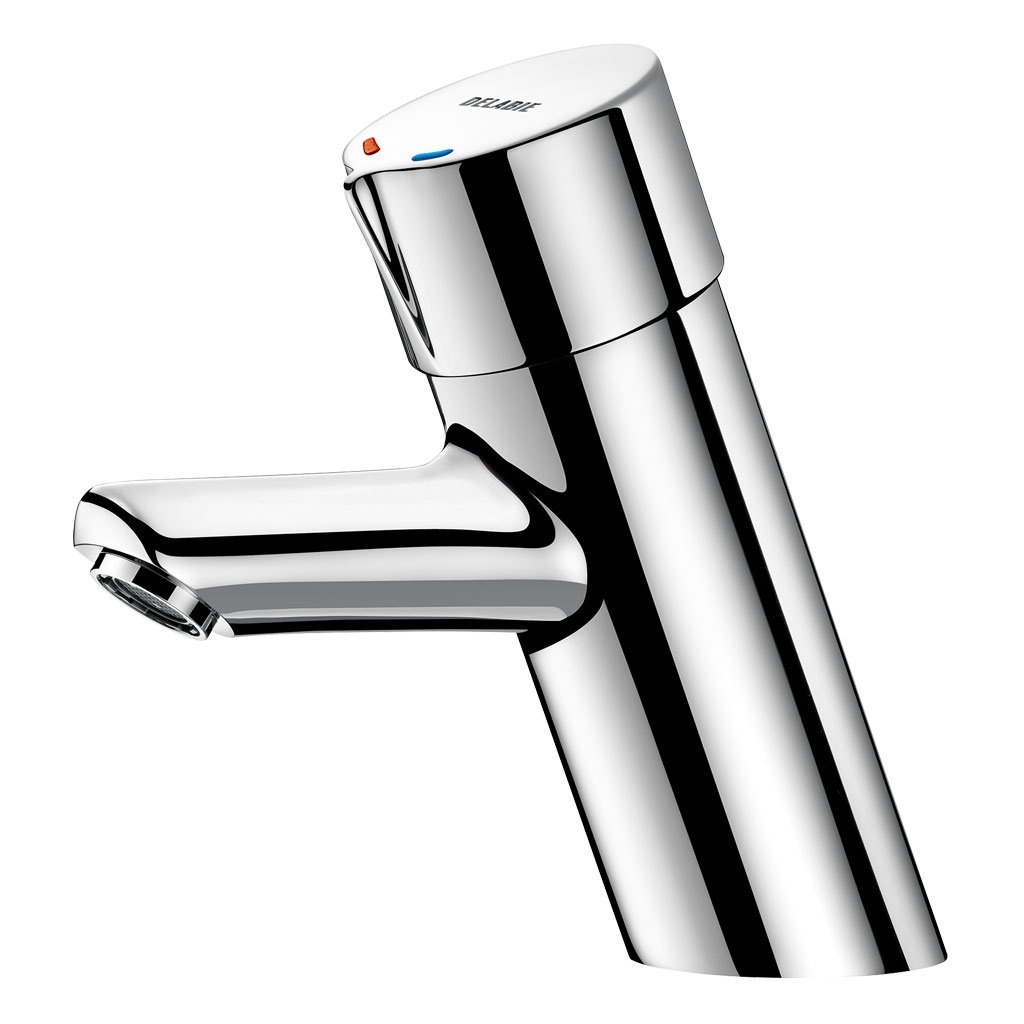

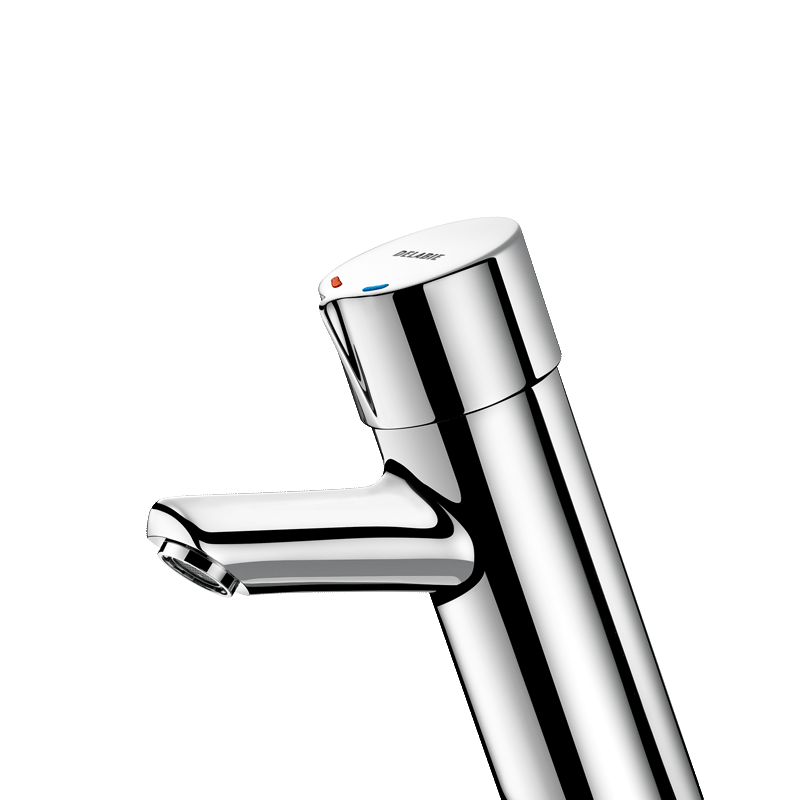

TEMPOMIX time flow mixer

Ref. 795100

Deck-mounted single control time flow basin mixer:
Soft-touch operation.
Temperature control and operation via the push-button.
Time flow ~7 seconds.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Scale-resistant flow straightener.
Chrome-plated brass body.
PEX flexibles F3/8" with filters and non-return valves.
Fixing reinforced by 2 stainless steel rods.
Adjustable maximum temperature limiter.
Ergonomic chrome-plated metal push-button.
Suitable for people with reduced mobility.
30-year warranty.

ADVANTAGES

Exceptional water savings: 85%

Chrome-plated solid brass, reinforced fixings

Temperature selection

Characteristics

TECHNICAL CHARACTERISTICS

TEMPOMIX time flow mixer

Ref. 795100

Connector	F3/8"
Technology	Time flow
Drop height	60mm
Spout length	110mm
Flow rate	3 lpm
Certificates
Warranty
Repairability

Downloads

DOWNLOADS

TEMPOMIX time flow mixer

Ref. 795100

To download one or several documents linked to this product, please select the type of file you require :

Product file

Specification description

Lo-res JPG image

Hi-res EPS image

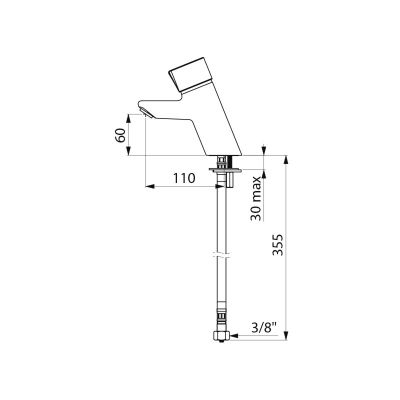

Line drawing

Line drawing AutoCAD DWG

BIM files

Installation guide

Certificates

Spare parts

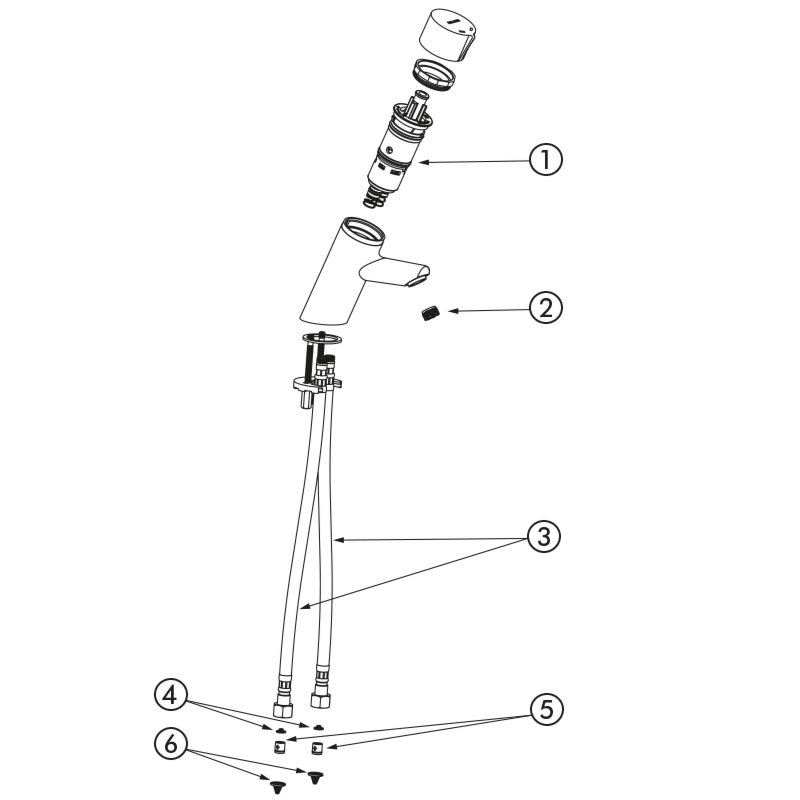

SPARE PARTS

TEMPOMIX time flow mixer

Ref. 795100

1.	743791	Time flow cartridge
2.	922016.2P	Flow straightener
3.	FLEX795	Stainless steel flexibles F3/8"
4.	04LDCAR.10P	Limiteurs de débit
5.	900010	Non-return valve
6.	60438.10P	Conical filter
