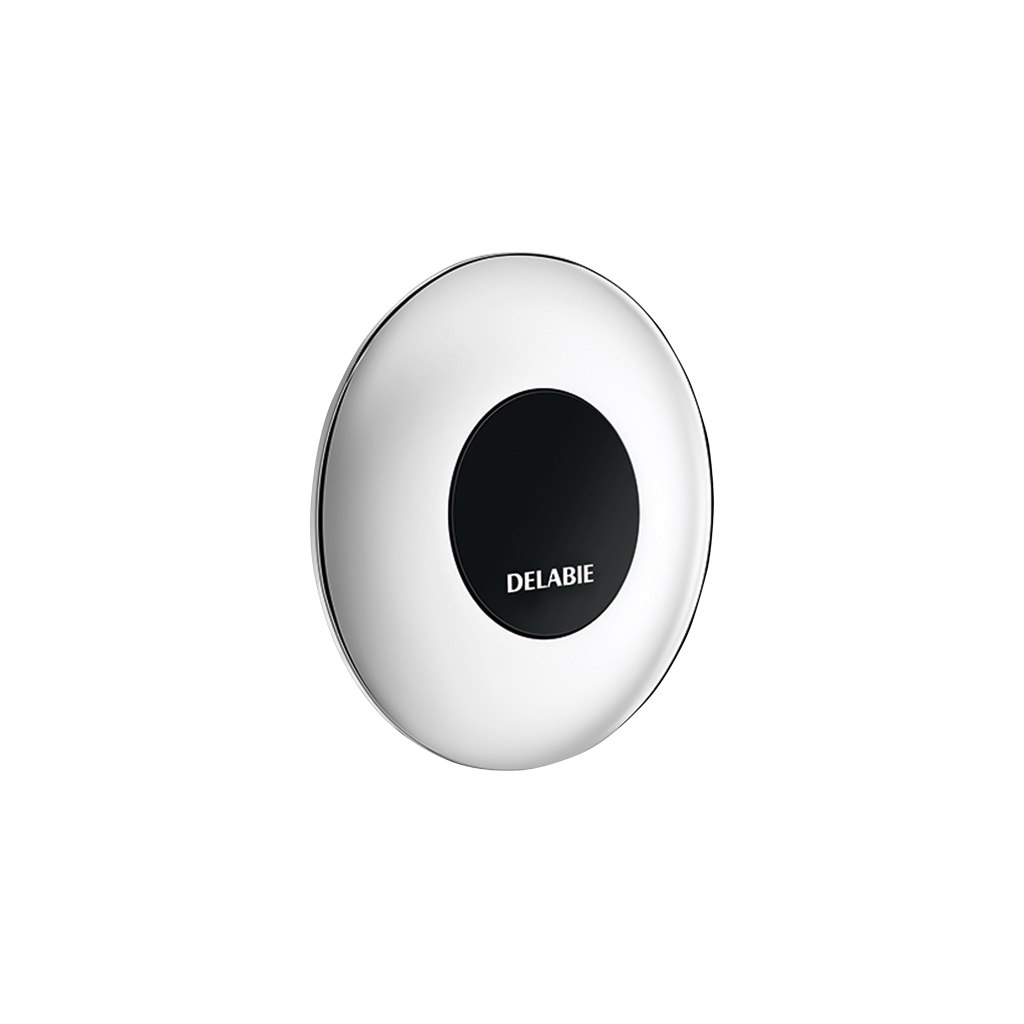

TEMPOMATIC urinal valve

Ref. 428200
Electronic mains supply
TEMPOMATIC urinal valve

Presentation

DESCRIPTION

TEMPOMATIC urinal valve

Ref. 428200
Cross wall electronic urinal valve:
Mains supply, electronic control unit 12V with solenoid valve, filter and stopcock M½".
Cross wall installation for walls ≤ 225mm.
Shock-resistant infrared presence detector.
Detection distance, time flow and flow rate can be adjusted at installation.
Order the 230/12V transformer separately.
Presence detection delay is 3 seconds.
Automatic pre-rinse possible.
Time flow 3 sec. can be adjusted from 3 - 12 seconds.
Hygienic duty flush is possible every 24 hours after last use, prevents vacuums.
Flow rate 0.3 L/sec. at 3 bar pressure, can be adjusted.
Wall plate flush to the wall.
Threaded rods can be cut-to-size.
Compatible with rain water.
Suitable for people with reduced mobility.
10-year warranty.

ADVANTAGES

Sans contact manuel

Total hygiene: no manual contact

Economie d'eau

ECO time flow 3 seconds

Anti-vandalisme

Cross wall installation

Rinçage périodique

Hygienic duty flush

Characteristics

TECHNICAL CHARACTERISTICS

TEMPOMATIC urinal valve

Ref. 428200
Supply Secteur 12V
Connector 1/2"
Technology Electronic
Length 225mm
Flow rate 0.3 l/sec.
Certificates Logo CE
Warranty Garantie 10 ans

Downloads

DOWNLOADS

TEMPOMATIC urinal valve

Ref. 428200

To download one or several documents linked to this product, please select the type of file you require :
