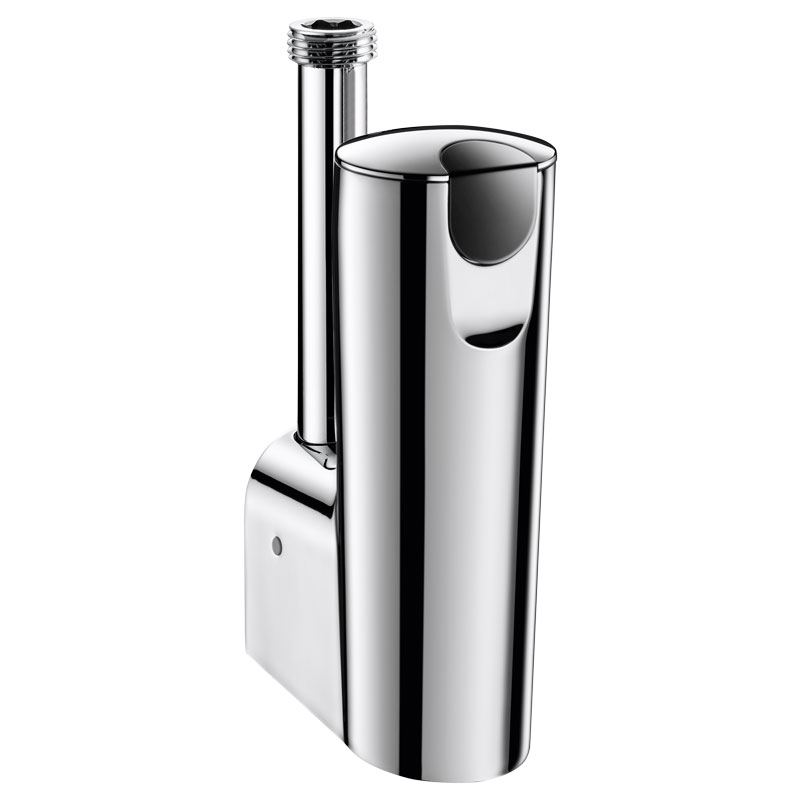

TEMPOMATIC 4 urinal valve

Ref. 479410
Electronic with integrated battery
TEMPOMATIC 4 urinal valve



TEMPOMATIC 4 urinal valve

Ref. 479410
Exposed electronic urinal valve with integrated battery:
Battery-operated with integrated 223 6V Lithium battery.
For wall-mounted, exposed installation.
Reduced-stagnation solenoid valve and electronic unit integrated into the valve body.
Shockproof infrared presence detection sensor.
Detection delay is 10 sec.
3 programmes (rinsing volume adjustable in accordance to the type of urinal).
High-frequency mode (exclusive to DELABIE):
- short rinse after each user
- complementary rinse after busy period.
Hygienic duty flush, every 24hr after last use, prevents vacuums in the siphon.
Compatible with rain water.
Flow rate 0.15 L/sec. at 3 bar, can be adjusted.
Integrated stopcock and flow rate adjuster.
One-piece chrome-plated metal body.
M½" connection.
Straight for in-line supply, outlet M½" 35mm gap from wall.
Suitable for people with reduced mobility.
10-year warranty.

Ideal for replacing old installations:
Can easily be installed where there was previously a time flow urinal.


Sans contact manuel

Total hygiene: no manual contact

Economie d'eau

High-frequency mode


Battery integrated into the valve body

Rinçage périodique

Hygienic duty flush



TEMPOMATIC 4 urinal valve

Ref. 479410
Supply 6V battery
Connector M½"
Technology Electronic
Height 155mm
Depth 85mm
Flow rate 0.15 l/sec.
Warranty Garantie 10 ans



TEMPOMATIC 4 urinal valve

Ref. 479410
