DESCRIPTION

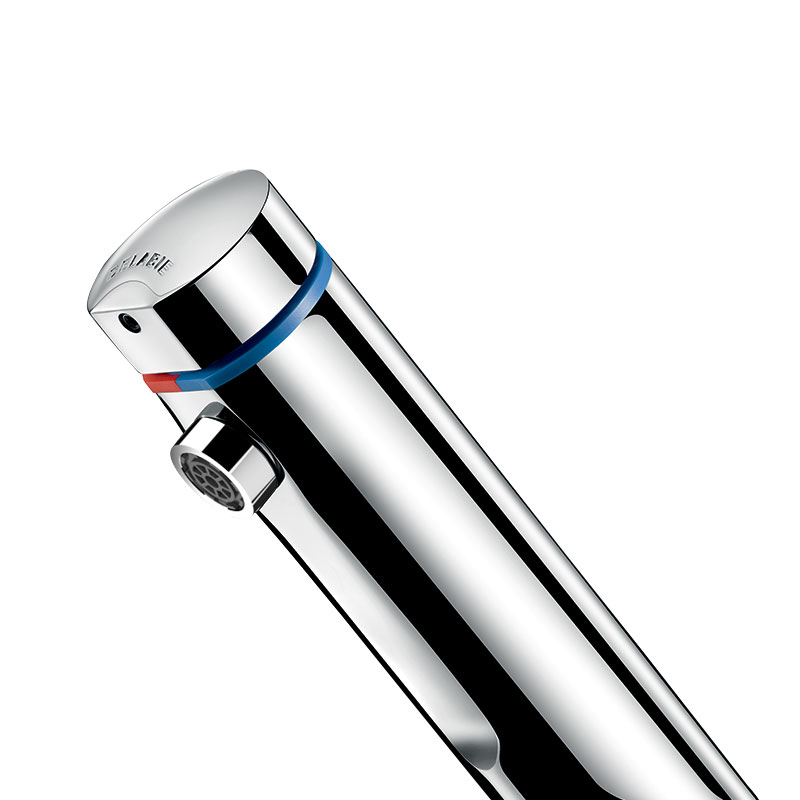

TEMPOMIX 3 time flow mixer
Ref. 794100Deck-mounted single control time flow basin mixer:
Soft-touch operation.
Temperature control and operation on the push-button.
Time flow pre-set at ~7 seconds.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Tamperproof scale-resistant flow straightener.
Chrome-plated metal body.
PEX flexibles F3/8" with filters and non-return valves.
Fixing reinforced by 2 stainless steel rods.
Adjustable maximum temperature limiter.
Suitable for people with reduced mobility.
30-year warranty.
Soft-touch operation.
Temperature control and operation on the push-button.
Time flow pre-set at ~7 seconds.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Tamperproof scale-resistant flow straightener.
Chrome-plated metal body.
PEX flexibles F3/8" with filters and non-return valves.
Fixing reinforced by 2 stainless steel rods.
Adjustable maximum temperature limiter.
Suitable for people with reduced mobility.
30-year warranty.
ADVANTAGES
Exceptional water savings: 85%
Soft-touch operation
Sleek lines
Sleek design
TECHNICAL CHARACTERISTICS
TEMPOMIX 3 time flow mixer
Ref. 794100| Connector | F3/8" |
| Technology | Time flow |
| Drop height | 70mm |
| Spout length | 105mm |
| Flow rate | 3 lpm |
| Certificates |
|
| Warranty |
|
| Repairability |  |
Spare parts
SPARE PARTS
TEMPOMIX 3 time flow mixer
Ref. 794100
| 1. | 743794 |
|
Time flow cartridge |
| 2. | 922016.2P |
|
Flow straightener |
| 3. | 04LDCAR.10P |
|
Limiteurs de débit |
| 4. | 900010 |
|
Non-return valve |
| 5. | 60438.10P |
|
Conical filter |
VARIANTS
| 794000 | With stopcocks | ||
|---|---|---|---|
| 79400015 | With stopcocks - Ø15mm compression fittings | ||
| 79400015CO | With copper tails - stopcocks - Ø 15mm compression fittings | ||
| 794000AB | Anti-blocking - with stopcock | ||
| 79400015AB | Anti-blocking - with stopcock - Ø 15mm compression fittings | ||
| 794100AB | Anti-blocking - without stopcocks |
Associated products
Wall-mounted liquid soap dispenser, 1 litre
Liquid soap or hydroalcoholic gel dispenser
Ref. 510580
PREMIX NANO thermostatic mixing valve
For mixed water from 34 - 60°C
Ref. 732116
ON/OFF waste
Washbasin waste 1¼"
Ref. 581000
VARIANTS
| 794000 | With stopcocks | ||
|---|---|---|---|
| 79400015 | With stopcocks - Ø15mm compression fittings | ||
| 79400015CO | With copper tails - stopcocks - Ø 15mm compression fittings | ||
| 794000AB | Anti-blocking - with stopcock | ||
| 79400015AB | Anti-blocking - with stopcock - Ø 15mm compression fittings | ||
| 794100AB | Anti-blocking - without stopcocks |
