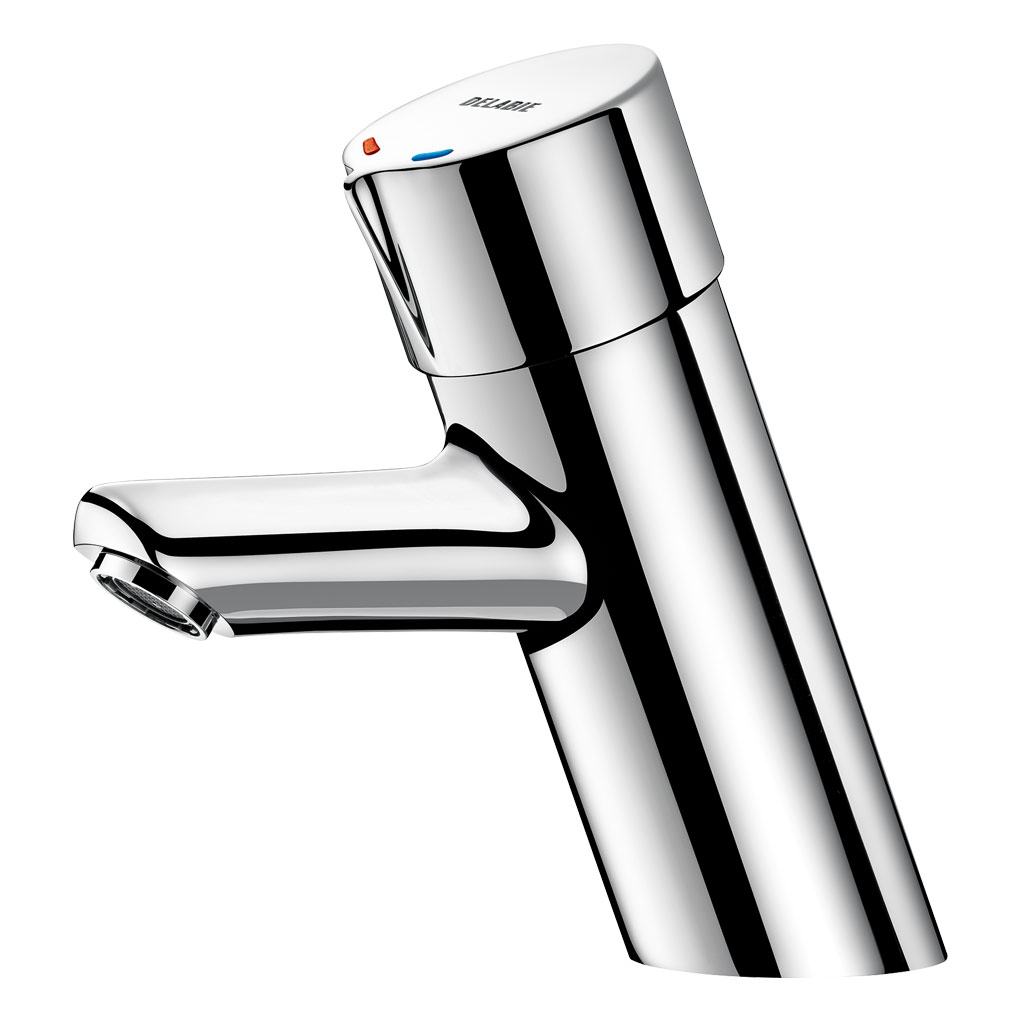

TEMPOMIX time flow mixer

Ref. 795000
With stopcocks
TEMPOMIX time flow mixer

Presentation

DESCRIPTION

TEMPOMIX time flow mixer

Ref. 795000
Deck-mounted single control time flow basin mixer:
Soft-touch operation.
Temperature control and operation via the push-button.
Time flow ~7 seconds.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.5 - 6 lpm.
Scale-resistant flow straightener.
Chrome-plated solid brass body.
Ergonomic chrome-plated metal push-button.
PEX flexibles with stopcocks F3/8", filters and non-return valves.
Fixing reinforced by 2 stainless steel rods.
Adjustable maximum temperature limiter.
10-year warranty.

ADVANTAGES

Confort - Ergonomie - Déclenchement souple

Soft-touch operation

Economie d'eau

85% water savings

Anti-vandalisme

Chrome-plated solid brass, reinforced fixings

Confort - Ergonomie - Déclenchement souple

Temperature selection

Characteristics

TECHNICAL CHARACTERISTICS

TEMPOMIX time flow mixer

Ref. 795000
Connector F3/8"
Technology Time flow
Drop height 60mm
Spout length 110mm
Flow rate 3 lpm
Certificates
Warranty Garantie 10 ans

Downloads

DOWNLOADS

TEMPOMIX time flow mixer

Ref. 795000

To download one or several documents linked to this product, please select the type of file you require :
