TEMPOFLUX 2 control plate for WCs
Ref. 578212
Soft-touch operation time flow valve
Soft-touch operation time flow valve
DESCRIPTION
TEMPOFLUX 2 control plate for WCs
Ref. 578212Control plate for TEMPOFLUX 2 time flow direct flush, kit 2/2:
Flush system without cistern, directly connected to pipework.

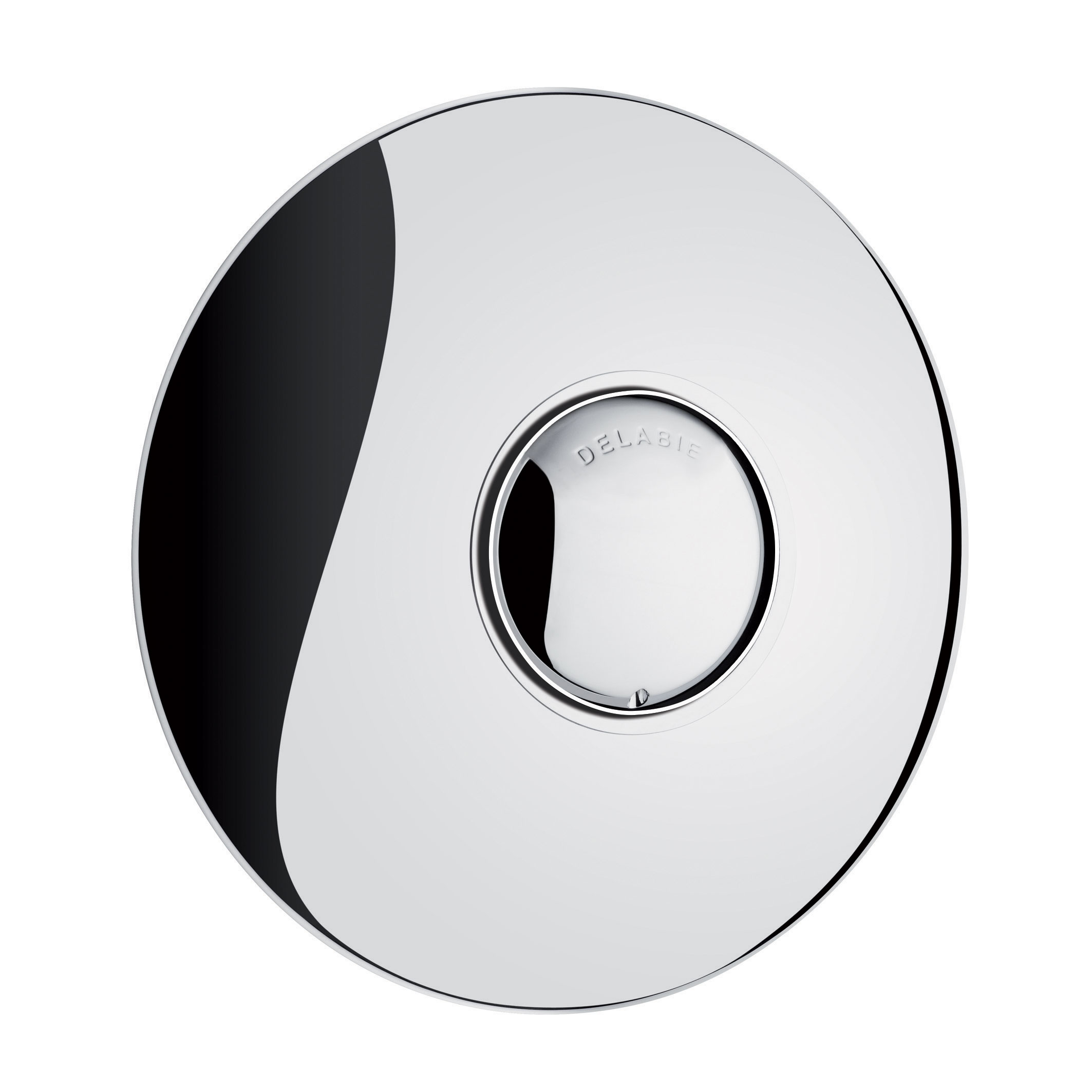

Ø 195mm chrome-plated metal wall plate.
Concealed mechanical fixing of the wall-plate.
6L single flush.
Soft-touch operation.
For walls 10 - 35mm.
Upstream supply pipes: minimum Ø 20mm required at all points (including connectors).
Base flow rate: 1L/sec at 1 bar dynamic pressure.
Complies with European standard EN 12541 class II.
30-year warranty.
Order with frame system references 578305DE or 578405DE.
Flush system without cistern, directly connected to pipework.
Ø 195mm chrome-plated metal wall plate.
Concealed mechanical fixing of the wall-plate.
6L single flush.
Soft-touch operation.
For walls 10 - 35mm.
Upstream supply pipes: minimum Ø 20mm required at all points (including connectors).
Base flow rate: 1L/sec at 1 bar dynamic pressure.
Complies with European standard EN 12541 class II.
30-year warranty.
Order with frame system references 578305DE or 578405DE.
ADVANTAGES
Soft-touch operation
Direct flush: no water stagnation
Flush is instantly available
TECHNICAL CHARACTERISTICS
TEMPOFLUX 2 control plate for WCs
Ref. 578212| Connector | ¾" |
| Technology | Time flow |
| Depth | Walls from 10 to 35mm |
| Flow rate | 6L |
| Diameter | Ø 195mm |
| Finish | Chrome-plated metal |
| Certificates |
|
| Warranty |
|
VARIANTS
| 578222 | Adjustable dual flush - for walls 10 - 60mm, inline inlet M3/4" | ||
|---|---|---|---|
| 578230 | Adjustable. dual flush - for walls 70 - 130mm, inline inlet M3/4" |
