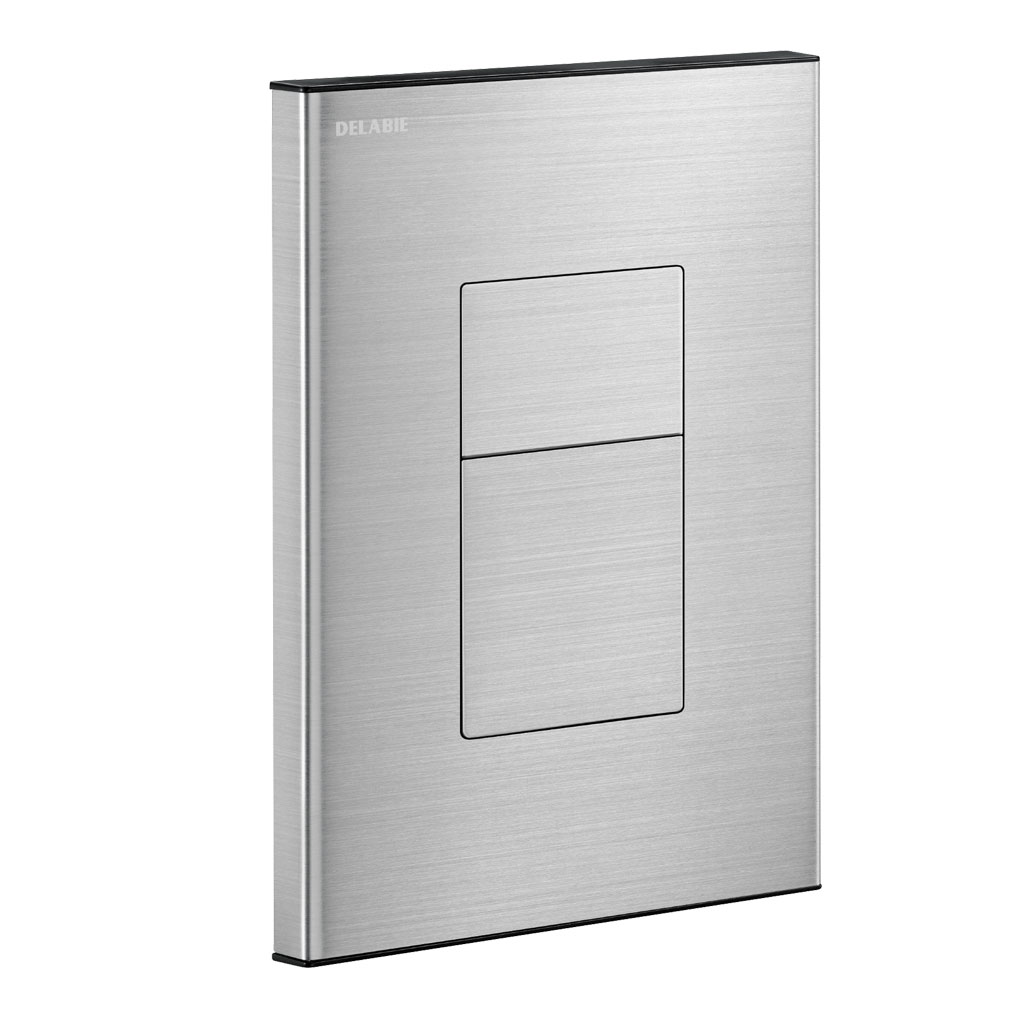

TEMPOFLUX 3 control plate for WCs

Ref. 763000
Soft-touch operation time flow control, AB, recessed
TEMPOFLUX 3 control plate for WCs

Presentation

DESCRIPTION

TEMPOFLUX 3 control plate for WCs

Ref. 763000
Control plate and recessed time flow direct flush valve TEMPOFLUX 3, kit 2/2:
Flush system without cistern: directly connected to pipework.
Satin stainless steel plate 210 x 162mm.
Mechanical fixing of the control plates.
TEMPOFLUX 3 F¾" valve compatible with sea water, rain water and grey water.
Soft-touch operation.
AB anti-blocking system: flush only takes place once the push-button is released.
3L/6L dual flush can be adjusted to 2L/4L. Rectangular design.
Complies with European standard EN 12541 (class II acoustic level).
Base flow rate: 1 L/sec at 1 bar dynamic pressure.
Suitable for rimless WC pans without flow rate regulation and suitable for people with reduced mobility.
10-year warranty.

Order with frame system reference 564065DE or 564060DE, or with 763BOX recessed housing.

ADVANTAGES

Confort - Ergonomie - Déclenchement souple

Soft-touch operation

Hygiène - Anti-bactérien - BIOSAFE

Direct flush: no water stagnation

Economie d'eau

3L/6L dual flush

Maintenance aisée - Installation aisée

Maintenance made easy with front access

Characteristics

TECHNICAL CHARACTERISTICS

TEMPOFLUX 3 control plate for WCs

Ref. 763000
Connector F¾"
Technology Time flow
Height 210mm
Width 162mm
Finish Satin stainless steel
Certificates Logo DoP Logo WRAS Logo HKWSD
Warranty Garantie 10 ans
