Deck-mounted SECURITHERM basin mixer with pressure-balancing.

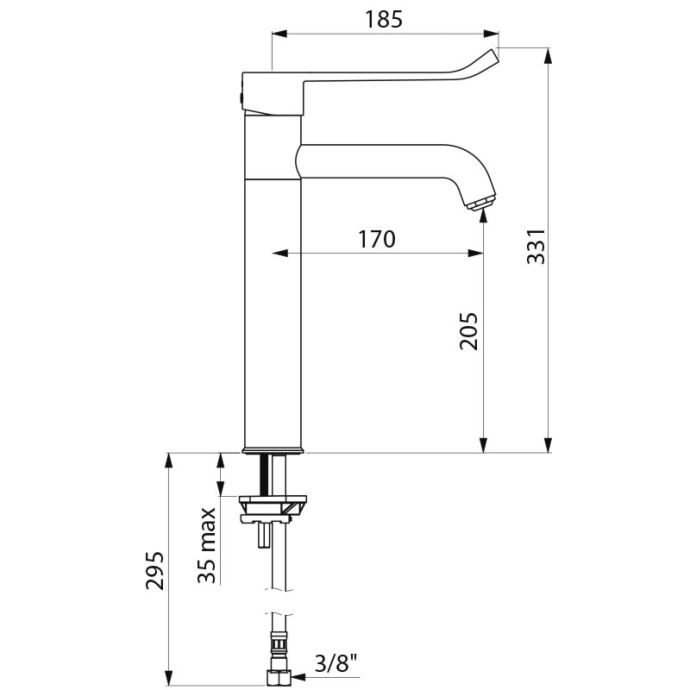

Single hole, single control mixer with fixed spout H. 200mm L. 170mm.

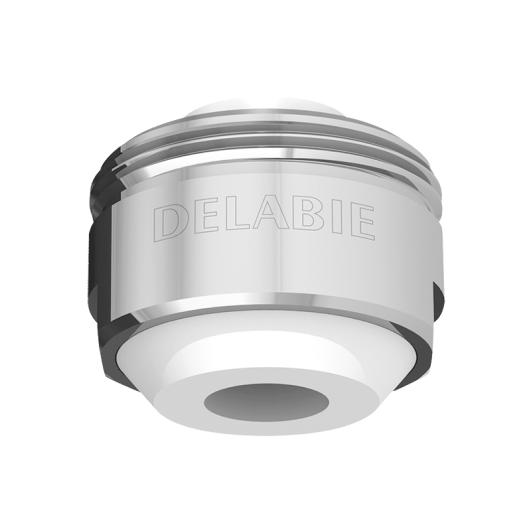

Tall mixer with BIOSAFE hygienic outlet suitable for fitting a BIOFIL point-of-use filter.
Anti-scalding safety: HW flow reduces if CW supply fails (and vice versa).
Stable temperature regardless of pressure and flow rate variations in the system.
Ø 35mm ceramic cartridge with pressure balancing with pre-set maximum temperature limiter.
Body and spout with smooth interiors (reduces bacterial development).
Thermal shocks are possible without removing the control lever or shutting off the cold water.
Flow rate regulated at 5 lpm.
Chrome-plated brass body and base.
Hygiene control lever L. 185mm requires no manual contact.
PEX flexibles F3/8" with filters and non-return valves.
Fixing reinforced by 2 stainless steel rods.
Mechanical mixer with pressure-balancing ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Single hole mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.
Advantages
EP: HW flow reduces if CW supply fails
EP: reduces pressure variations
Thermal shocks are possible without removing lever
Hygiene: smooth interior reduces bacteria
SECURITHERM EP pressure-balancing basin mixer
Ref. 2565T5EP
Connector
F3/8"
Technology
SECURITHERM EP
Height
331mm
Drop height
200mm
Spout length
170mm
Flow rate
5 lpm
Temperature limiter
Yes
Finish
Chrome-plated brass
Certificates
Warranty
Repairability
SECURITHERM EP pressure-balancing basin mixer
Ref.
2565T5EP
