Presentation

Description

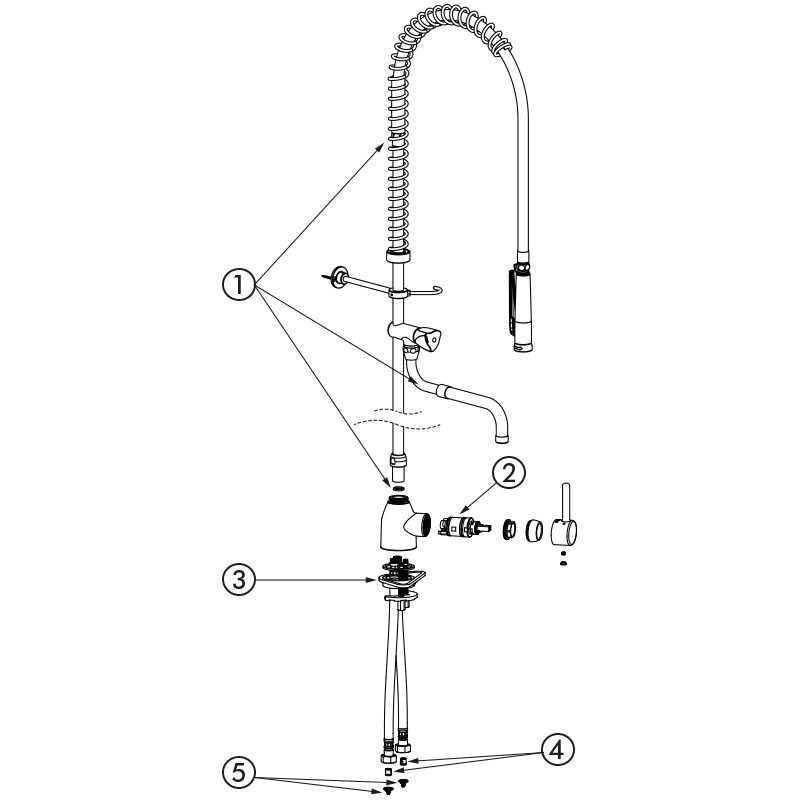

Pre-rinse set with mixer
Ref. 6692

Complete pre-rinse set with bib tap.
Deck-mounted single hole mixer with slimline control lever.
Supplied with F3/8" flexibles and non-return valves.
Bib tap with telescopic, swivelling spout L. 200 - 290mm.
- Flow rate 16 lpm at the outlet.
- Valve head with control knob.
White, scale-resistant M1/2" hand spray with adjustable jet and 9 lpm flow rate at the outlet.
Reinforced, food-grade, white flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.
10-year warranty.

Advantages

  • Water-free valve head and reinforced fixings

  • Anti-torsion rotating nut and PVC sheath

  • Telescopic, swivelling rapid-fill spout

  • Full flow rate achieved within 90°

Characteristics

Technical features

Pre-rinse set with mixer
Ref. 6692

Connector F3/8"
Height 1105-1225 mm
Drop height 340-580 mm
Flow rate 16 lpm
Width to the wall 35-162 mm
Finish Chrome-plated brass
Standards and certifications ACS Belgaqua PZH
Warranty 10-Year
