BINOPTIC wall-mounted electronic soap dispenser
Ref. 512111S
Liquid or foam soap dispenser
Liquid or foam soap dispenser
DESCRIPTION
BINOPTIC wall-mounted electronic soap dispenser
Ref. 512111SWall-mounted electronic soap dispenser.
Liquid or foam soap dispenser.
Vandal-resistant model for cross wall (TC) up to 110mm.
No manual contact: infrared cell detects hands automatically.
Satin finish 304 stainless steel spout.
No waste pump dispenser.
Separate electronic unit for installation beneath the washbasin or in a service duct.
Automatic soap dispenser: mains supply with 230/6V transformer.
For vegetable-based liquid soap with maximum viscosity of 3,000 mPa.s or specific foam soap.
Total spout length: 115mm.
Supplied with 1.20m flexible tube for remote tanks (tank not supplied).
Wall-mounted electronic soap dispenser with 30-year warranty.
CE marked.
Liquid or foam soap dispenser.
Vandal-resistant model for cross wall (TC) up to 110mm.
No manual contact: infrared cell detects hands automatically.
Satin finish 304 stainless steel spout.
No waste pump dispenser.
Separate electronic unit for installation beneath the washbasin or in a service duct.
Automatic soap dispenser: mains supply with 230/6V transformer.
For vegetable-based liquid soap with maximum viscosity of 3,000 mPa.s or specific foam soap.
Total spout length: 115mm.
Supplied with 1.20m flexible tube for remote tanks (tank not supplied).
Wall-mounted electronic soap dispenser with 30-year warranty.
CE marked.
ADVANTAGES
Total hygiene: no manual contact
Comfort: automatic soap dispenser
No-waste pump dispenser
Liquid or foam soap

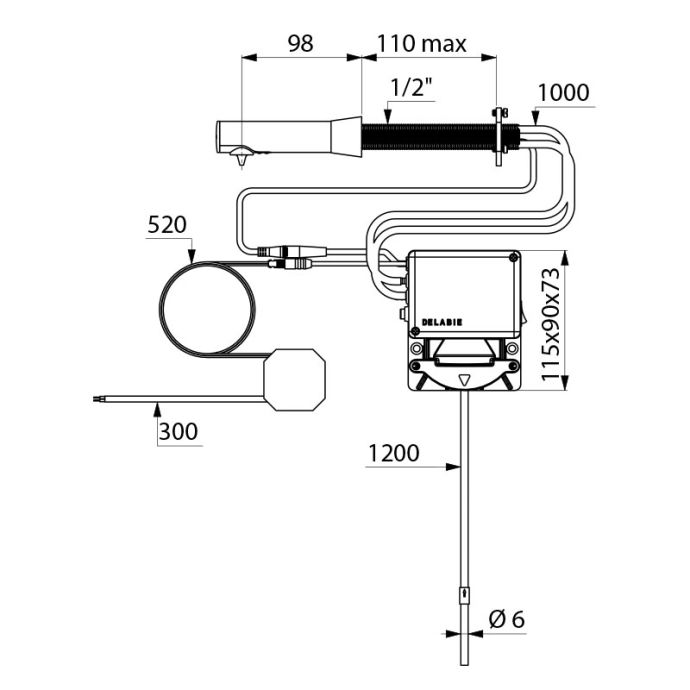

TECHNICAL CHARACTERISTICS
BINOPTIC wall-mounted electronic soap dispenser
Ref. 512111S| Supply | Mains supply 230/6V |
| Connector | 1/2" |
| Technology | Infrared sensor |
| Height | 115mm (electronic unit) |
| Length | 98mm |
| Thickness | Max. 110mm (partition) |
| Finish | Satin finish 304 stainless steel. |
| Certificates |
|
| Warranty |
|
| Repairability |  |
Spare parts

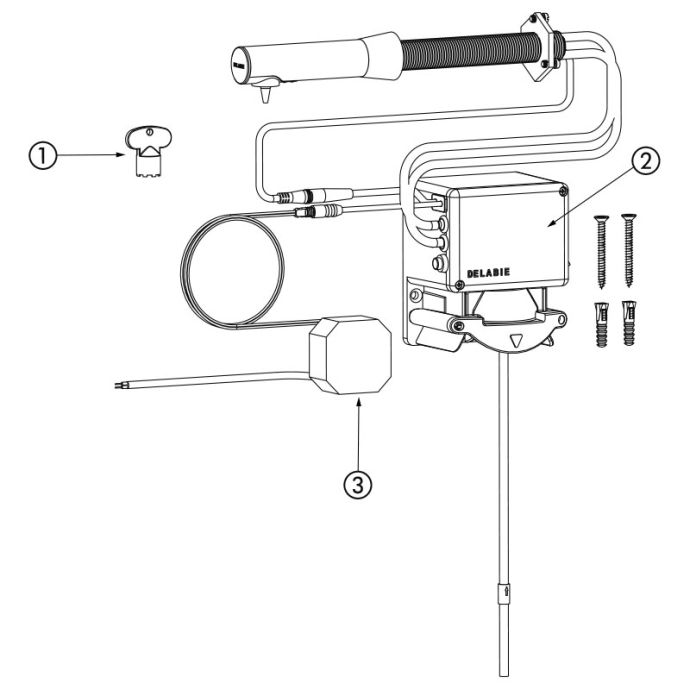

SPARE PARTS
BINOPTIC wall-mounted electronic soap dispenser
Ref. 512111S
| 1. | 222429 |
|
Service key |
| 2. | 512BC |
|
Electronic control unit |
| 3. | 490240 |
|
Power supply |
VARIANTS
| 512051BK | With 1 litre tank - Matte black powder-coated 304 stainless steel | ||
|---|---|---|---|
| 512051P | With 1 litre tank - chrome-plated 304 stainless steel | ||
| 512051S | With 1 litre tank - satin finish 304 stainless steel | ||
| 512151BK | With 1.20m flexible tube for remote tank - 304 stainless steel | ||
| 512151P | With 1.2m flexible tube for remote tank - chrome-plated 304 st. steel | ||
| 512151S | With 1.2m flexible tube for remote tank - satin finish 304 st. steel | ||
| 512111BK | CW - 1.20m flexible tube for remote tank - Stainless steel | ||
| 512111P | Cross wall, 1.2m flexible tube for remote tank - chrome 304 st. st |
