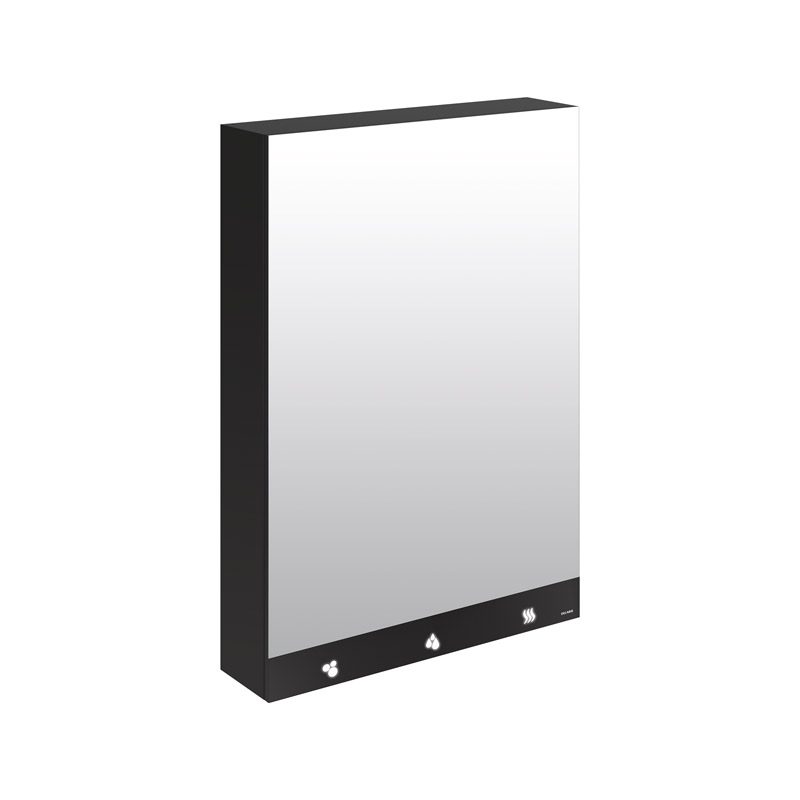

Mirror cabinet with 4 functions: mirror, electronic tap, soap dispenser and electrical hand dryer.
304 stainless steel designer cabinet with a matte black melamine finish.
Touch-free for improved hygiene: soap dispenser, tap and hand dryer are activated automatically when hands are detected by infrared sensor.
Quick and easy to install:
- A single electrical connection for all the elements: mains supply with 230V / 50-60Hz.
- Connects to the water supply from the top or from inside the cabinet.
- Water connection in M3/8"
- Concealed fixings. Mirror cabinet supplied with stainless steel screws for concrete or reinforced wood.
- Adjustable hinges.
Unit with 4 functions:
4mm thick glass mirror and black glass strip with illuminated pictograms.
Automatic soap dispenser:
- No-waste pump dispenser
- Large capacity tank: 5 litres.
- Suitable for vegetable-based liquid soap with a maximum viscosity of 3,000 mPa.s or 3,000cP, or specific foam soap.
Electronic basin tap*:
- Reduced stagnation solenoid valve.
- Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
- Scale-resistant flow straightener.
- Duty flush (~60 seconds every 24 hours after the last use).
- Stopcock.
- Adjustable sensor (±10°) for auto-detection.
Air-pulse hand dryer:
- High-speed.
- Pulsed air at 360km/h. Airflow: 39 l/second.
- Low energy consumption: 1350W.
- Noise level: 70- dBA.
- Class I, IP23.
- 3-year warranty.
Basin lit by the LED strip.
Vandal-resistant model with standard DELABIE key.
Anti-blocking: stops automatically if used continuously.
Internal storage shelf.
Several cabinets can be installed side-by-side to create a mirror wall: linking screws are provided.
Dimensions: 600 x 223 x 1,000mm.
Weight: 29kg.
Mirror cabinet with 30-year warranty (3 years for hand dryer).
CE marked.
* We recommend a PREMIX mixer.
Advantages
4 functions
Design: matte black and 304 st. steel finish
Hygiene: touch-free
One single electrical supply for all elements
Mirror cabinet with 4 functions
Ref. 510203
Supply
Mains: 230V / 50-60Hz
Connector
M3/8"
Technology
Electronic
Height
1,000mm
Depth
223mm
Width
600mm
Flow rate
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm
Thickness
Glass mirror: 4mm
Finish
Matte black melamine and 304 stainless steel
Certificates
Warranty
Repairability
Mirror cabinet with 4 functions
Ref.
510203
