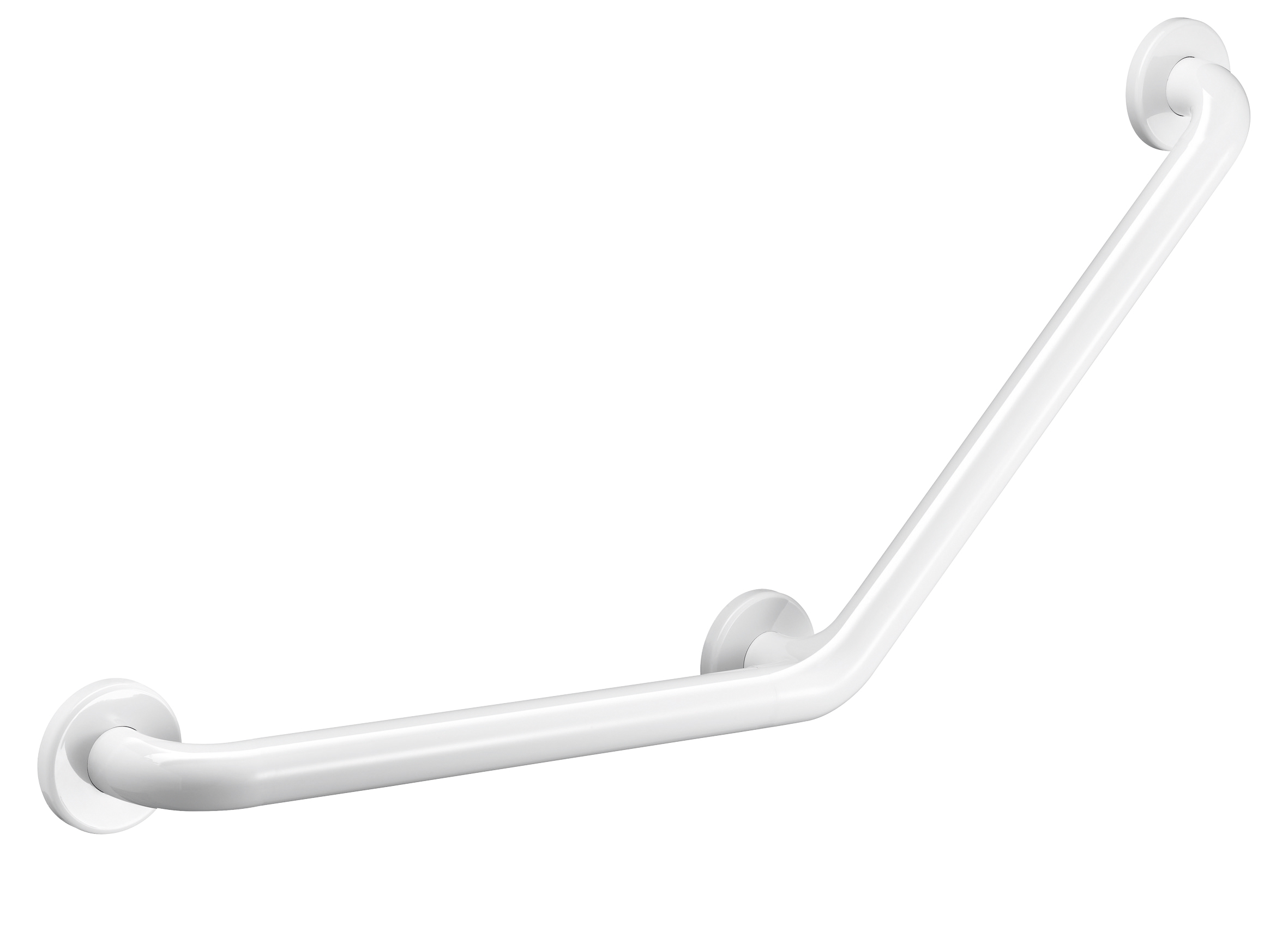

Angled stainless steel grab bar 135°, white, 400 x 400mm

Ref. 5082W
White powder-coated stainless steel, 3 fixing points
Angled stainless steel grab bar 135°, white, 400 x 400mm

Presentation

DESCRIPTION

Angled stainless steel grab bar 135°, white, 400 x 400mm

Ref. 5082W
Angled grab bar 135° for people with reduced mobility, Ø 32mm.
For use as a handrail (horizontal part) or as a grab bar (135° part) for WCs, showers or baths.
Universal for either left or right side.
Dimensions: 400 x 400mm.
Bacteriostatic 304 stainless steel tube, white powder-coated.
Plate welded to the tube by invisible bead weld (process exclusive to ArN-Securit).
40mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
3 fixing points prevent the hand from getting trapped and simplify installation.
Concealed fixings, secured to wall on a 3-hole, 304 stainless steel plate, Ø 72mm.
Supplied with stainless steel screws for concrete walls.
Tested to over 250kg. Maximum recommended user weight: 170kg.
Angled grab bar with a 30-year warranty.
CE marked.

ADVANTAGES

Sécurité

Tested to over 250kg

Maintenance aisée - Installation aisée

3 fixing points: easy to install

Faible espacement au mur - Encombrement limité

40mm gap between bar and wall: minimal space

Nettoyage aisé

Smooth surface easy to clean

Characteristics

TECHNICAL CHARACTERISTICS

Angled stainless steel grab bar 135°, white, 400 x 400mm

Ref. 5082W
Height 400mm
Length 400mm
Diameter 32mm
Width to the wall 40mm
Finish 304 stainless steel, white powder-coated
Certificates Logo CE Logo PZH
Warranty 30-Year

Downloads

DOWNLOADS

Angled stainless steel grab bar 135°, white, 400 x 400mm

Ref. 5082W

To download one or several documents linked to this product, please select the type of file you require :

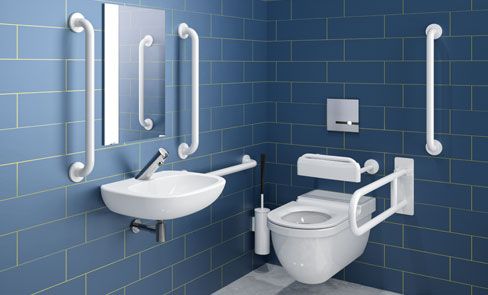

Standards and regulations for disabled toilets
Standards and regulations for disabled toilets
