Ref. 388MCHLH
Mains supply
7 variants
388MCHLH15 -
Mains supply - Spout H. 170mm- long lever -Ø15mm compression fittings
398MCHLH -
Mains supply - Spout H. 250mm - long lever - M3/8"
398MCHLH15 -
Mains supply - Spout H. 250mm- long lever - Ø15mm compression fittings
488MCHLH -
Battery operated - Spout H. 170mm - long lever - M3/8"
488MCHLH15 -
Battery op. - Spout H. 170mm - long lever - Ø15mm compression fittings
498MCHLH -
Battery operated - Spout H. 250mm - long lever - M3/8"
498MCHLH15 -
Battery op. - Spout H.250mm - long lever - Ø15mm compression fittings

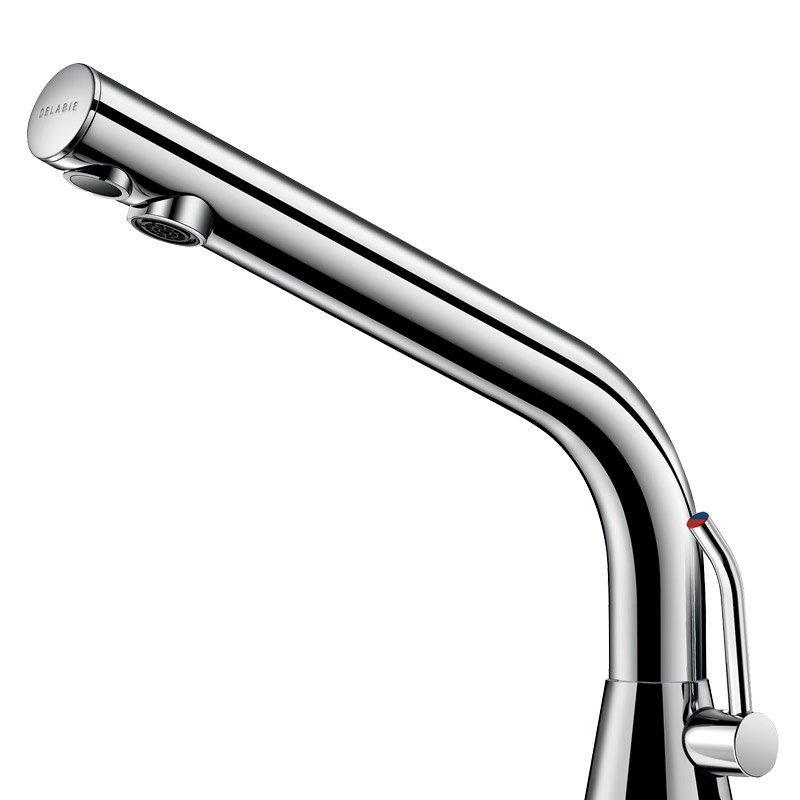

BINOPTIC MIX electronic mixer
Ref. 388MCHLH
Deck-mounted electronic basin mixer:
Independant IP65 electronic unit.
230/12V mains supply with transformer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Scale-resistant flow straightener.
Adjustable duty flush (pre-set at 60 seconds every 24 hours after the last use).
Optimised active infrared presence detection at the end of the spout.
Body in chrome-plated brass.
PEX flexibles with filters and M3/8" solenoid valves.
Fixings reinforced by 2 stainless steel rods.
Anti-blocking security.
Spout with smooth interior and low water volume (reduces niches where bacteria can develop).
Side temperature control lever with long lever and adjustable maximum temperature limiter.
Drop height: 170mm, for semi-recessed basins.
Suitable for people with reduced mobility.
30-year warranty.
Independant IP65 electronic unit.
230/12V mains supply with transformer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Scale-resistant flow straightener.
Adjustable duty flush (pre-set at 60 seconds every 24 hours after the last use).
Optimised active infrared presence detection at the end of the spout.
Body in chrome-plated brass.
PEX flexibles with filters and M3/8" solenoid valves.
Fixings reinforced by 2 stainless steel rods.
Anti-blocking security.
Spout with smooth interior and low water volume (reduces niches where bacteria can develop).
Side temperature control lever with long lever and adjustable maximum temperature limiter.
Drop height: 170mm, for semi-recessed basins.
Suitable for people with reduced mobility.
30-year warranty.
Advantages
BINOPTIC MIX electronic mixer
Ref. 388MCHLH
Supply
230/12V mains supply
Connector M3/8"
Technology Electronic

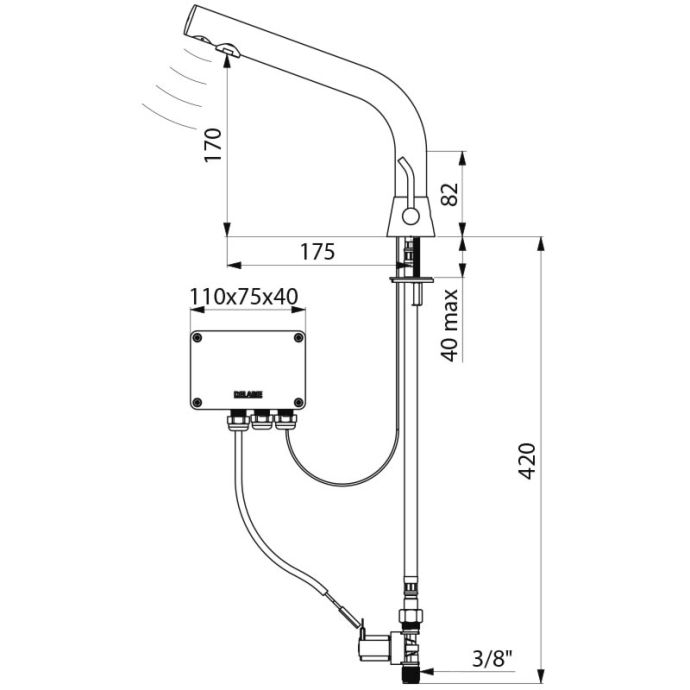

Drop height 170mm
Spout length 175mm
Flow rate 3 lpm
Certificates
Warranty
Repairability
Connector M3/8"
Technology Electronic
Drop height 170mm
Spout length 175mm
Flow rate 3 lpm
Certificates
Warranty
Repairability
BINOPTIC MIX electronic mixer
Ref. 388MCHLH
To download one or several documents linked to this product, please select the type of file you require
BINOPTIC MIX electronic mixer
Ref. 388MCHLH
An ergonomic temperature lever for the BINOPTIC
