Ref. 398MCHLH
Mains supply
7 variants
388MCHLH -
Mains supply - Spout H. 170mm - long lever - M3/8"
388MCHLH15 -
Mains supply - Spout H. 170mm- long lever -Ø15mm compression fittings
398MCHLH15 -
Mains supply - Spout H. 250mm- long lever - Ø15mm compression fittings
488MCHLH -
Battery operated - Spout H. 170mm - long lever - M3/8"
488MCHLH15 -
Battery op. - Spout H. 170mm - long lever - Ø15mm compression fittings
498MCHLH -
Battery operated - Spout H. 250mm - long lever - M3/8"
498MCHLH15 -
Battery op. - Spout H.250mm - long lever - Ø15mm compression fittings

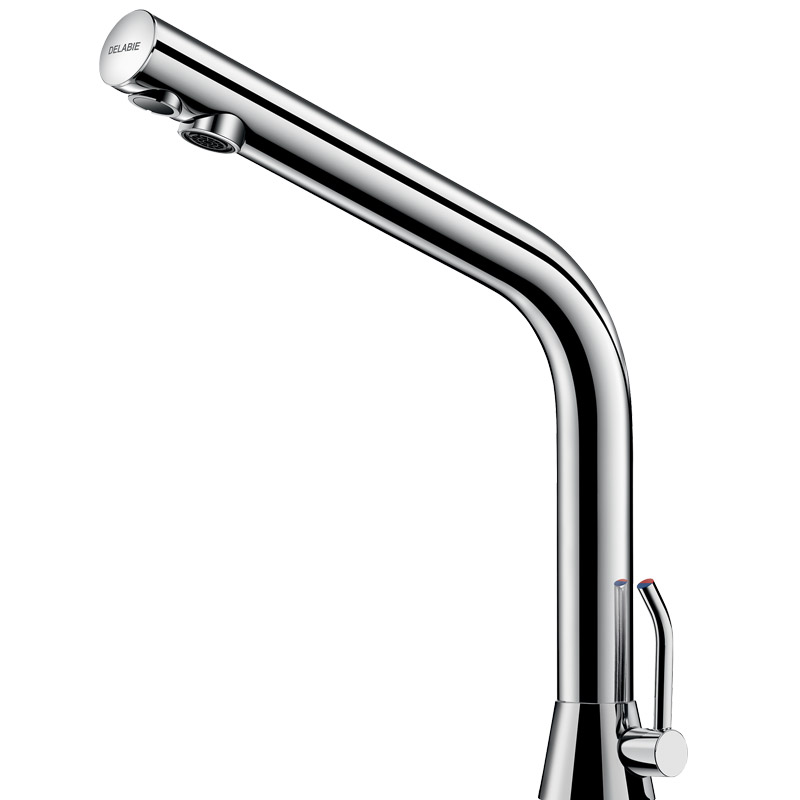

BINOPTIC MIX electronic mixer
Ref. 398MCHLH
Deck-mounted electronic basin mixer:
Independent IP65 electronic control unit.
230/12V mains supply with transformer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Scale-resistant flow straightener.
Adjustable duty flush (pre-set flush 60 seconds every 24 hours after last use).
Active, infrared presence detection, sensor at the end of the spout optimises detection.
Chrome-plated brass body.
PEX flexibles with filters and solenoid valves M⅜".
Fixing reinforced by 2 stainless steel rods.
Anti-blocking security.
Spout with smooth interior and low water volume (reduces bacterial development).
Side temperature control with long lever and adjustable maximum temperature limiter.
Drop height: 250mm for countertop washbasins.
Suitable for people with reduced mobility.
30-year warranty.
Independent IP65 electronic control unit.
230/12V mains supply with transformer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Scale-resistant flow straightener.
Adjustable duty flush (pre-set flush 60 seconds every 24 hours after last use).
Active, infrared presence detection, sensor at the end of the spout optimises detection.
Chrome-plated brass body.
PEX flexibles with filters and solenoid valves M⅜".
Fixing reinforced by 2 stainless steel rods.
Anti-blocking security.
Spout with smooth interior and low water volume (reduces bacterial development).
Side temperature control with long lever and adjustable maximum temperature limiter.
Drop height: 250mm for countertop washbasins.
Suitable for people with reduced mobility.
30-year warranty.
Advantages
BINOPTIC MIX electronic mixer
Ref. 398MCHLH
Supply
230/12V mains supply
Connector M3/8"
Technology Electronic
Drop height 250mm
Spout length 185mm
Flow rate 3 lpm
Certificates
Warranty
Repairability
Connector M3/8"
Technology Electronic
Drop height 250mm
Spout length 185mm
Flow rate 3 lpm
Certificates
Warranty
Repairability
BINOPTIC MIX electronic mixer
Ref. 398MCHLH
To download one or several documents linked to this product, please select the type of file you require
BINOPTIC MIX electronic mixer
Ref. 398MCHLH
An ergonomic temperature lever for the BINOPTIC
