Ref. 488MCHLH
Battery-operated
7 variants
388MCHLH -
Mains supply - Spout H. 170mm - long lever - M3/8"
388MCHLH15 -
Mains supply - Spout H. 170mm- long lever -Ø15mm compression fittings
398MCHLH -
Mains supply - Spout H. 250mm - long lever - M3/8"
398MCHLH15 -
Mains supply - Spout H. 250mm- long lever - Ø15mm compression fittings
488MCHLH15 -
Battery op. - Spout H. 170mm - long lever - Ø15mm compression fittings
498MCHLH -
Battery operated - Spout H. 250mm - long lever - M3/8"
498MCHLH15 -
Battery op. - Spout H.250mm - long lever - Ø15mm compression fittings

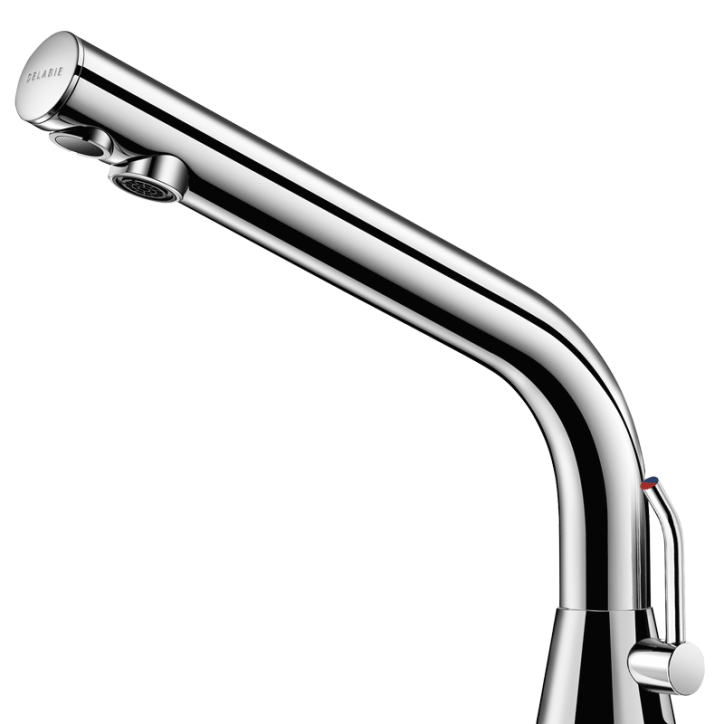

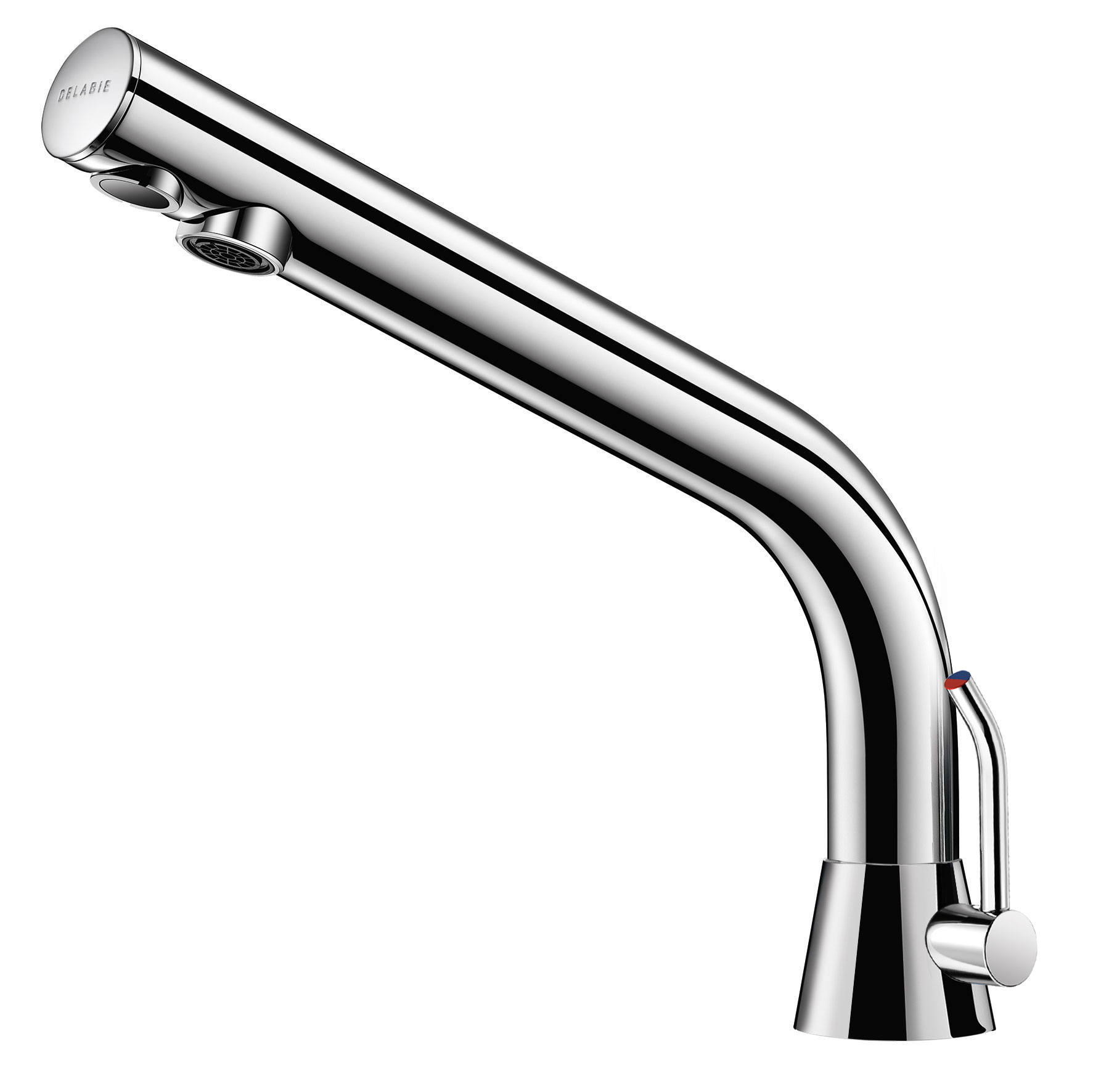

BINOPTIC MIX electronic mixer
Ref. 488MCHLH
Deck-mounted electronic basin mixer:
Independent IP65 electronic control unit.
123 6V Lithium batteries.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Scale-resistant flow straightener.
Adjustable duty flush (pre-set flush 60 seconds every 24 hours after last use).
Active, infrared presence detection, sensor at the end of the spout optimises detection.
Chrome-plated brass body.
PEX flexibles with filters and solenoid valves M⅜".
Fixing reinforced by 2 stainless steel rods.
Anti-blocking security.
Spout with smooth interior and low water volume (reduces bacterial development).
Side temperature control with long lever and adjustable maximum temperature limiter.
Drop height: 170mm for semi-recessed washbasins.
Suitable for people with reduced mobility.
30-year warranty.
Independent IP65 electronic control unit.
123 6V Lithium batteries.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Scale-resistant flow straightener.
Adjustable duty flush (pre-set flush 60 seconds every 24 hours after last use).
Active, infrared presence detection, sensor at the end of the spout optimises detection.
Chrome-plated brass body.
PEX flexibles with filters and solenoid valves M⅜".
Fixing reinforced by 2 stainless steel rods.
Anti-blocking security.
Spout with smooth interior and low water volume (reduces bacterial development).
Side temperature control with long lever and adjustable maximum temperature limiter.
Drop height: 170mm for semi-recessed washbasins.
Suitable for people with reduced mobility.
30-year warranty.
Advantages
BINOPTIC MIX electronic mixer
Ref. 488MCHLH

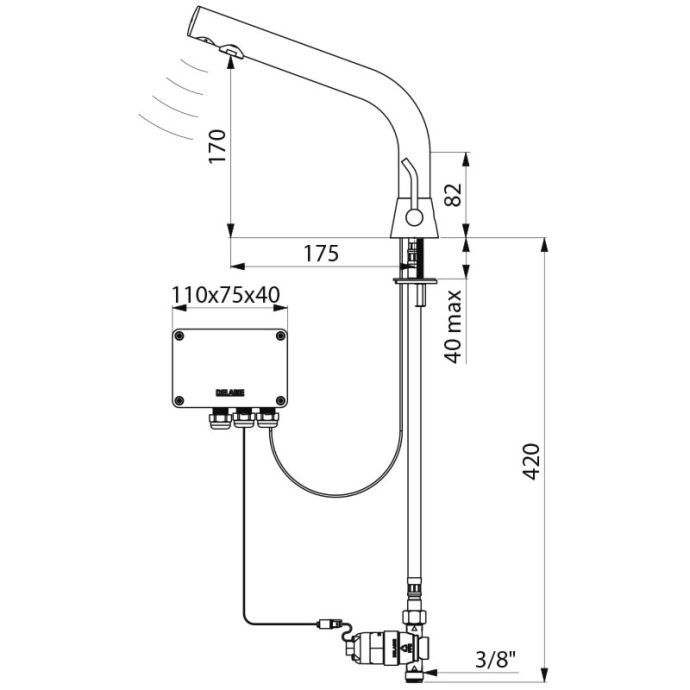

Supply
6V batteries
Connector M3/8"
Technology Electronic
Drop height 170mm
Spout length 175mm
Flow rate 3 lpm
Certificates
Warranty
Repairability
Connector M3/8"
Technology Electronic
Drop height 170mm
Spout length 175mm
Flow rate 3 lpm
Certificates
Warranty
Repairability
BINOPTIC MIX electronic mixer
Ref. 488MCHLH
To download one or several documents linked to this product, please select the type of file you require
BINOPTIC MIX electronic mixer
Ref. 488MCHLH
An ergonomic temperature lever for the BINOPTIC
