DESCRIPTION

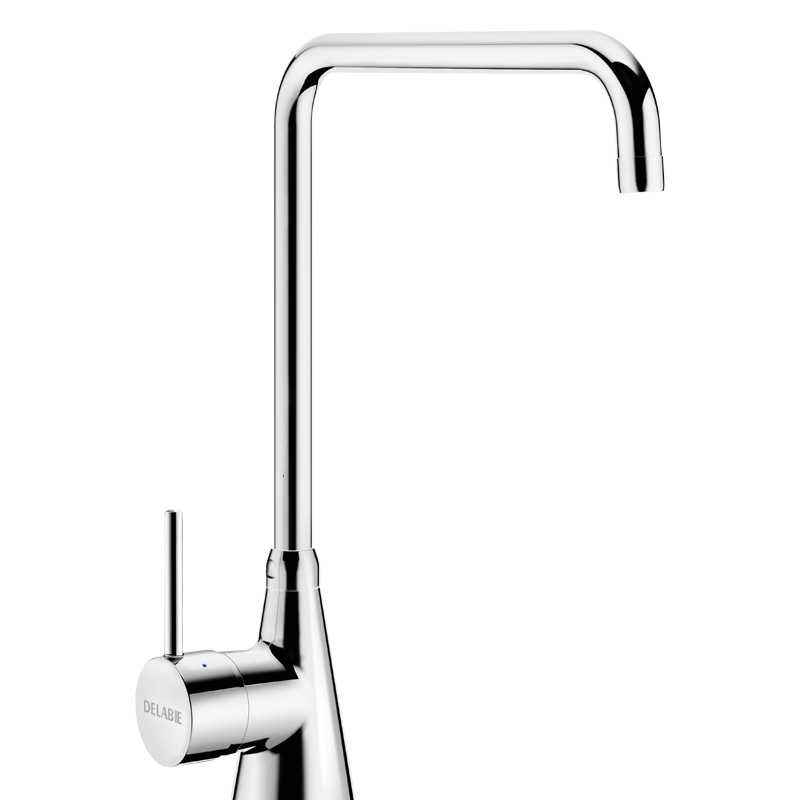

Deck-mounted single hole mixer - 60 lpm
Ref. 5650T3Deck-mounted single hole catering mixer.
Swivelling tubular spout H. 355mm L. 300mm with hygienic flow straightener.
Ceramic cartridge Ø 45mm.
Flow rate 60 lpm at 3 bar.
Spout with smooth interior.
Slimline control lever.
Chrome-plated brass body and spout.
Soldered copper pipe water inlets.
Reinforced fixing.
30-year warranty.
Swivelling tubular spout H. 355mm L. 300mm with hygienic flow straightener.
Ceramic cartridge Ø 45mm.
Flow rate 60 lpm at 3 bar.
Spout with smooth interior.
Slimline control lever.
Chrome-plated brass body and spout.
Soldered copper pipe water inlets.
Reinforced fixing.
30-year warranty.
ADVANTAGES
![Remplissage rapide](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/9/5/0/3/3059-12-eng-US/remplissage-rapide.png)
Rapid fill: flow rate 60 lpm at 3 bar
![Anti-vandalisme](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/7/8/8/2/2887-12-eng-US/antivandalisme.png)
Body and spout suitable for professional use
![Hygiène - Anti-bactérien - BIOSAFE](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/1/0/0/3/3001-12-eng-US/antibacterien.png)
Hygiene: spout with smooth interior
![Endurance - Fiabilité](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/3/7/9/2/2973-12-eng-US/endurance.png)
Reinforced fixing
TECHNICAL CHARACTERISTICS
Deck-mounted single hole mixer - 60 lpm
Ref. 5650T3Connector | Copper tails |

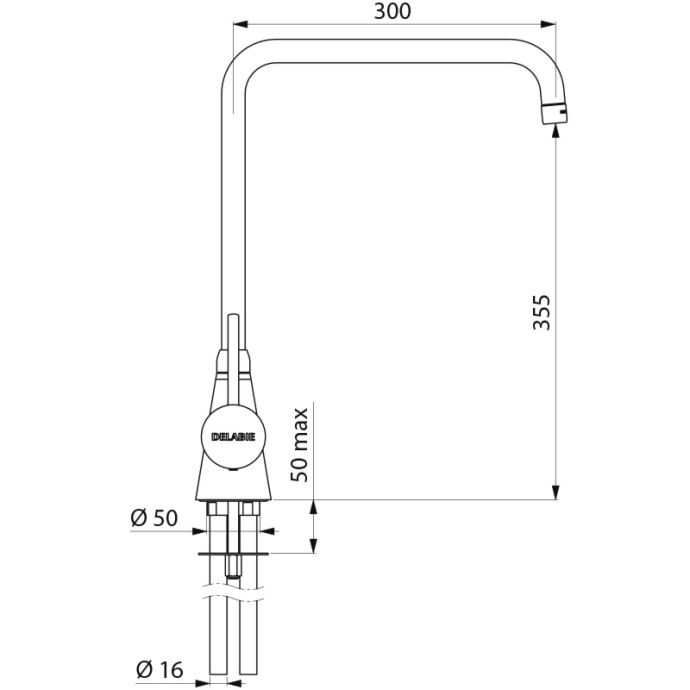

Drop height | 355mm |
Spout length | 300mm |
Flow rate | 60 lpm |
Finish | Chrome-plated brass |
Certificates |
![]() ![]() |
Warranty | ![]() |
Repairability | ![]() |
Spare parts

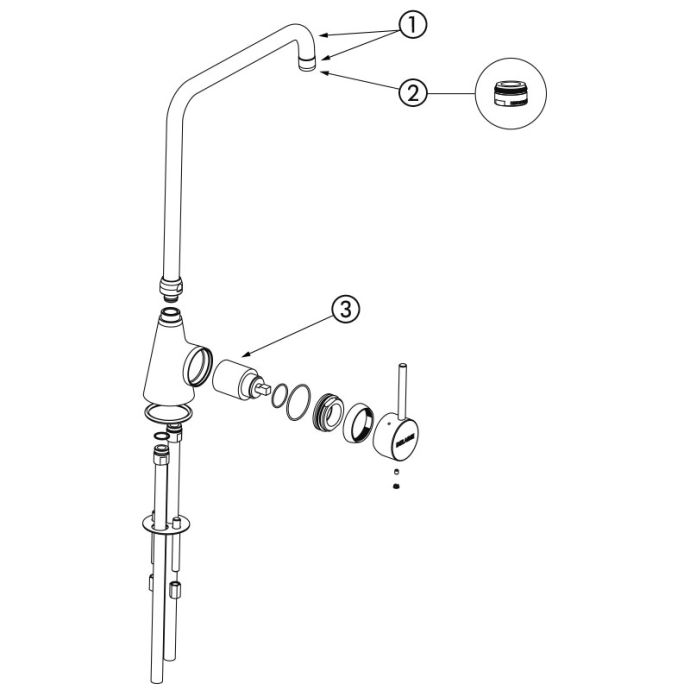

SPARE PARTS
Deck-mounted single hole mixer - 60 lpm
Ref. 5650T3![](https://www.delabie.com/var/site/storage/images/0/2/1/2/3282120-4-fre-FR/PD_5650T3.jpg)
1. | 963300245F |
|
Swivelling, tubular spout |
2. | 921022.2P |
|
Star-shaped flow straightener |
3. | NS565 |
|
Ø45mm ceramic cartridge |
VARIANTS

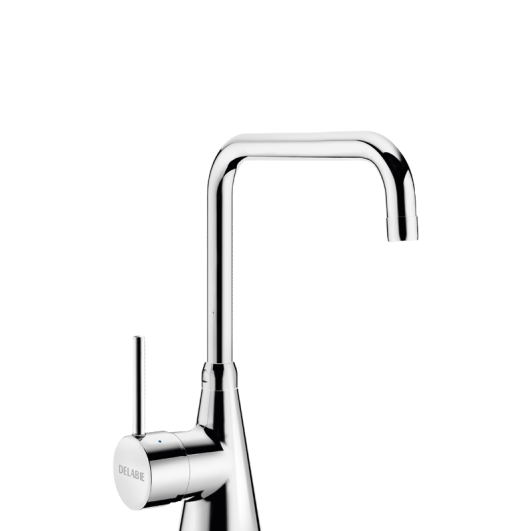

5650T2 | Single hole mixer 60 lpm - H.255 L.200 | ||
---|---|---|---|

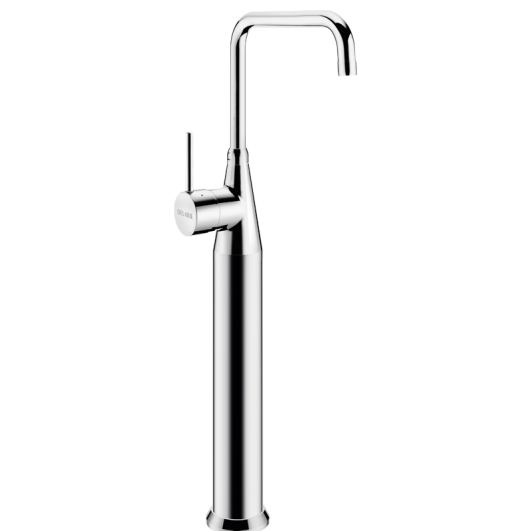

5652 | Single hole mixer 60 lpm with riser column - H.685 L.300 |
VARIANTS
5650T2 | Single hole mixer 60 lpm - H.255 L.200 | ||
---|---|---|---|
5652 | Single hole mixer 60 lpm with riser column - H.685 L.300 |
