Wall-hung trough urinal

Ref. 130100
Polished satin 304 stainless steel - L. 1200mm
Wall-hung trough urinal



Wall-hung trough urinal

Ref. 130100

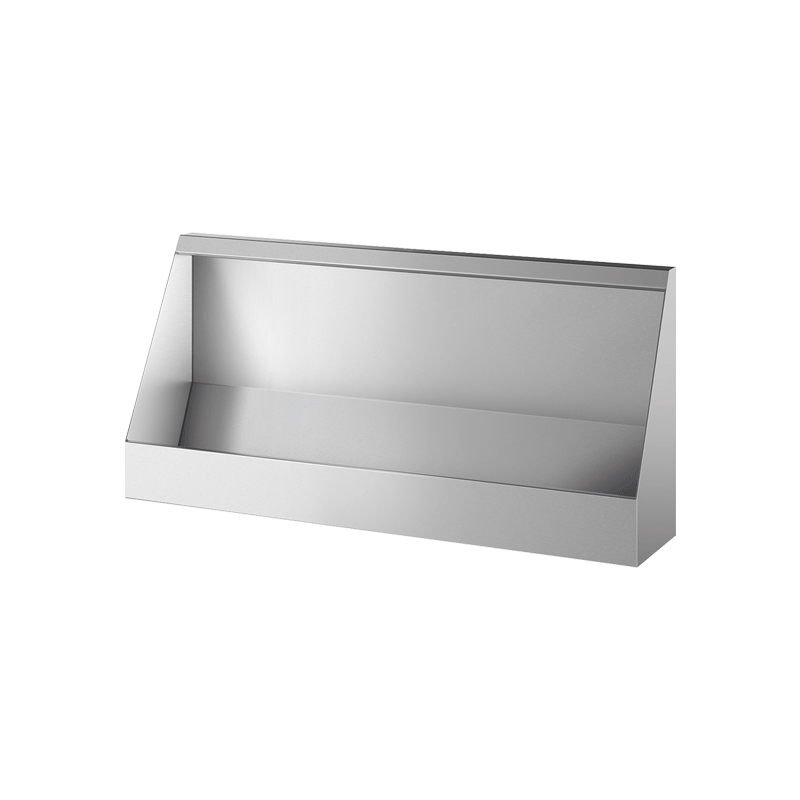

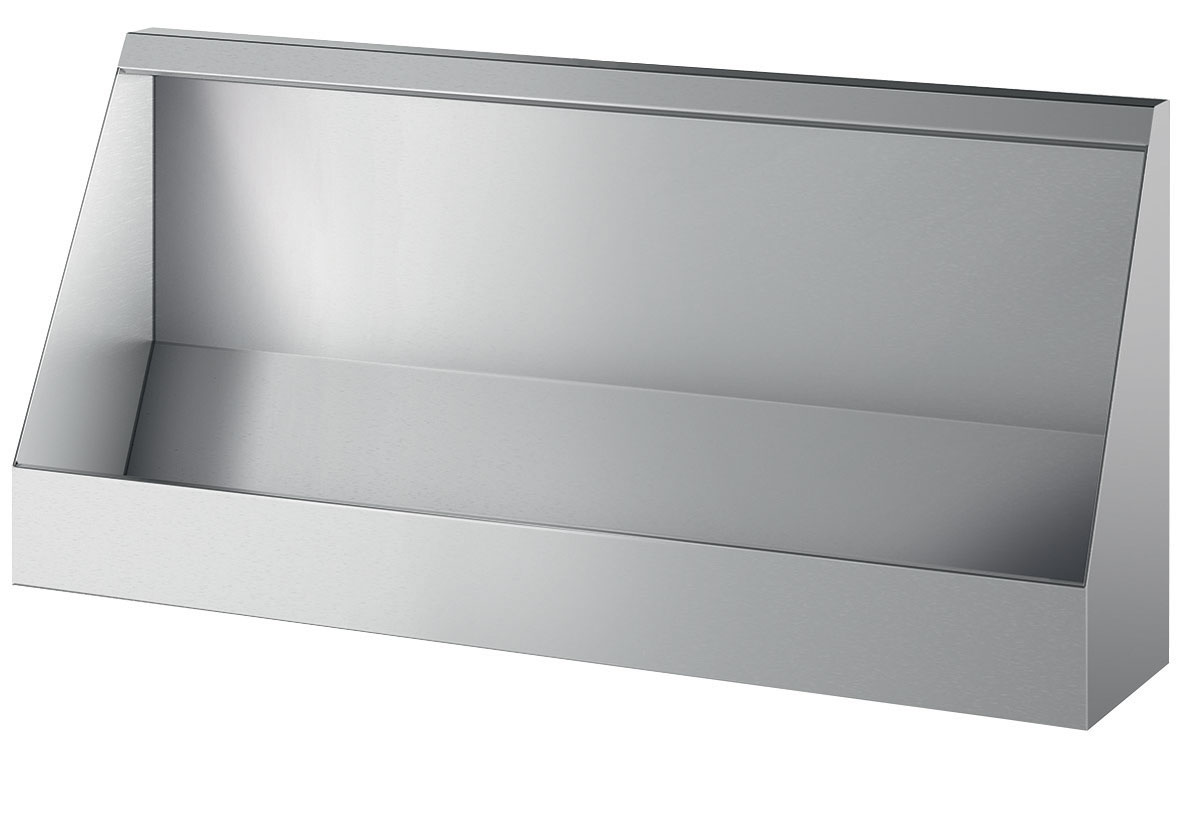

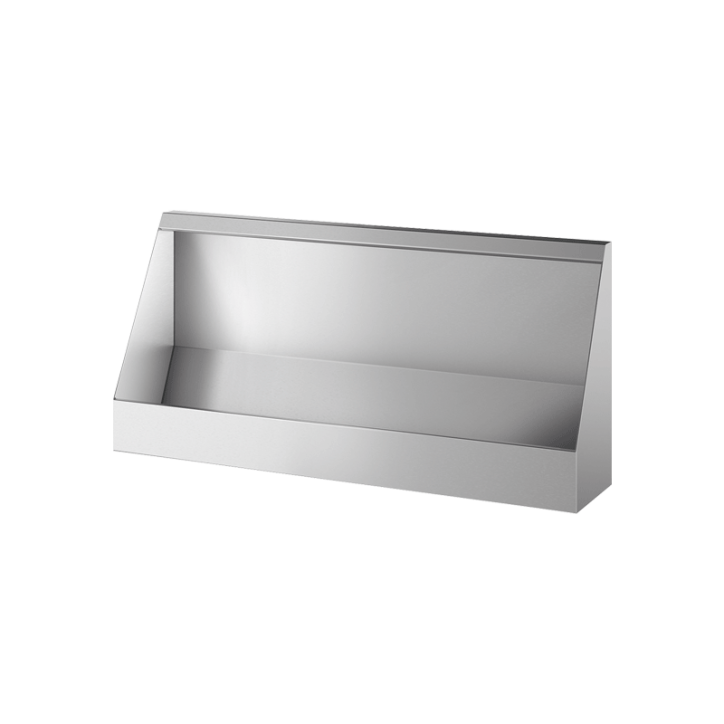

Wall-hung trough urinal, 1200 x 575 x 275mm.
Bacteriostatic 304 stainless steel. Polished satin finish.
Stainless steel thickness: 1.2mm.
Top water inlet F½".
Supplied with 1 stainless steel sparge pipe (perforated horizontal pipe) for optimum rinsingof urinal surface.
Vertical waste outlet.
Water saving: optimal rinsing with 0.1 L/sec. per service i.e. 0.3L per use.
Drainage on the right. Waste outlet 1½".
Supplied with fixing elements.
Without trap.

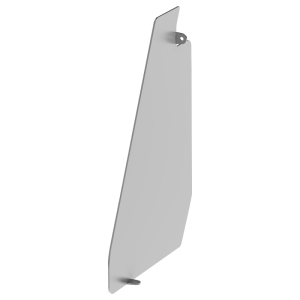

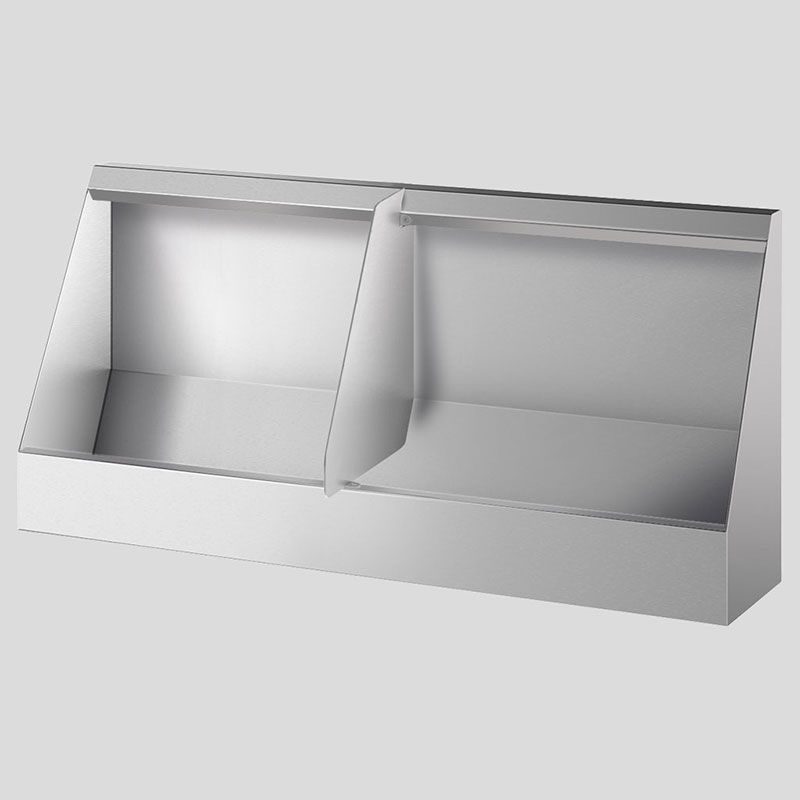

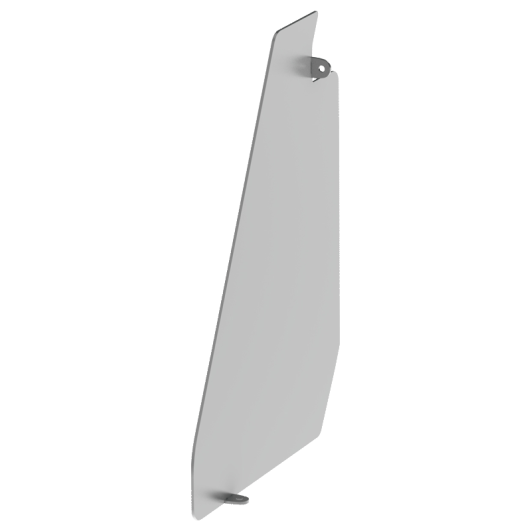

Possible to add one or more bacteriostatic 304 stainless steel dividers (ref. 100900). Fix directly onto the urinal in the desired location.
Installation advice: if you wish to install 2 urinals side by side, we recommend ordering one urinal with drainage on the left and one with drainage on the right.
Weight: 17.5kg.


Nettoyage aisé

Bacteriostatic 304 stainless steel



Wall-hung trough urinal

Ref. 130100

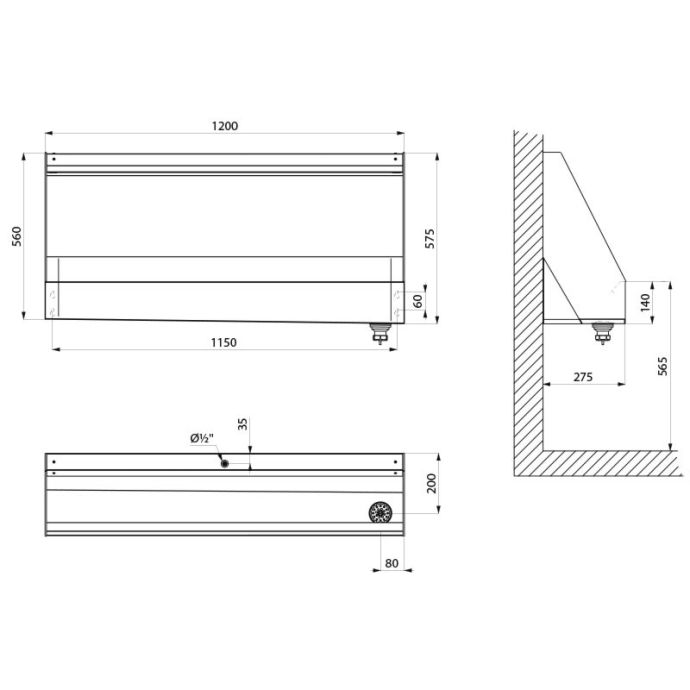

Supply Top inlet/Exposed
Height 575mm
Length 275mm
Width 1200mm
Thickness 1.2mm
Finish 304 polished satin stainless steel
Certificates Logo PZH
Warranty 30-Year



Wall-hung trough urinal

Ref. 130100

To download one or several documents linked to this product, please select the type of file you require :


130110 3 users - L. 1800mm
130120 4 users - L. 2400mm
