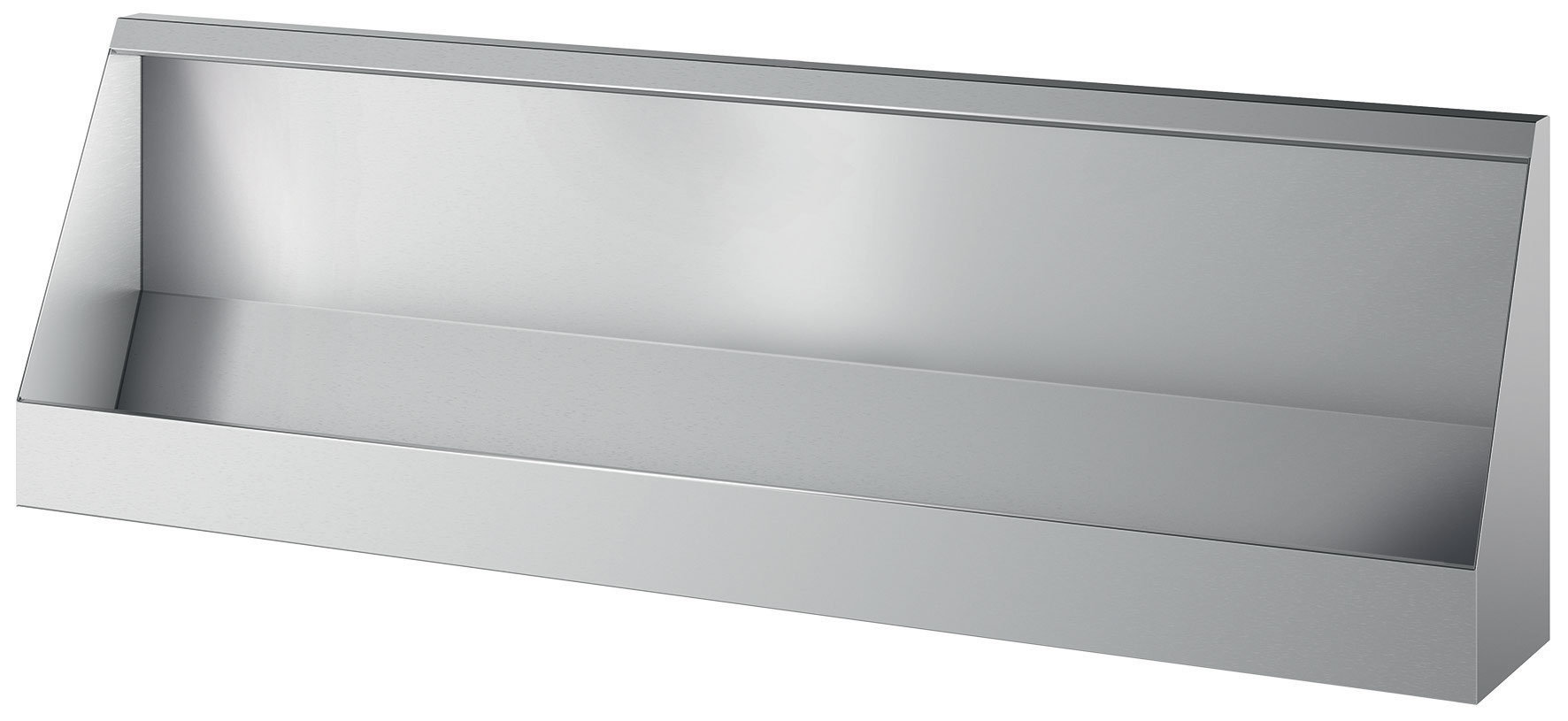

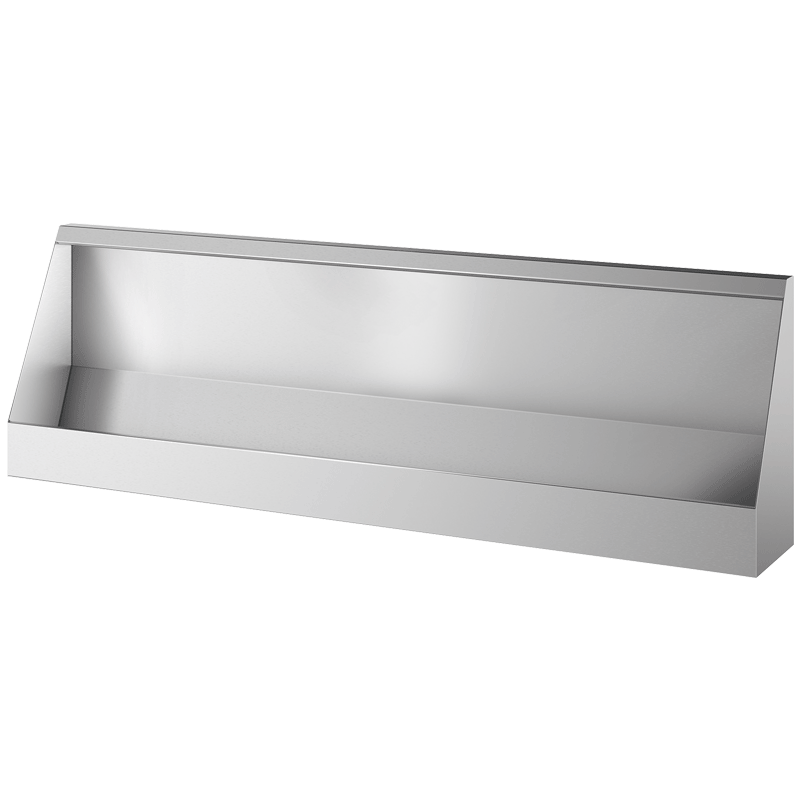

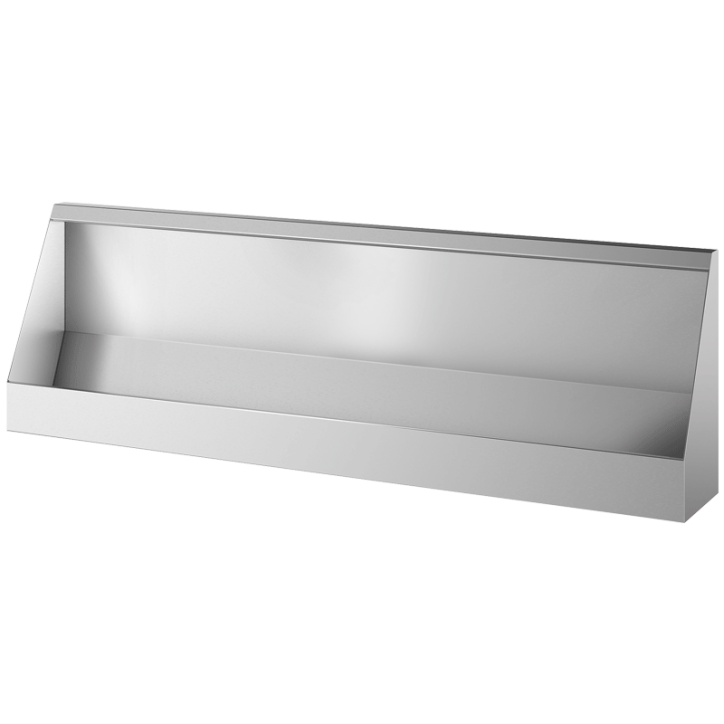

Wall-hung trough urinal
Ref. 130110
Polished satin 304 stainless steel - L. 1800mm
Polished satin 304 stainless steel - L. 1800mm
DESCRIPTION
Wall-hung trough urinal

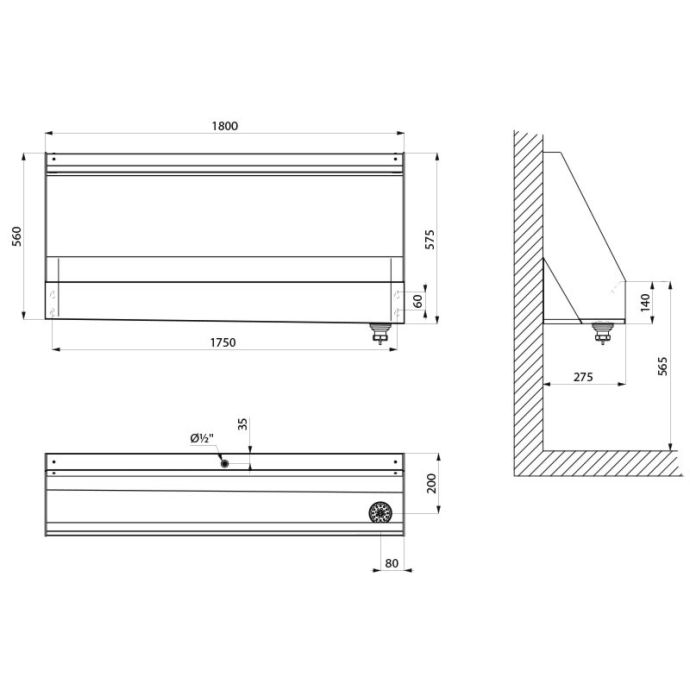

Ref. 130110Wall-hung trough urinal, 1800 x 575 x 275mm.
Bacteriostatic 304 stainless steel. Polished satin finish.
Stainless steel thickness: 1.2mm.
Top water inlet F½".
Supplied with 1 stainless steel spreader pipe (perforated horizontal pipe) for optimum rinsing of urinal surface.
Water savings: optimal rinsing with 0.1 L/sec. per service i.e. 0.3L per use.
Drainage on the right. Waste outlet 1½".
Supplied with fixing elements.
Without trap.

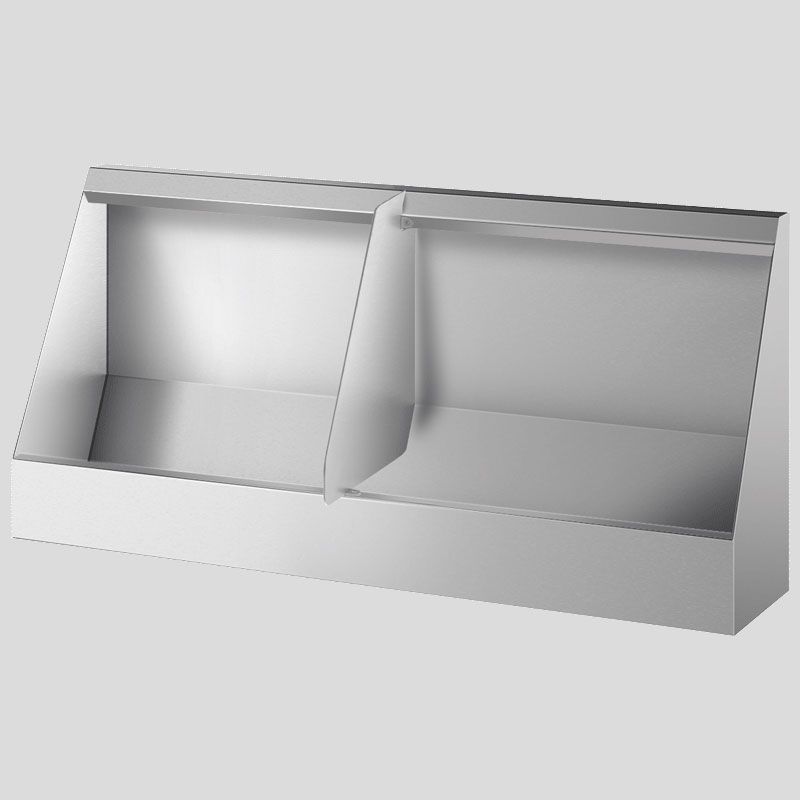

Possible to add one or more bacteriostatic 304 stainless steel dividers (ref. 100900). Fix directly onto the urinal in the desired location.
Installation advice: if you wish to install 2 urinals side by side, we recommend ordering one urinal with drainage on the left and one with drainage on the right.
Weight: 24.8kg.
Bacteriostatic 304 stainless steel. Polished satin finish.
Stainless steel thickness: 1.2mm.
Top water inlet F½".
Supplied with 1 stainless steel spreader pipe (perforated horizontal pipe) for optimum rinsing of urinal surface.
Water savings: optimal rinsing with 0.1 L/sec. per service i.e. 0.3L per use.
Drainage on the right. Waste outlet 1½".
Supplied with fixing elements.
Without trap.
Possible to add one or more bacteriostatic 304 stainless steel dividers (ref. 100900). Fix directly onto the urinal in the desired location.
Installation advice: if you wish to install 2 urinals side by side, we recommend ordering one urinal with drainage on the left and one with drainage on the right.
Weight: 24.8kg.
ADVANTAGES

Bacteriostatic 304 stainless steel
TECHNICAL CHARACTERISTICS
Wall-hung trough urinal
Ref. 130110| Supply | Top inlet/Exposed |
| Height | 575mm |
| Length | 275mm |
| Width | 1800mm |
| Thickness | 1.2mm |
| Finish | 304 polished satin stainless steel |
| Certificates |
|
| Warranty | |
VARIANTS
| 130100 | 2 users - L. 1200mm | ||
|---|---|---|---|
| 130120 | 4 users - L. 2400mm |
VARIANTS
| 130100 | 2 users - L. 1200mm | ||
|---|---|---|---|
| 130120 | 4 users - L. 2400mm |
