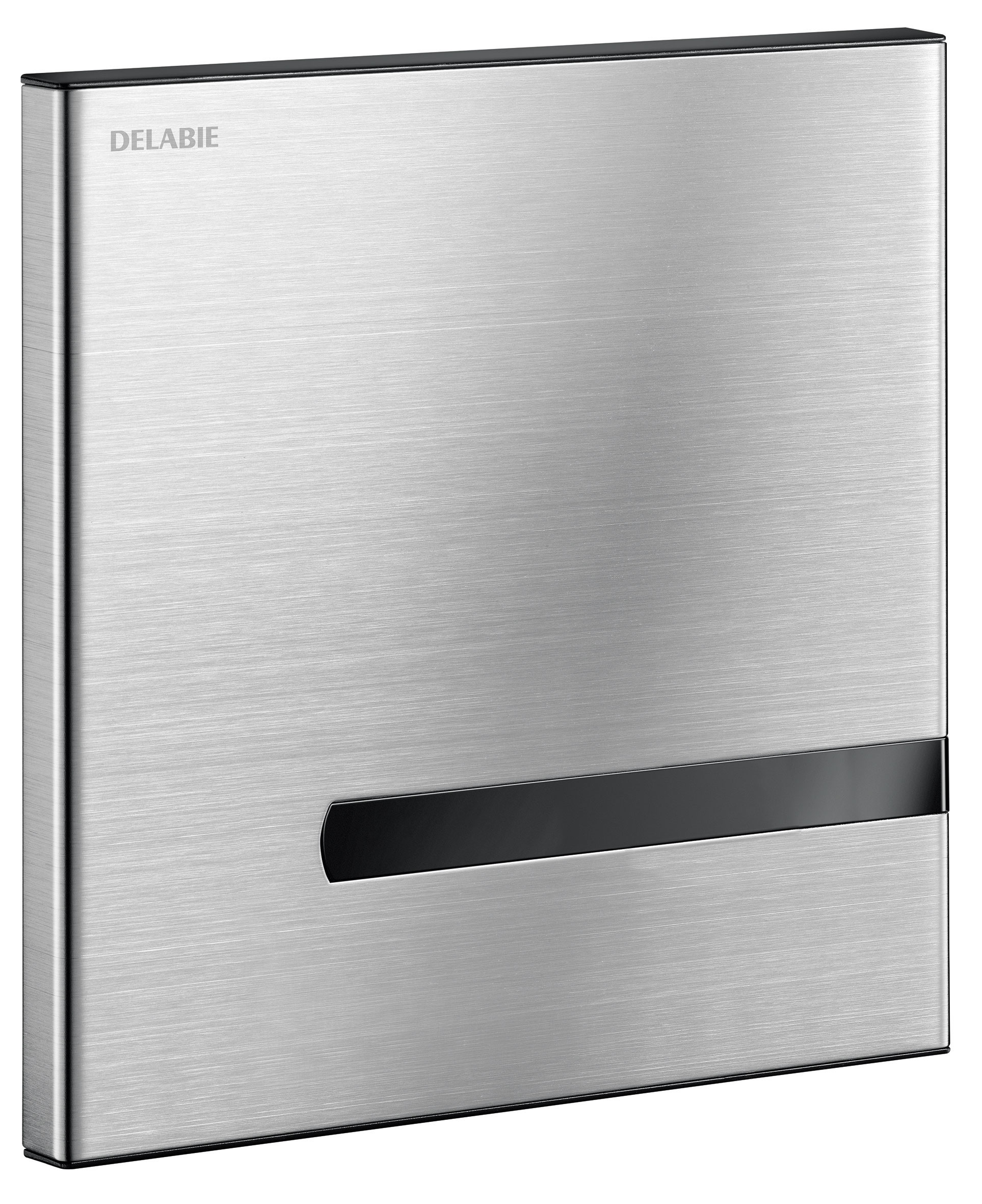

TEMPOMATIC Connect control plate for WCs

Ref. 465006
Recessed dual control electronic battery operated valve - For WCs
TEMPOMATIC Connect control plate for WCs



TEMPOMATIC Connect control plate for WCs

Ref. 465006
Provisional availability 1st half
Please contact the sales office to check availability.
TEMPOMATIC Connect recessed electronic valve for direct flush, kit 2/2:
Flush system without cistern: directly connected to pipework.
Battery-operated with CR123 6V Lithium batteries.
Satin finish stainless steel wall plate 186 x 186mm.
Mechanical fixing of the control plates.
TEMPOMATIC F¾" flush valve is compatible with sea water, rain water and grey water.
Powerful presence detection thanks to double sensor technology (telemetric and infrared).
Detection delay is 10 seconds.
Two modes of operation:
- Contactless by waving the hand in front of the sensor,
- Automatic flush is activated after each user to ensure optimum hygiene.
"Intelligent" automatic rinsing: flush volume adapts according to use - 3L "short" usage, 6L "long" usage - (can be adjusted).
Hygienic duty flush every 24 hours (can be adjusted to 12 hours or OFF) after the last use or at a set time.
Bluetooth® technology connects to the DELABIE Connect app or presence detection distance can be automatically adjusted via a concealed button.
Supply diameter: minimum Ø 20mm interior at all points (including connectors).
Base flow rate: 1L/sec at 1 bar dynamic pressure.
Suitable for rimless WC pans and suitable for people with reduced mobility.
30-year warranty.

Order with frame system references 564060 or 564065, or with recessed housing 464PBOX.


Sans contact manuel

Total hygiene: no manual contact

Hygiène - Anti-bactérien - BIOSAFE

Cistern-less flush: no water stagnation

Confort - Ergonomie - Déclenchement souple

Voluntary or automatic operation


Easy to configure & monitor operation



TEMPOMATIC Connect control plate for WCs

Ref. 465006
Supply 6V batteries
Connector F3/4"
Technology Electronic
Length 186mm
Width 186mm
Finish Brushed stainless steel
Warranty 30-Year



TEMPOMATIC Connect control plate for WCs

Ref. 465006

To download one or several documents linked to this product, please select the type of file you require :


465000 Mains supply 230/6V, F3/4", outlet for Ø26/32mm pipe
