Ref. 564000DE
For electronic TEMPOMATIC mains supply flush valve - Ø 110mm
5 variants
564000 -
Mains supply- wall-mounted- for walls 10-120mm - F¾" - Ø 100mm outlet
564000BE -
Mains supply- wall-mounted- for walls 10-120mm - F¾" - Ø 90mm outlet
564060 -
Time flow or battery-operated - Wall-mounted - Ø 100mm outlet connection - For walls 10 - 120mm
564060BE -
Time flow or batteries - wall-mtd- for walls 10-120mm- F¾"- Ø 90mm outlet
564060DE -
Time flow or batteries - wall-mtd- for walls 10-120mm- F¾"- Ø 110mm outlet

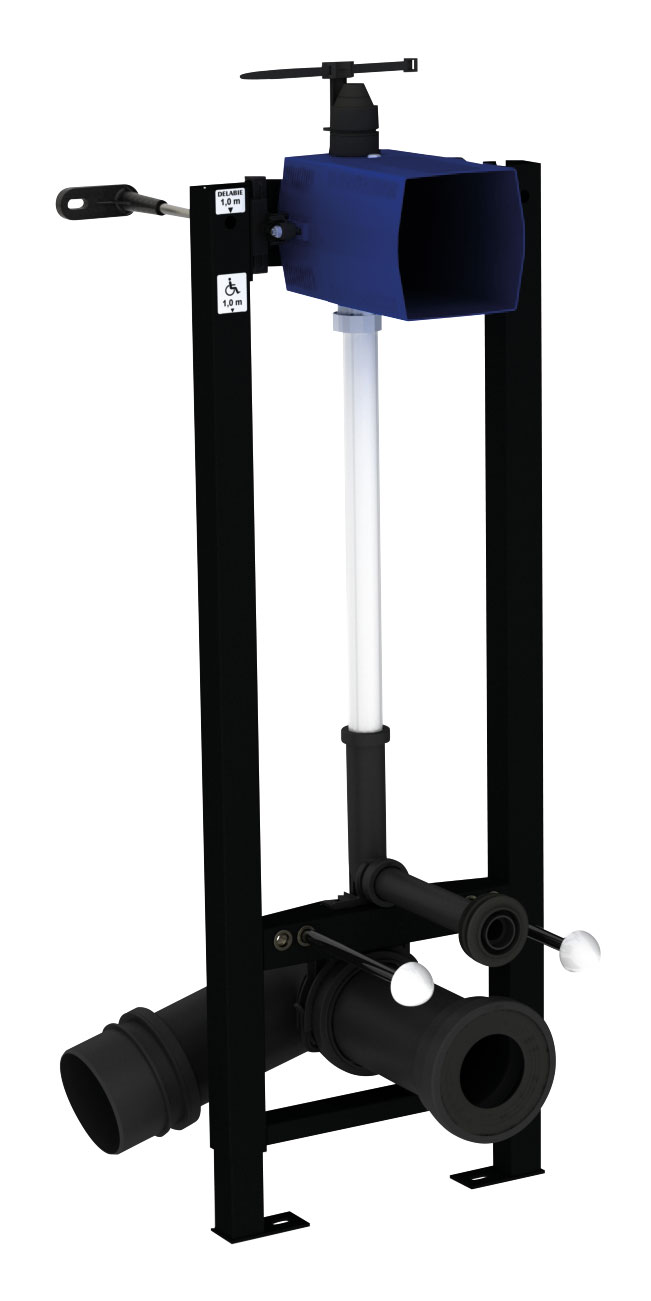

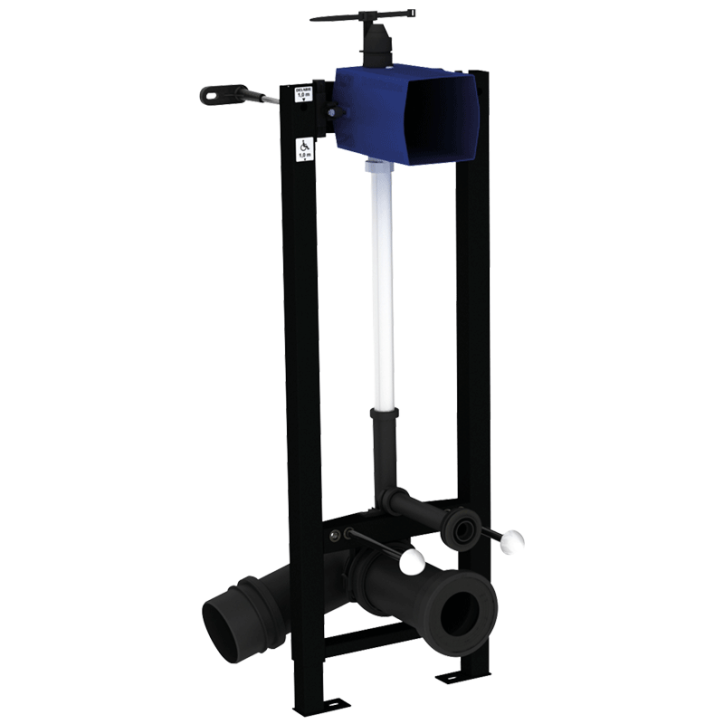

TEMPOFIX 3 wall-mounted frame system for WCs
Ref. 564000DE
Wall-mounted frame system for wall-hung WCs, kit 1/2:
Black powder-coated steel frame:
- For fixing to load-bearing walls.
- Frame height can be adjusted from 0 - 200mm (with 1m mark).
- Compatible with solid walls from 10 - 120mm.
- Ø 32mm flush tube with Ø 55mm connection washer.
- ABS soil pipe, Ø 110mm HDPE outlet with waterproof seal, with 2 setting positions.
Recessed waterproof housing: flush system without cistern, directly connected to pipework.
- Compatible with TEMPOMATIC dual control or TEMPOMATIC Connect electronic WC valves.
- Compatible with 230/6V mains supply.
- Backflow prevention device inside the housing.
- Integrated stopcock and flow rate regulation.
Supplied pre-mounted.
30-year warranty.
Order with control plate references 464000, 464050, 465000 or 465050.
Black powder-coated steel frame:
- For fixing to load-bearing walls.
- Frame height can be adjusted from 0 - 200mm (with 1m mark).
- Compatible with solid walls from 10 - 120mm.
- Ø 32mm flush tube with Ø 55mm connection washer.
- ABS soil pipe, Ø 110mm HDPE outlet with waterproof seal, with 2 setting positions.
Recessed waterproof housing: flush system without cistern, directly connected to pipework.
- Compatible with TEMPOMATIC dual control or TEMPOMATIC Connect electronic WC valves.
- Compatible with 230/6V mains supply.
- Backflow prevention device inside the housing.
- Integrated stopcock and flow rate regulation.
Supplied pre-mounted.
30-year warranty.
Order with control plate references 464000, 464050, 465000 or 465050.
Advantages
TEMPOFIX 3 wall-mounted frame system for WCs
Ref. 564000DE
Connector
¾"

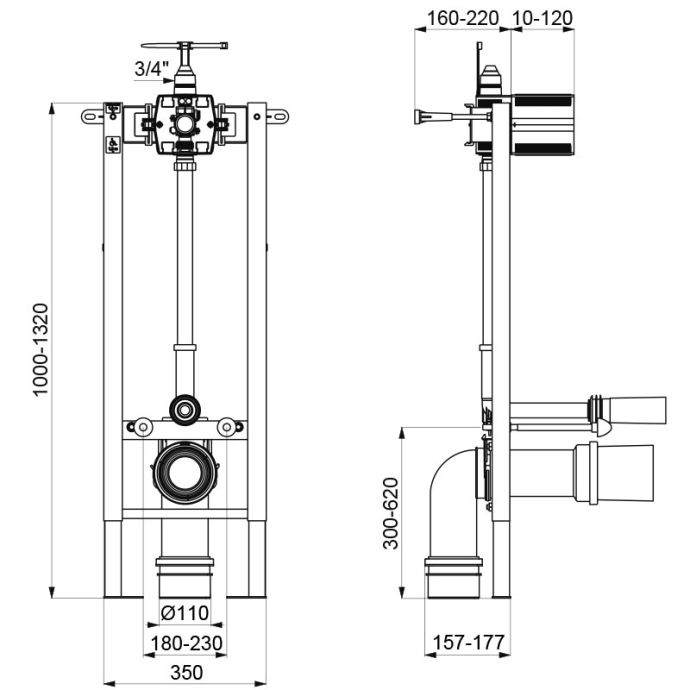

Technology Electronic and time flow
Height 1000 to1320mm
Depth 157 - 177mm
Width 350mm
Diameter Ø 110mm outlet
Finish Black powder-coated steel
Warranty
Technology Electronic and time flow
Height 1000 to1320mm
Depth 157 - 177mm
Width 350mm
Diameter Ø 110mm outlet
Finish Black powder-coated steel
Warranty
TEMPOFIX 3 wall-mounted frame system for WCs
Ref. 564000DE
To download one or several documents linked to this product, please select the type of file you require
This intelligent, electronic direct flush valve functions without a cistern. Discover its advantages in this video
WC direct flush system, a public revolution
