Wall-mounted frame system for wall-hung WCs, kit 1/2:
Black powder-coated steel frame:
- For fixing to load-bearing walls.
- Frame height can be adjusted from 0 - 200mm (with 1m mark).
- Compatible with solid walls from 10 - 120mm.
- Ø 32mm flush tube with Ø 55mm connection washer.
- ABS soil pipe, Ø 100mm outlet to glue to waterproof seal, with 2 setting positions.
Recessed waterproof housing: flush system without cistern, directly connected to pipework.
- Compatible with electronic or time flow valves for WCs.
- Compatible with CR123 Lithium 6V battery.
- Backflow prevention device inside the housing.
- Integrated stopcock and flow rate regulation.
Supplied pre-mounted.
30-year warranty.
Order with control plate references 464006, 465006, 465056, 763000, 763030, 763040 or 763041.
Advantages
Quick and easy to install: delivered pre-mounted
Space-saving
Adapt to wall thickness
Compatible with 6V Lithium batteries

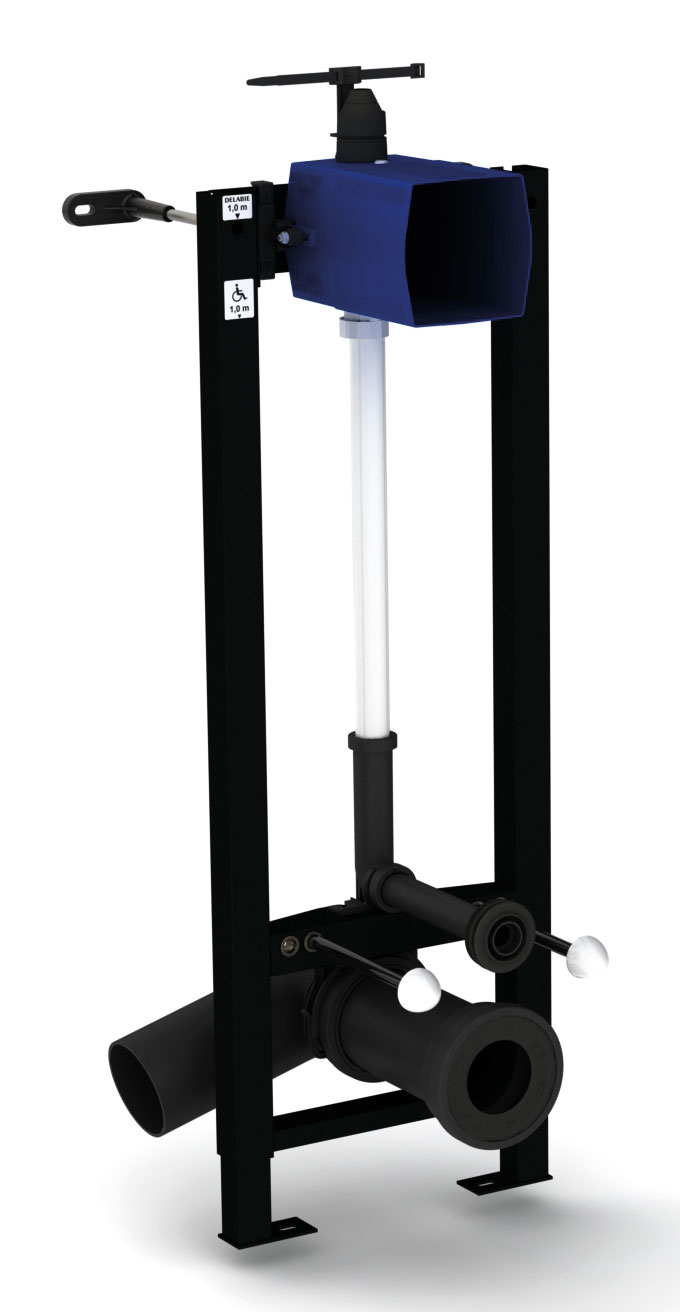

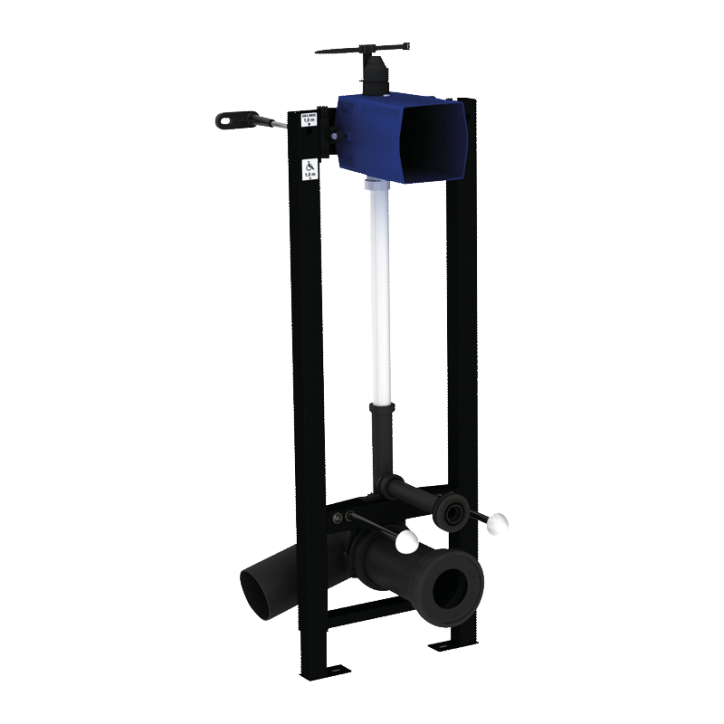

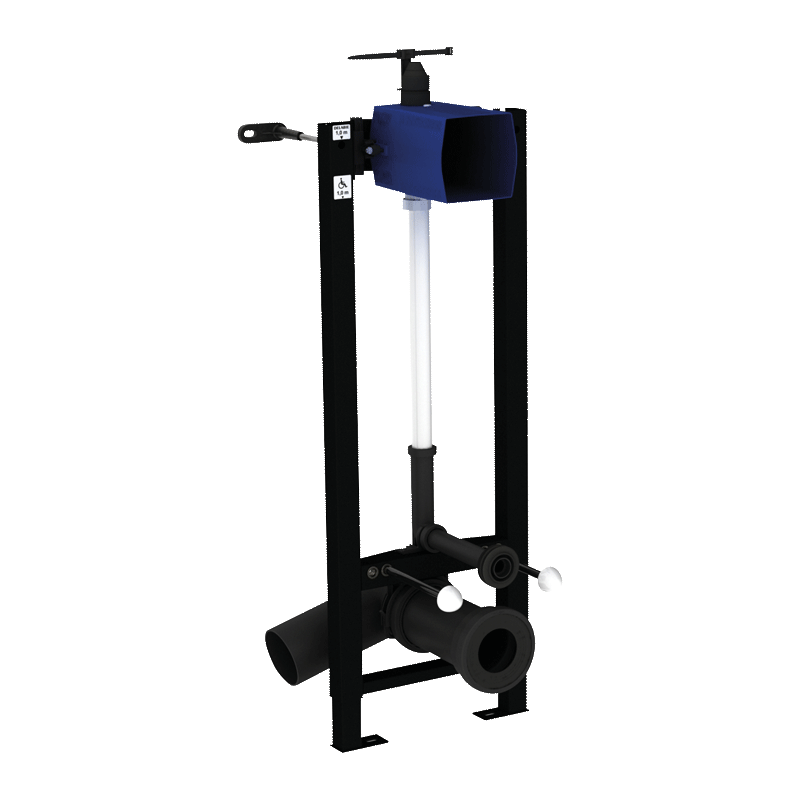

TEMPOFIX 3 wall-mounted frame system for WCs
Ref. 564060
Connector
¾"
Technology
Electronic and time flow

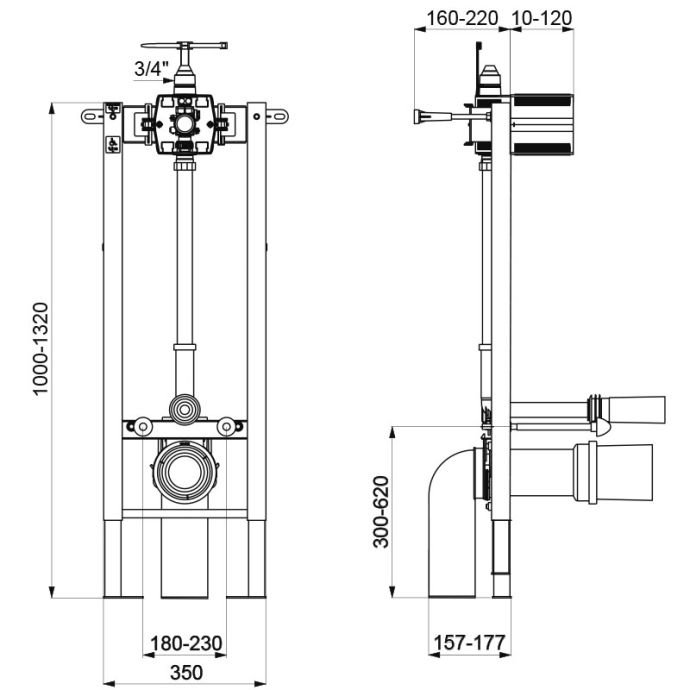

Height
1000 to 1320mm
Depth
157 - 177mm
Width
350mm
Diameter
Ø 100mm outlet
Finish
Black powder-coated steel
Certificates
Warranty
TEMPOFIX 3 wall-mounted frame system for WCs
Ref.
564060
To download one or several documents linked to this product, please select the type of file you require
This intelligent, electronic direct flush valve functions without a cistern. Discover its advantages in this video
