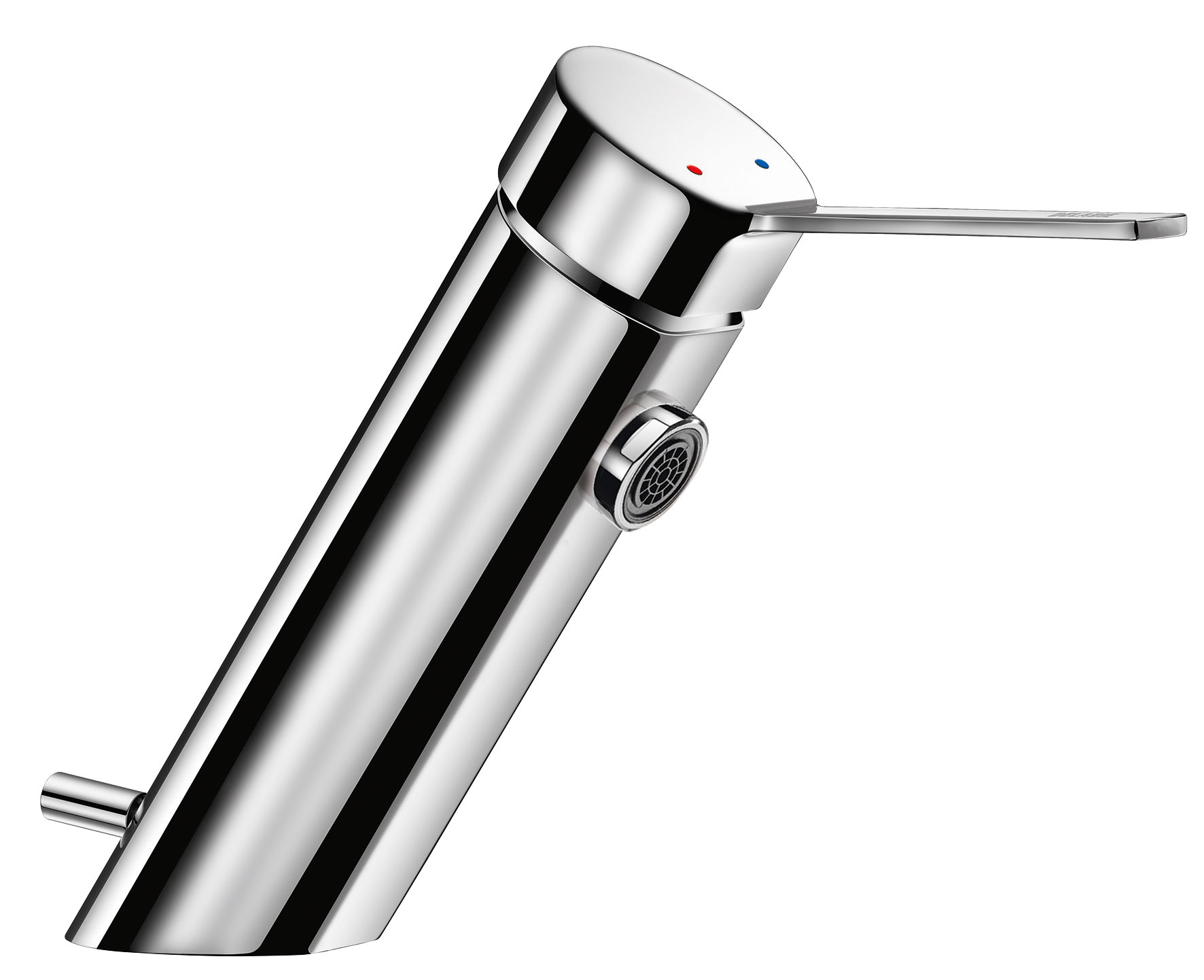

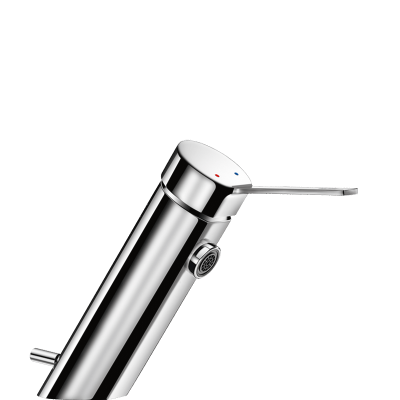

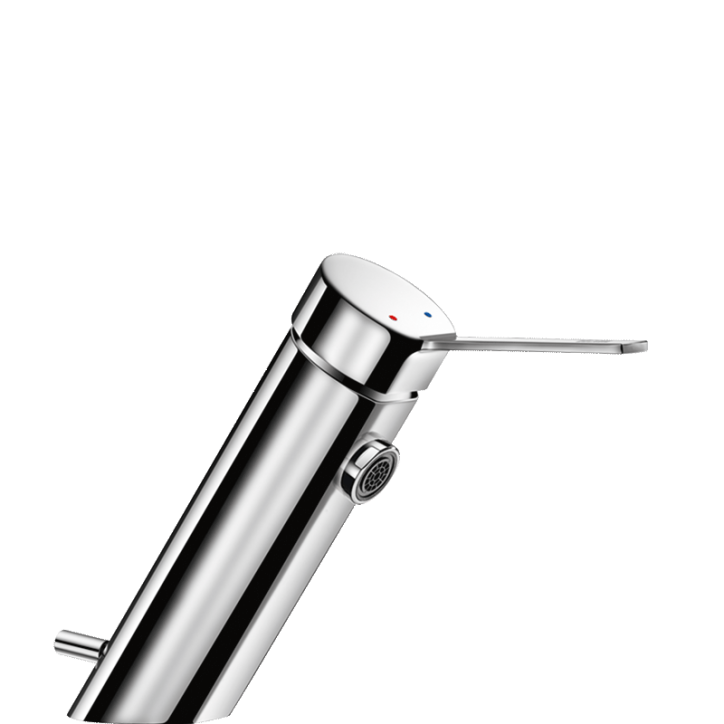

SECURITHERM EP BIOSAFE pressure balancing basin mixer
Ref. 2620EP
Deck-mounted mechanical basin mixer with pressure-balancing.
Single hole mechanical mixer H. 95mm L. 110mm.

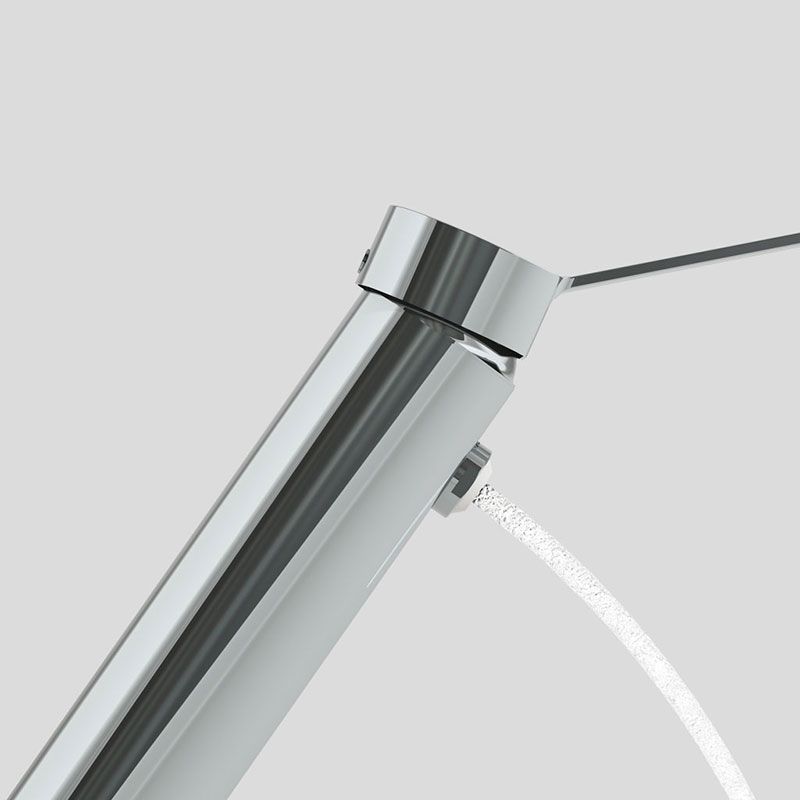

No spout: hygienic flw straighteners integrated into the body.

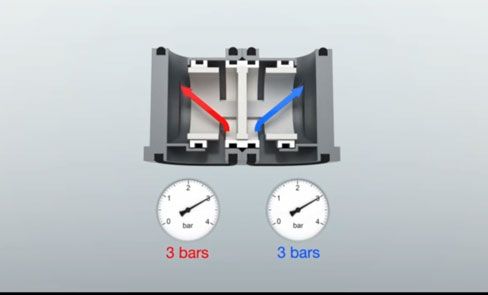

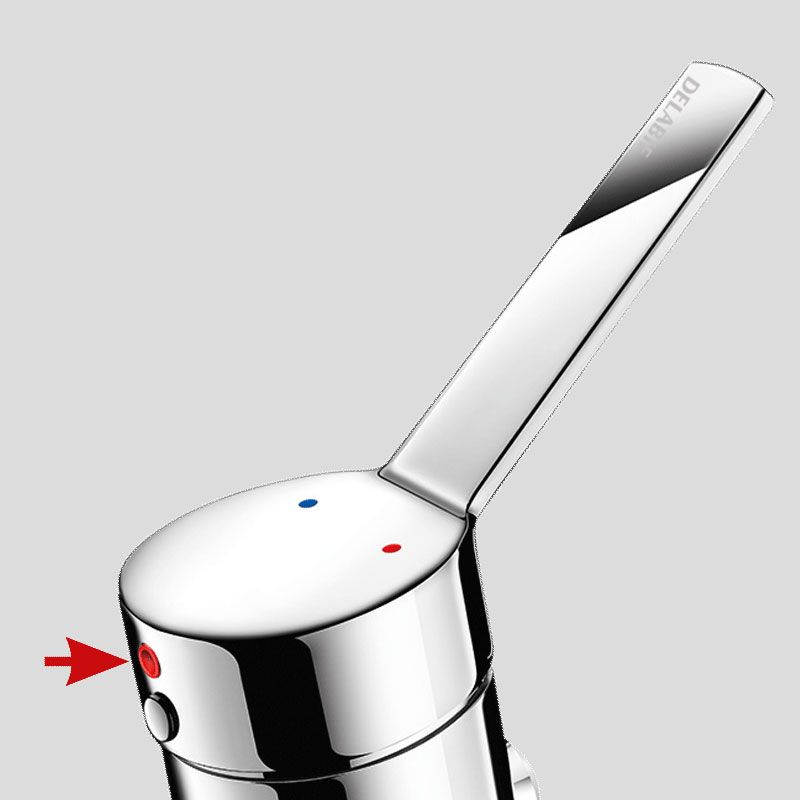

Ø 35mm ceramic cartridge with pressure-balancing and pre-set maximum temperature limiter.
Anti-scalding safety: HW flow rate is reduced if CW supply fails.
Stable temperature regardless of pressure and flow rate variations in the system.
Securitouch thermal insulation prevents burns.
Thermal shocks are possible without removing the control lever or shutting off the cold water supply.
Mixer body with smooth interior and very low water volume (reduces bacterial development).
Flow rate limited to 4 lpm at 3 bar.
Solid control lever.
Ergonomic, brass pop-up waste 1 1/4".
PEX flexibles F3/8" with rotating unions, filters and non-return valves.
Fixing reinforced by two stainless steel rods.
Mechanical mixer with SECURITHERM pressure-balancing ideal for healthcare facilities, retirement and care homes, hospitals and clinics.

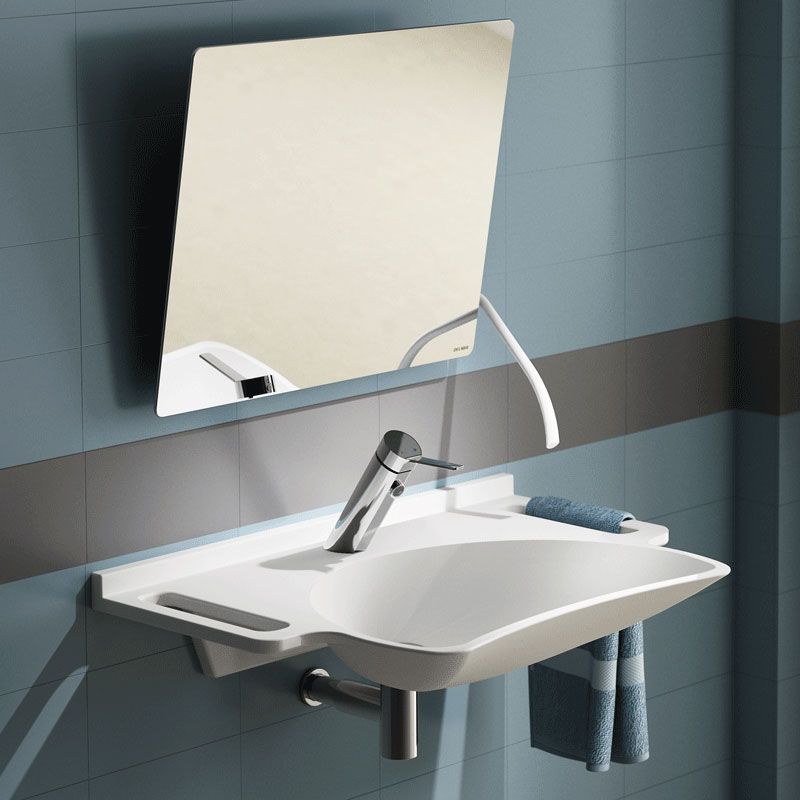

Single hole mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.
Advantages
HW flow rate reduced if CW fails
Maximum hygiene: mixer with no spout
Thermal shock function without removing the lever
Hygiene: mixer body with very low water volume
SECURITHERM EP BIOSAFE pressure balancing basin mixer
Ref. 2620EP
Connector
F3/8"
Technology
SECURITHERM EP BIOSAFE mechanical mixer

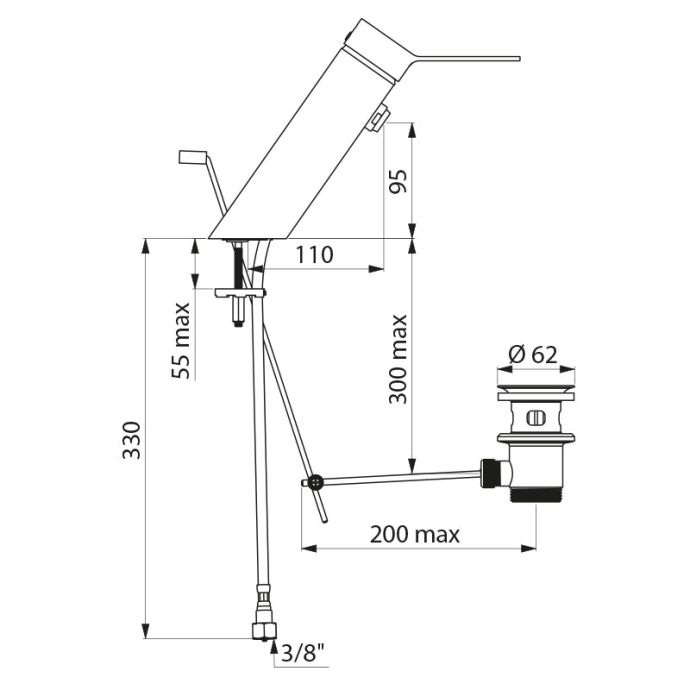

Height
180mm
Length
220mm
Drop height
95mm
Spout length
110mm
Flow rate
4 lpm at 3 bar
Temperature limiter
Yes
Certificates
Warranty
Repairability
SECURITHERM EP BIOSAFE pressure balancing basin mixer
Ref.
2620EP
