Ref. 2620MINI
Single hole mechanical mixer with no spout H. 50mm L. 80mm
10 variants
2621LF -
Classic cartridge - without pop-up waste - H.95 L.110 - Flexibles - lead-free version
2621EP -
EP cartridge - no pop-up waste - H. 95mm L. 110mm - Flexibles
26216EP -
EP cartridge - no pop-up waste - H. 95mm L. 110mm - Copper tails
2620EP -
EP cartridge - pop-up waste - H. 95mm L. 110mm - Flexibles
2621MINIEP -
EP cartridge - no pop-up waste - H. 50mm L. 80mm - Flexibles
2620MINIEP -
EP cartridge - pop-up waste - H. 50mm L. 80mm - Flexibles
2621 -
Standard cartridge - no pop-up waste - H. 95mm L. 110mm - Flexibles
26216 -
Standard cartridge - no pop-up waste - H. 95mm L. 110mm - Copper tails
2621MINI -
Standard cartridge - no pop-up waste - H. 50mm L. 80mm - Flexibles
2620 -
Standard cartridge - pop-up waste - H. 95mm L. 110mm - Flexibles
BIOSAFE mechanical basin mixer
Ref. 2620MINI

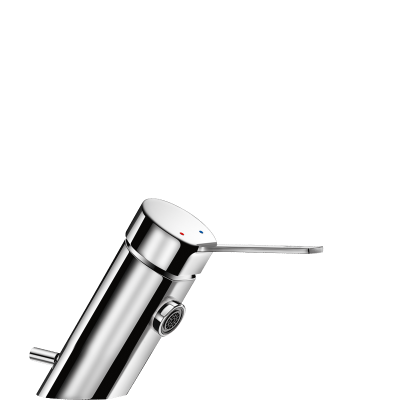

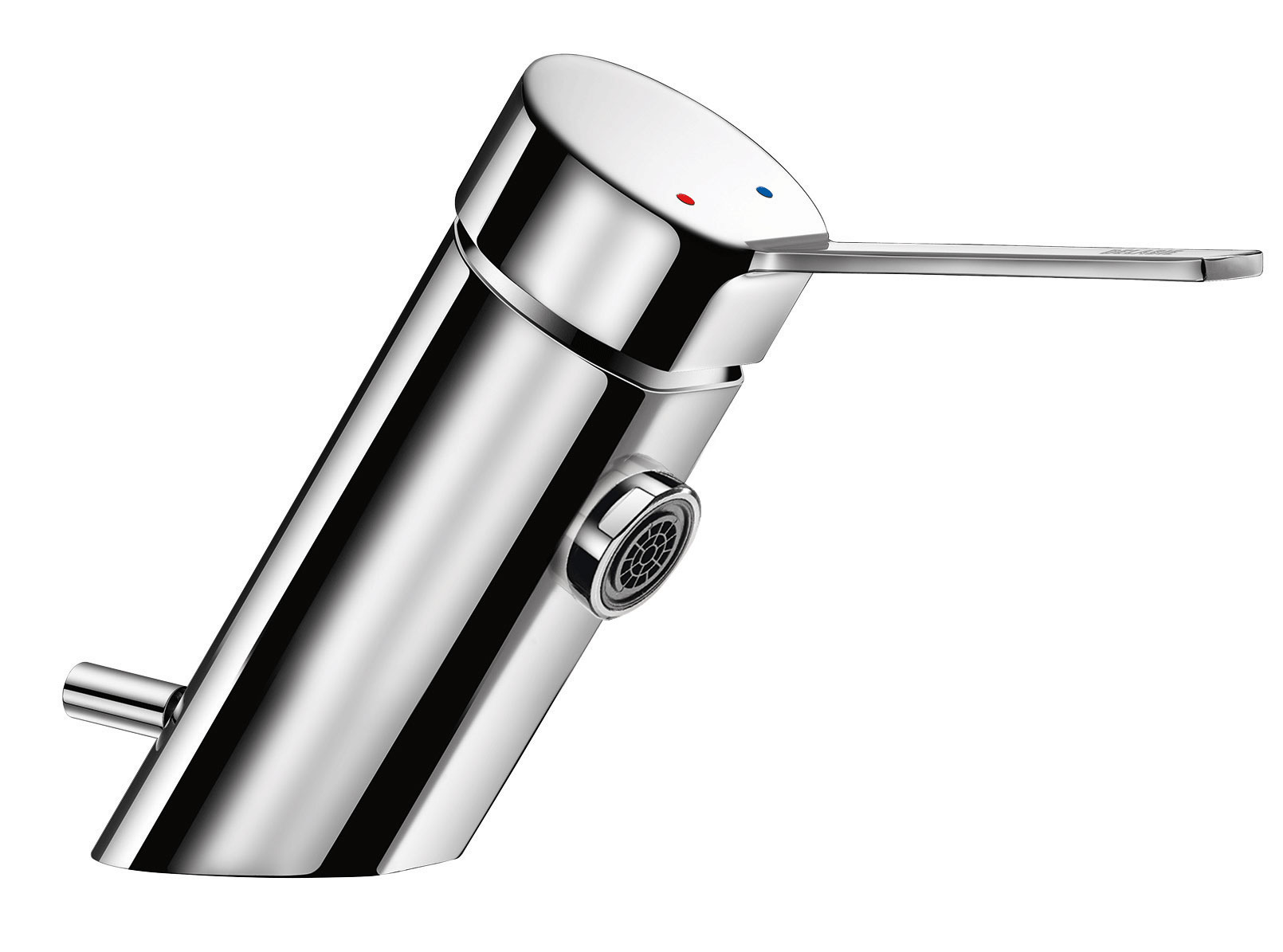

Deck-mounted mechanical basin mixer.
Single hole mechanical mixer H. 50mm L. 80mm.

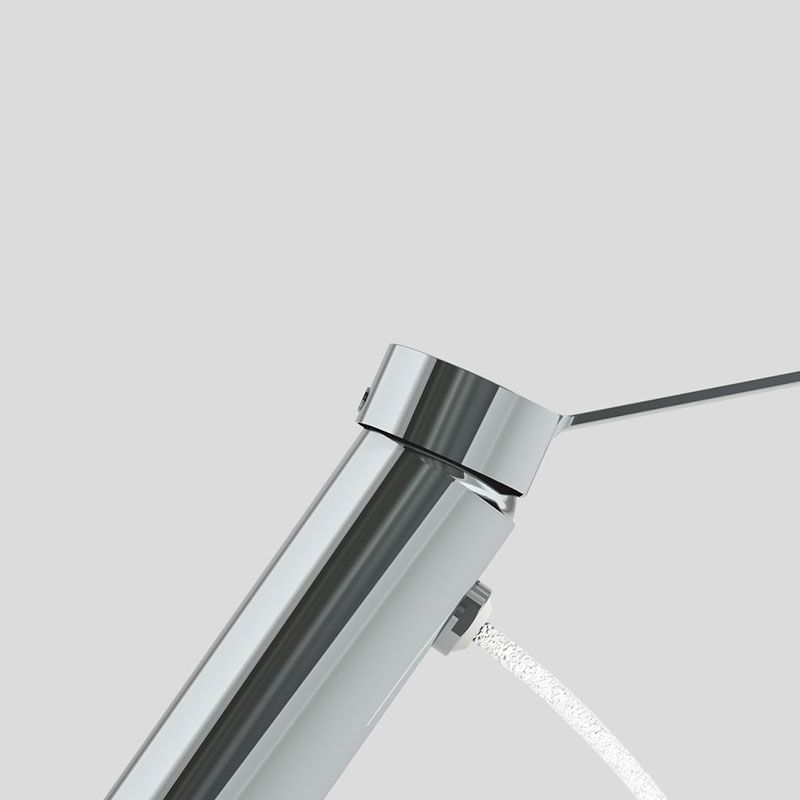

No spout: hygienic flow straightener integrated into the body.

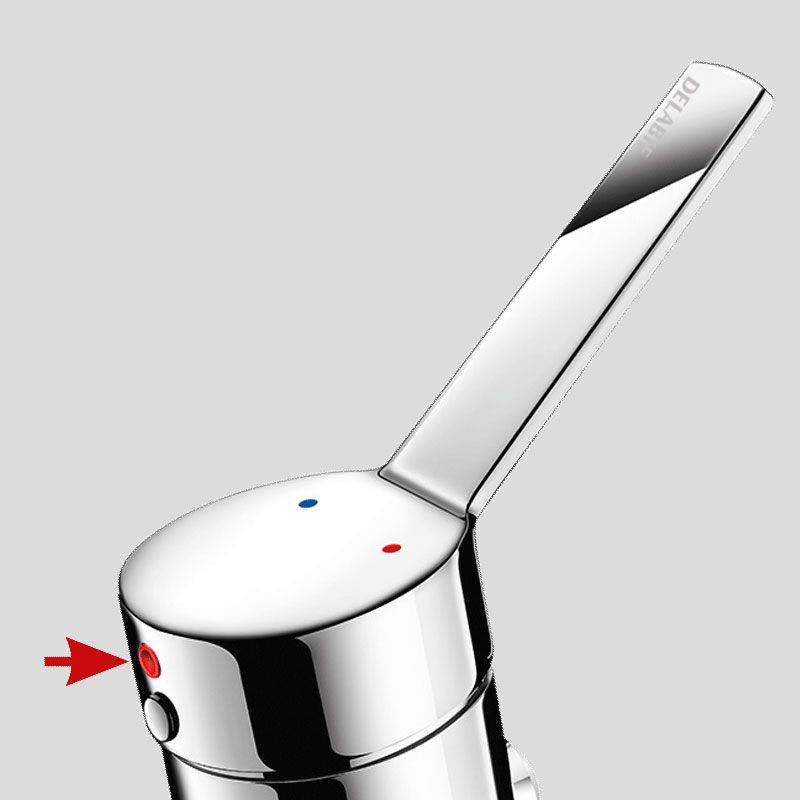

Securitouch thermal insulation prevents burns.
Ø 35mm ceramic cartridge with pre-set maximum temperature limiter.
No risk of cross flow between the hot and cold water.
No non-return valves on the inlets.
Thermal shocks are possible without removing the control lever or shutting off the cold water supply.

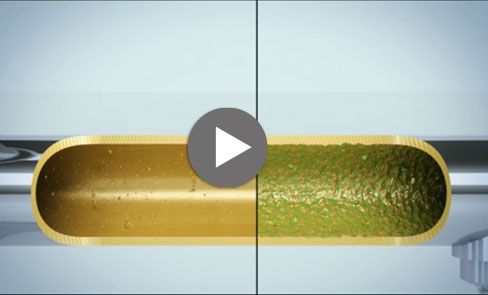

Mixer body with smooth interior and very low water volume (reduces bacterial development).
Flow rate regulated at 4 lpm.
Solid control lever.
Chrome-plated stainless steel body.
Ergonomic pop-up waste 1 1/4" in brass.
PEX flexibles F3/8", rotating unions.
Fixing reinforced by two stainless steel rods.
Mechanical mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Suitable for people with reduced mobility.
Mixer with 30-year warranty.
Single hole mechanical mixer H. 50mm L. 80mm.
No spout: hygienic flow straightener integrated into the body.
Securitouch thermal insulation prevents burns.
Ø 35mm ceramic cartridge with pre-set maximum temperature limiter.
No risk of cross flow between the hot and cold water.
No non-return valves on the inlets.
Thermal shocks are possible without removing the control lever or shutting off the cold water supply.
Mixer body with smooth interior and very low water volume (reduces bacterial development).
Flow rate regulated at 4 lpm.
Solid control lever.
Chrome-plated stainless steel body.
Ergonomic pop-up waste 1 1/4" in brass.
PEX flexibles F3/8", rotating unions.
Fixing reinforced by two stainless steel rods.
Mechanical mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Suitable for people with reduced mobility.
Mixer with 30-year warranty.
Advantages
BIOSAFE mechanical basin mixer
Ref. 2620MINI
Connector
F3/8"
Technology BIOSAFE mechanical mixer

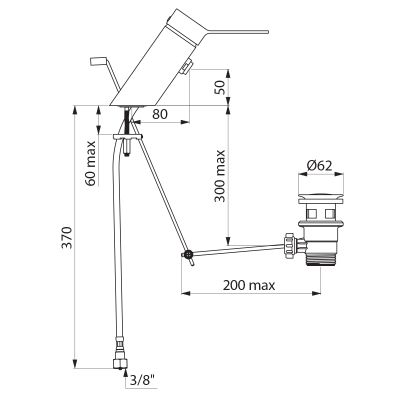

Drop height 50mm
Spout length 80mm
Flow rate 4 lpm
Temperature limiter Yes
Certificates
Warranty
Repairability
Technology BIOSAFE mechanical mixer
Drop height 50mm
Spout length 80mm
Flow rate 4 lpm
Temperature limiter Yes
Certificates
Warranty
Repairability
BIOSAFE mechanical basin mixer
Ref. 2620MINI
To download one or several documents linked to this product, please select the type of file you require
BIOSAFE mechanical basin mixer
Ref. 2620MINI
After 05/2024:
Infection control: mixer with smooth interior and no spout
