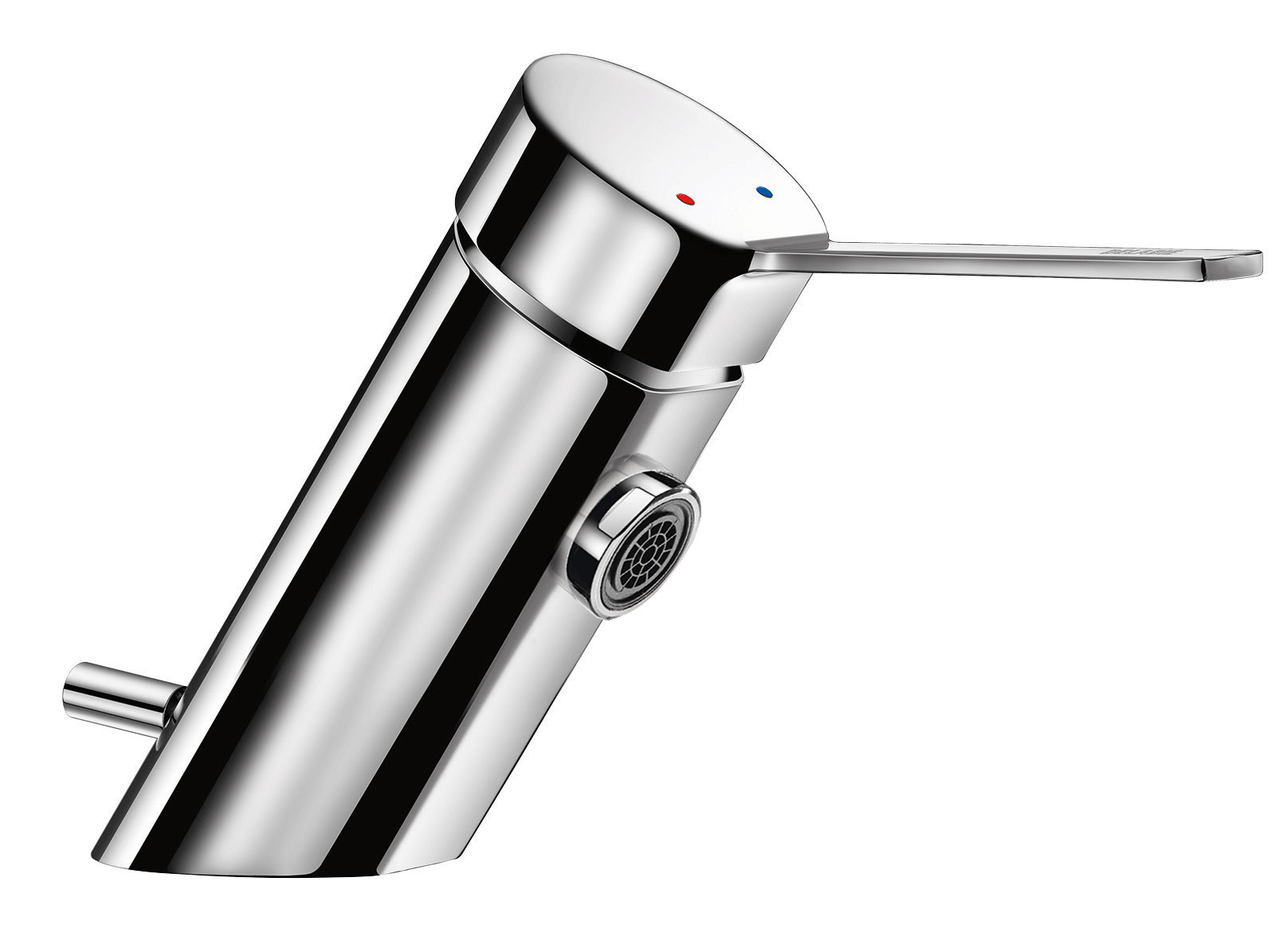

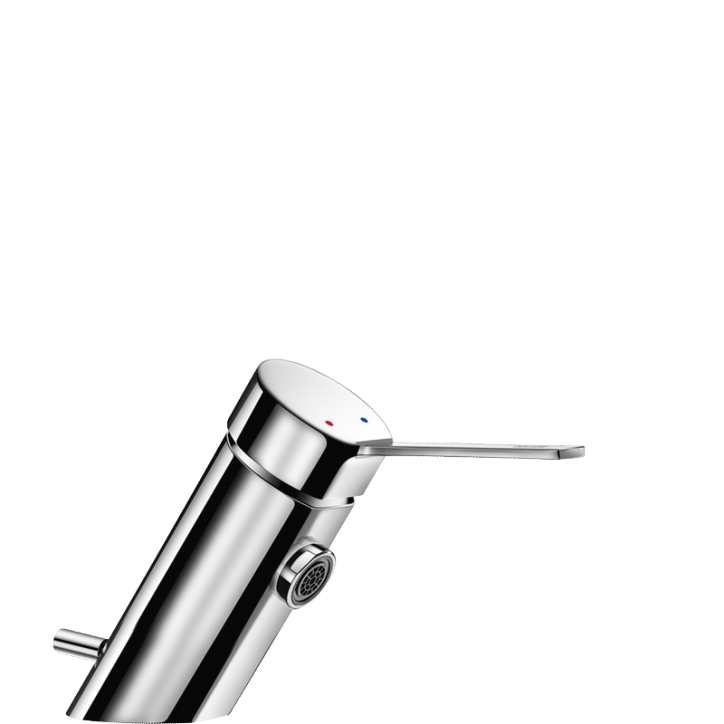

SECURITHERM EP BIOSAFE pressure-balancing basin mixer
Ref. 2620MINIEP
Deck-mounted mechanical basin mixer with pressure-balancing.
Single hole mechanical mixer H. 50mm L. 80mm.

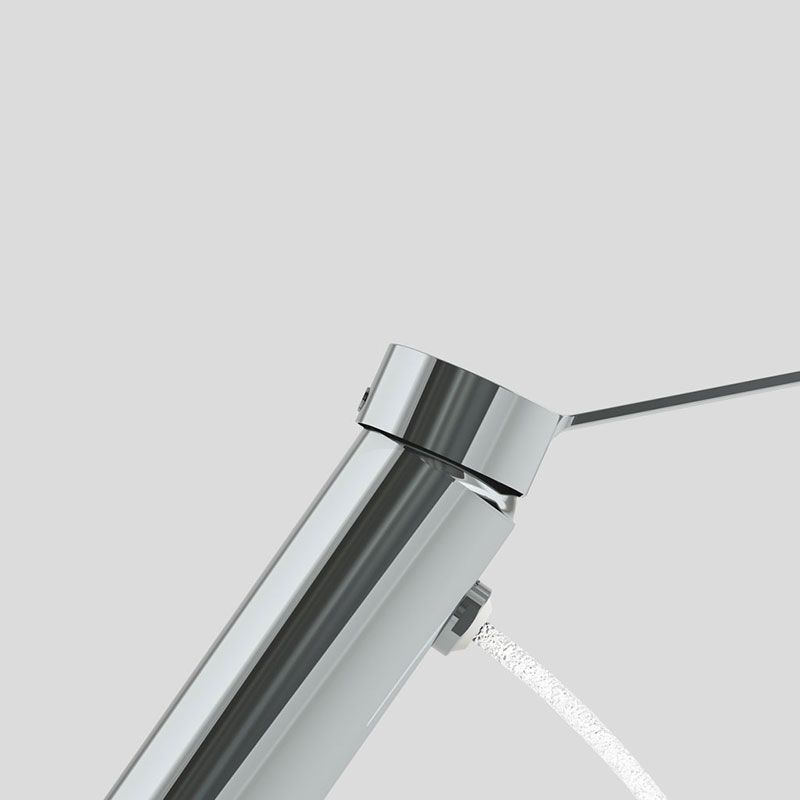

No spout: hygienic flow straightener integrated into the body.

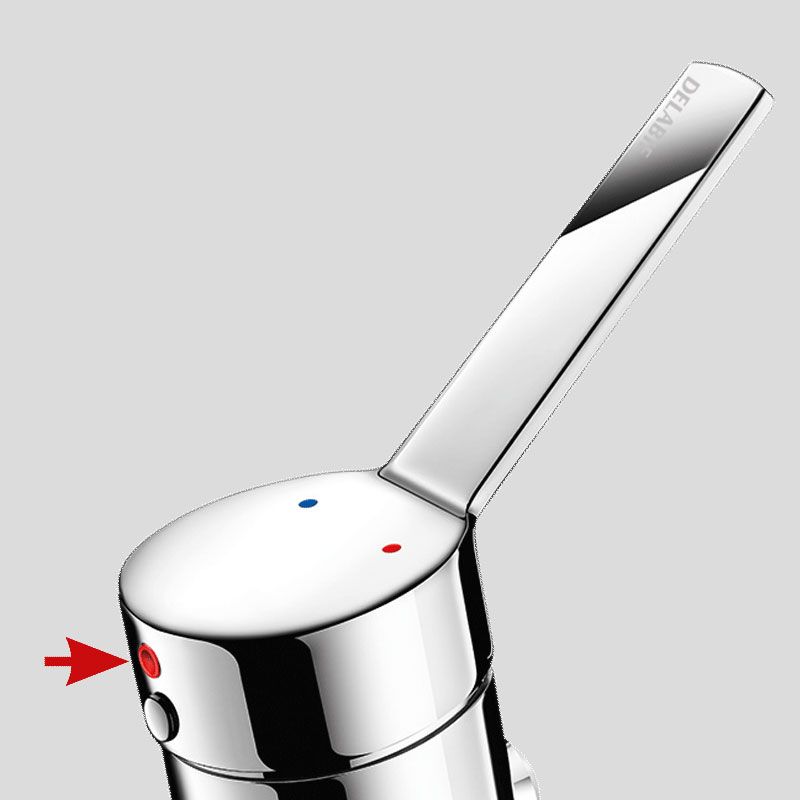

Ø 35mm ceramic cartridge with pressure-balancing and pre-set maximum temperature limiter.

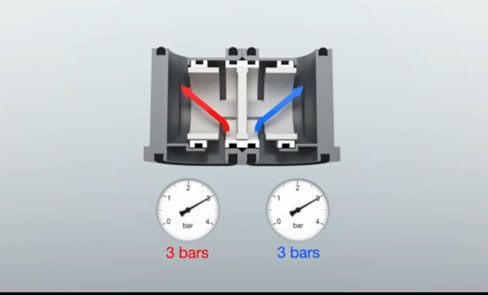

Anti-scalding safety: HW flow rate is reduced if CW supply fails (and vice versa).
Stable temperature regardless of pressure and flow rate variations in the system.
Securitouch thermal insulation prevents burns.
Thermal shocks are possible without removing the control lever or shutting off the cold water supply.
Mixer body with smooth interior and very low water volume (reduces bacterial development).
Flow rate limited to 4 lpm at 3 bar.
Solid control lever.
Ergonomic pop-up waste 1 1/4" in brass.
F3/8" PEX flexibles with rotating unions, filters and non-return valves.
Fixing reinforced via two stainless steel rods.
Mechanical mixer with SECURITHERM pressure-balancing ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Single hole mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.
Advantages
HW flow rate reduced if CW fails
Maximum hygiene: mixer with no spout
Thermal shocks are possible without removing lever
Hygiene: mixer body with very low water volume
SECURITHERM EP BIOSAFE pressure-balancing basin mixer
Ref. 2620MINIEP
Connector
F3/8"
Technology
SECURITHERM EP BIOSAFE mechanical mixer

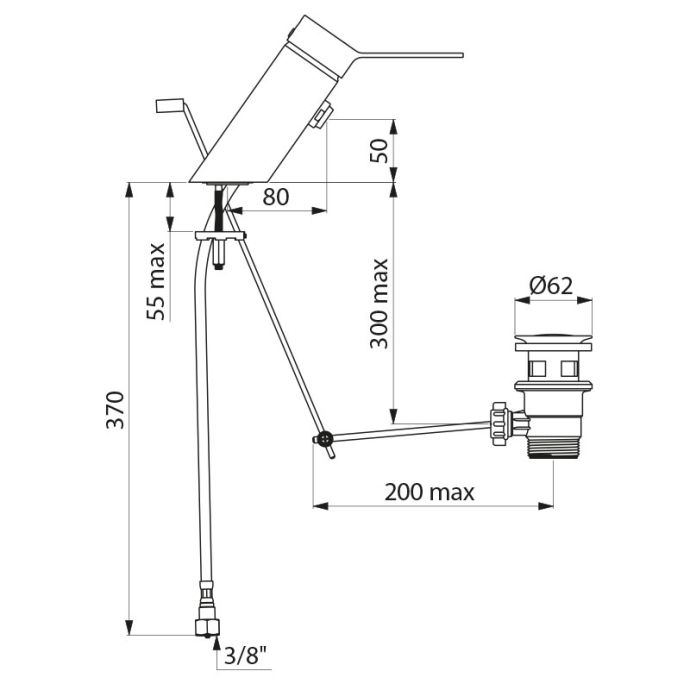

Drop height
50mm
Spout length
80mm
Flow rate
4 lpm at 3 bar
Temperature limiter
Yes
Certificates
Warranty
Repairability
SECURITHERM EP BIOSAFE pressure-balancing basin mixer
Ref.
2620MINIEP
To download one or several documents linked to this product, please select the type of file you require
