BIOSAFE sequential mechanical basin mixer

Ref. 2664T1
Tall single hole sequential mixer H. 160mm L. 160mm
BIOSAFE sequential mechanical basin mixer

Presentation

DESCRIPTION

BIOSAFE sequential mechanical basin mixer

Ref. 2664T1
Provisional availability 2nd half
2024
.
Please contact the sales office to check availability.
Deck-mounted tall mechanical basin mixer.
Sequential mechanical mixer: opens and closes with cold water over a range of 70°.
Single hole mixer with swivelling spout H. 160mm L. 160mm.
Tall mixer with BIOSAFE hygienic outlet suitable for fitting a BIOFIL terminal filter.
Ø 35 sequential ceramic cartridge with pre-set maximum temperature limiter.
Spout with internal tube with smooth interior and very low water volume.
The speed of the water inside this tube reduces biofilm development considerably.
Thermal shocks are possible without removing the control lever or shutting off the cold water supply.
Body with very volume of water (no niches where bacteria can develop).
Flow rate regulated at 5 lpm.
Hygiene control lever L. 200mm requires no manual contact.
Rotating PEX flexibles F3/8".
No risk of cross flow between the hot and cold water.
No non-return valves on the inlets.
Fixings reinforced by 2 stainless steel rods.
Mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Mixer suitable for people with reduced mobility.
30-year warranty.

ADVANTAGES

Confort - Ergonomie - Déclenchement souple

Sequential: opens/closes with cold water

Sécurité anti-brûlure

Thermal shock without removing the control lever

Hygiène - Anti-bactérien - BIOSAFE

Maximum hygiene: controls biofilm

Confort - Ergonomie - Déclenchement souple

No manual contact: Hygiene control lever

Characteristics

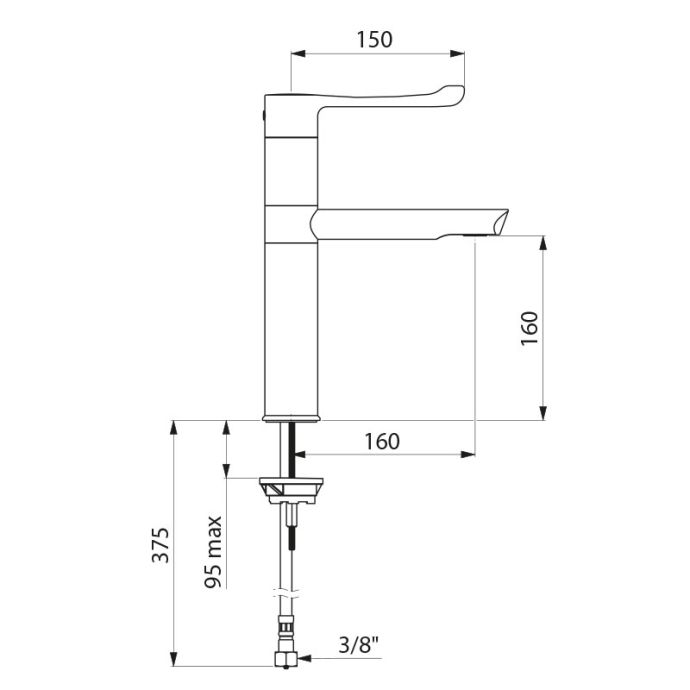

TECHNICAL CHARACTERISTICS

BIOSAFE sequential mechanical basin mixer

Ref. 2664T1
Supply 3/8"
Technology Sequential mechanical mixer
Drop height 160mm
Spout length 160mm
Flow rate 5 lpm
Temperature limiter Yes
Finish Chrome-plated brass
Warranty 30-Year

Downloads

DOWNLOADS

BIOSAFE sequential mechanical basin mixer

Ref. 2664T1

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

2665T5 Fixed spout H. 200mm L. 200mm
2664T5 Swivelling spout H. 200mm L. 200mm
2665T1 Fixed spout H. 160mm L. 160mm
2664T2 Swivelling spout H. 160mm L. 250mm
Ergonomic: mixer opens and closes with cold water
Ergonomic: mixer opens and closes with cold water

VARIANTS

2665T5 Fixed spout H. 200mm L. 200mm
2664T5 Swivelling spout H. 200mm L. 200mm
2665T1 Fixed spout H. 160mm L. 160mm
2664T2 Swivelling spout H. 160mm L. 250mm
Ergonomic: mixer opens and closes with cold water
Ergonomic: mixer opens and closes with cold water
